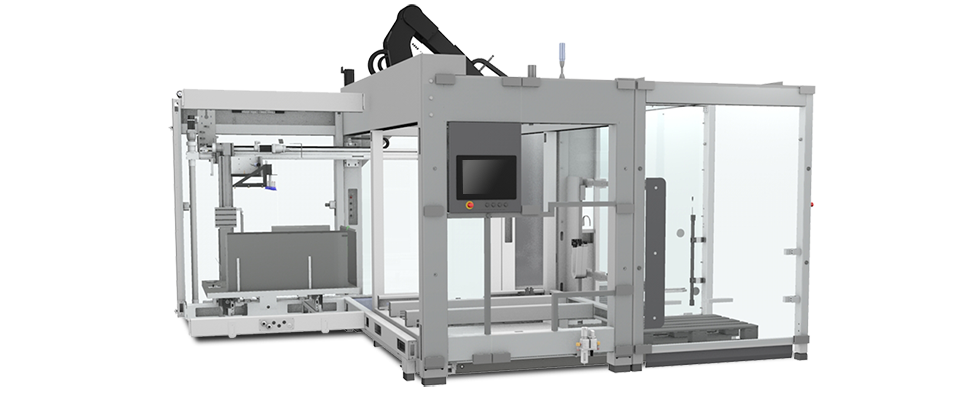

PALLETIZER 5 axes
PEWO-pal 5.4 Compact
Benefits

  • New generation of human-machine communication
  • Interactive 3D visualization (patent pending)
  • Intuitive machine operation via 15" multi-touch display
  • Modern compact GMP pharma design
  • Doors made of safety glass with soft closing function: durable, antistatic, scratch-proof
  • Transparent control cabinet with LED lighting
  • Customized solution depending on installation situation
  • Efficient: pallet change without line downtime
  • Pre-defined interfaces for integration of Track & Trace system
  • Simple integration of external systems such as cameras, labelers, checkweighers and pallet stretchwrappers on request
  • Innovative labeling technology
  • Robotics: pester pac robot P 15
  • Prepared for automatic format changeover
  • RFID format part detection on request
  • Simple, reproducible format changeover
  • New, intelligent safety concept
  • Prepared for connection to AGV systems
    • Machine dimensions3500 x 2800 x 3250 mm [LxWxH]
    Features4 pallet stations
    Min. format rangecase 230 x 230 x 170 mm [L x W x H]
    Max. format rangecase 600 x 400 x 400 mm [L x W x H]
    Performanceup to 6 palletizing cycles/min.
    Control systemSchneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)
    Pallet size1200 x 800 mm - 1220 x 1016 mm (48" x 40")
    Max. palletizing height1400 mm (including pallet)
    Application
    Technology
    Action
    Layout
    SYSTEM / DETAILS

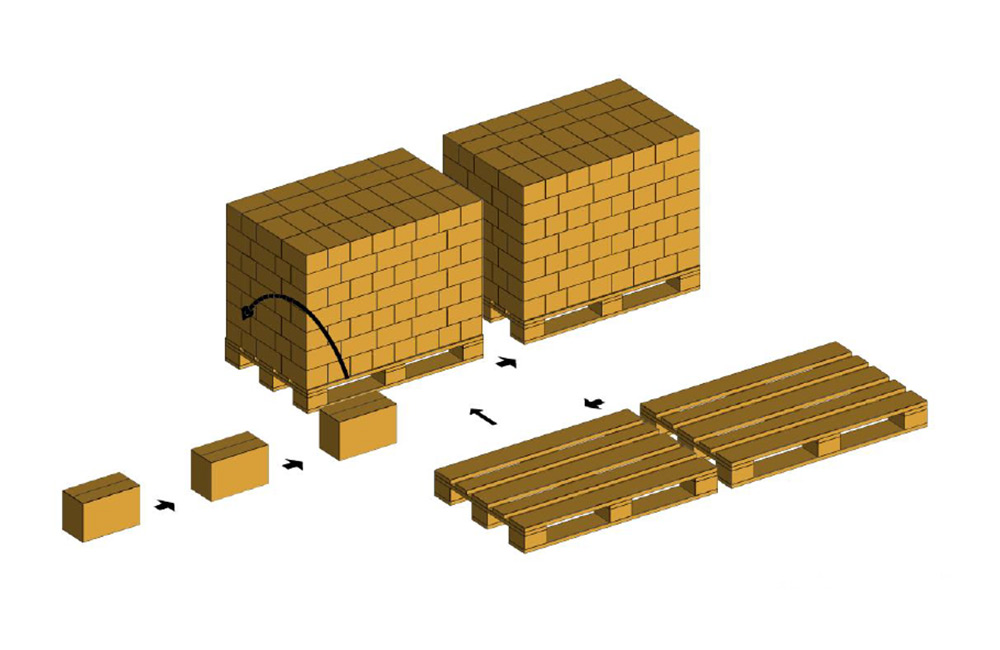

    Product flow PAL
    Case infeed section
    Pick &Place
    Robot unit
