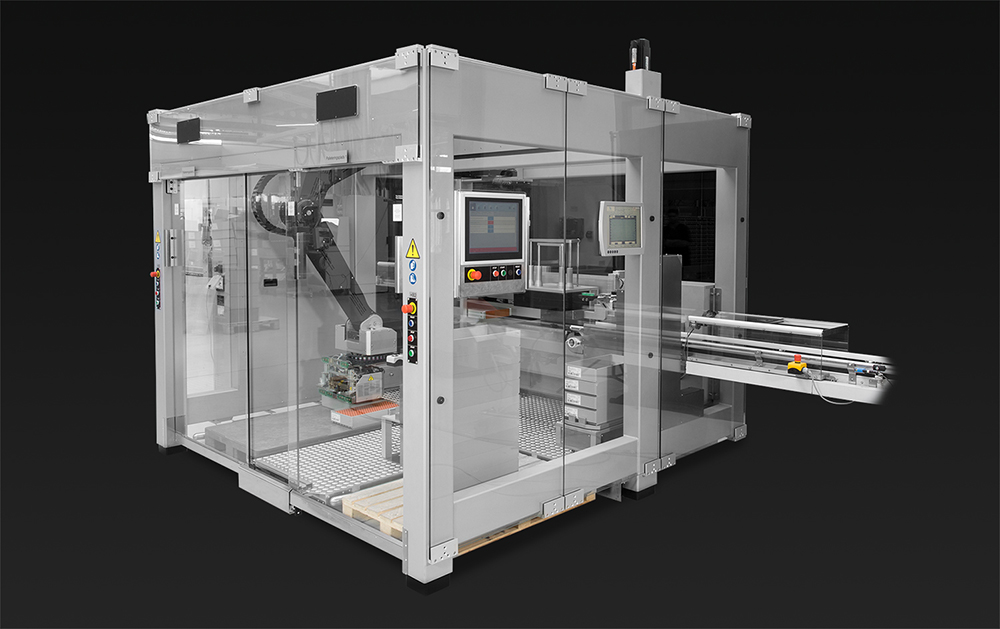

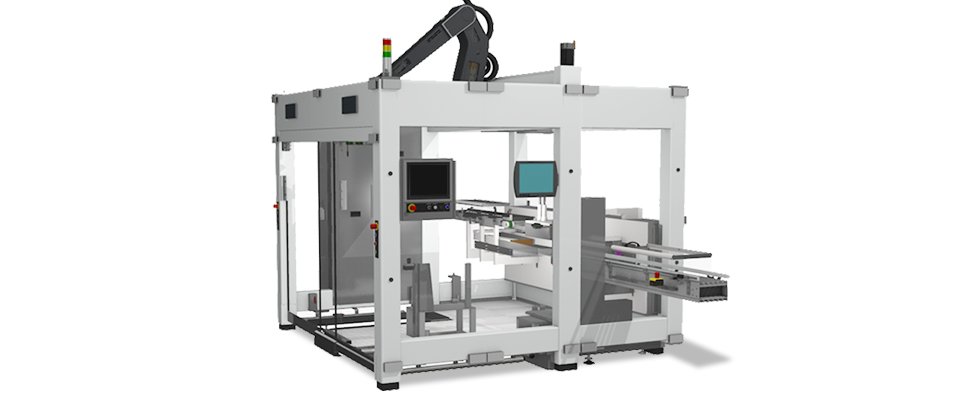

DEPALLETIZER 5 axes
PEWO-depal 5 Compact
Benefits

  • Fully automated depalletizing, product handling and palletizing

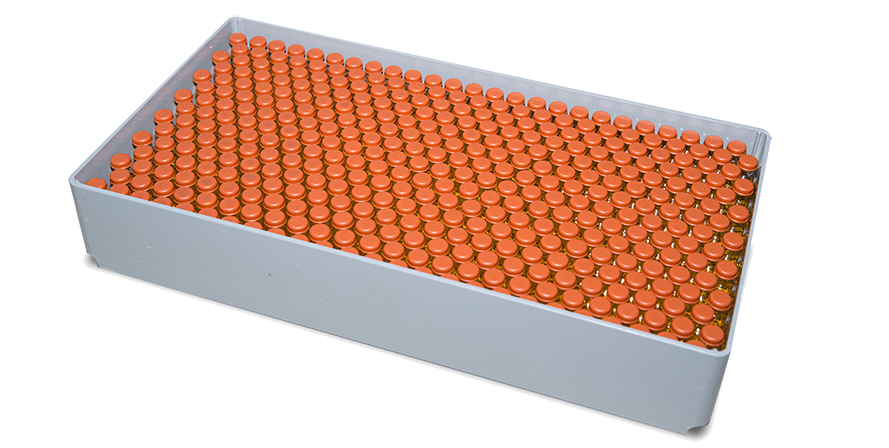

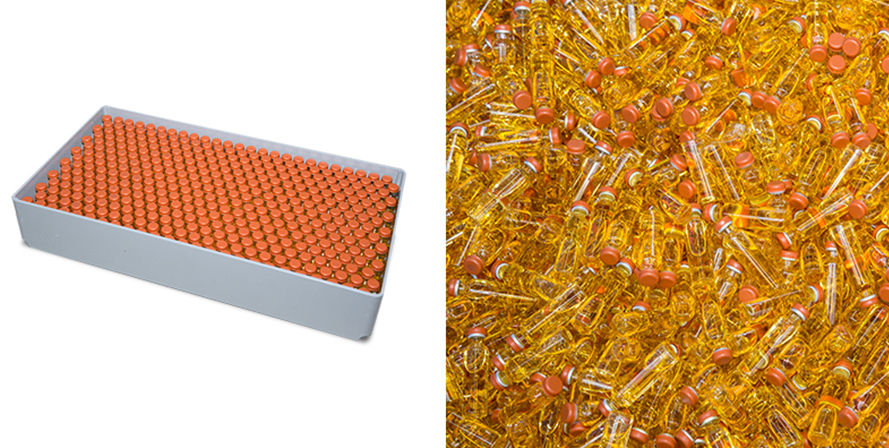

  • High-precision handling of pharmaceuticals

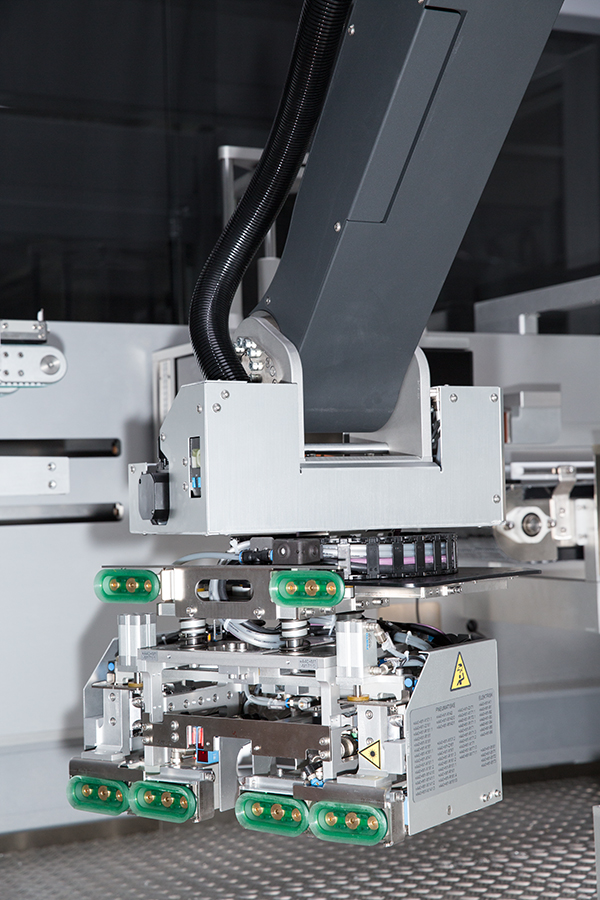

  • Innovative gripper technology

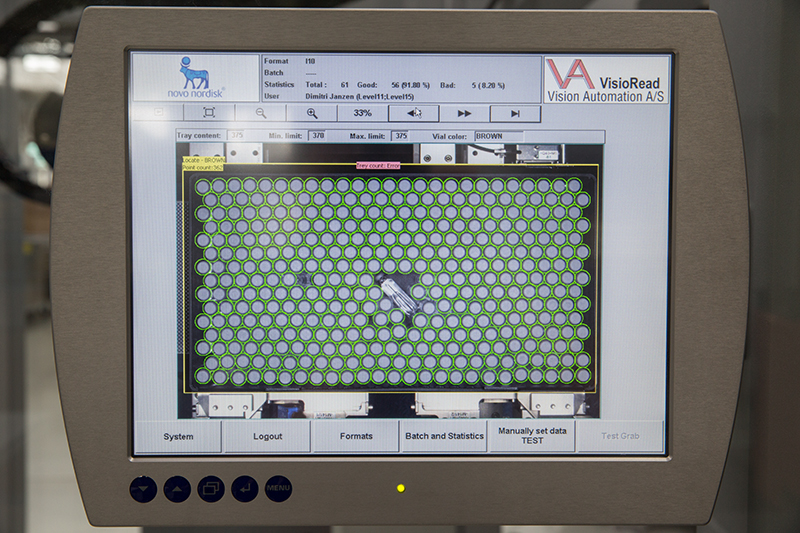

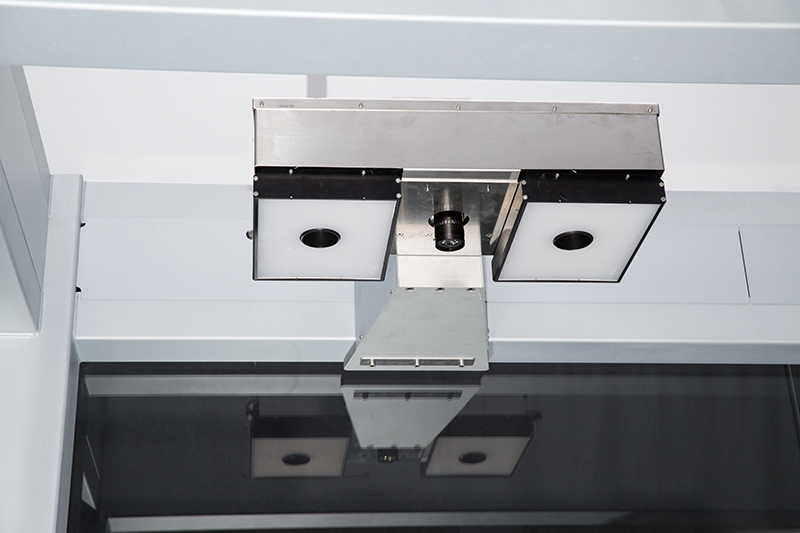

  • Reliable position detection via camera system
  • Robotics: pester pac robot P 15
  • Efficient - constant operation even during pallet change
  • Pharma-proof - via modern labeling and monitoring systems
  • Compact, modular architecture in GMP design
  • Simple, reproducible format changeover in less than 10 minutes
    • Machine dimensions2870 x 3080 x 3250 mm [LxWxH]
    Ceiling height3250 mm to allow for operating range of robot
    Features2 pallet stations
    Robotpac robot P 15
    No. of robot axes5
    Min. format rangecase 230 x 230 x 90 mm [L x W x H]
    Max. format rangecase 600 x 400 x 400 mm [L x W x H]
    Performanceup to 6 cases or trays/min. / up to 350 vials/ min.

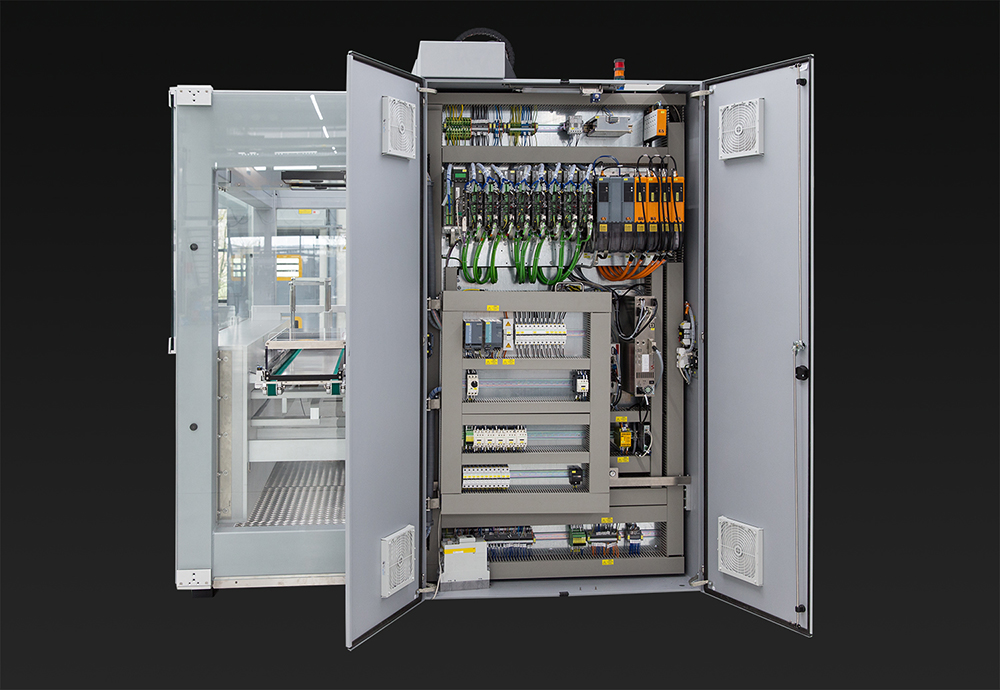

    Control systemSchneider / Rockwell Automation (Allen-Bradley)
    Pallet size1200 x 800 mm - 1220 x 1016 mm (48" x 40")
    Max. palletizing height1400 mm (including pallet)
    Application
    Technology
    Action
    Layout
    SYSTEM / DETAILS

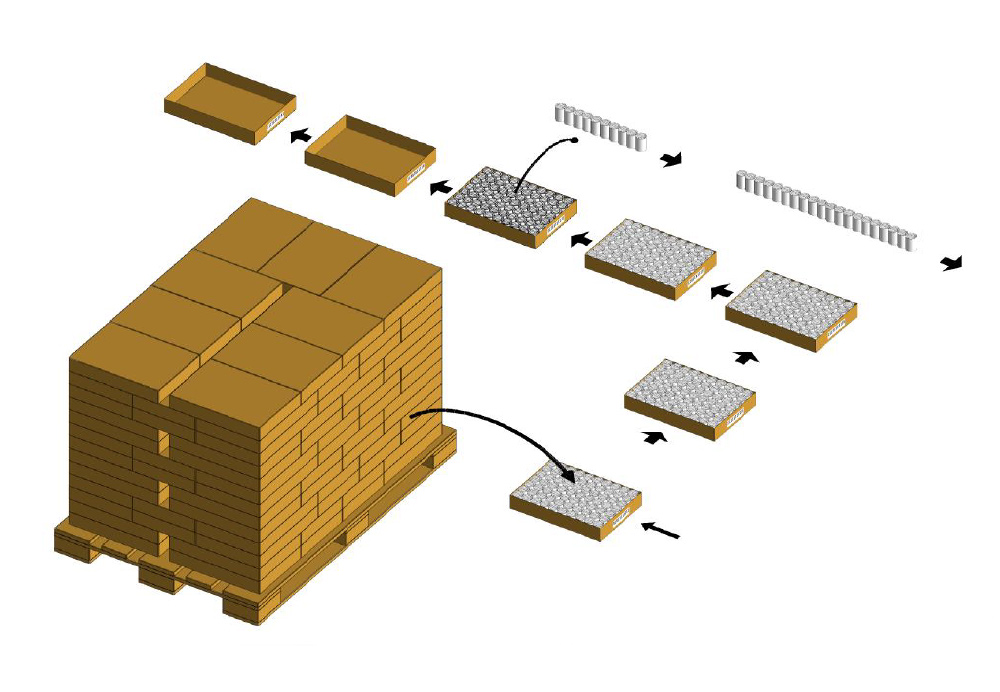

    Product flow PAL

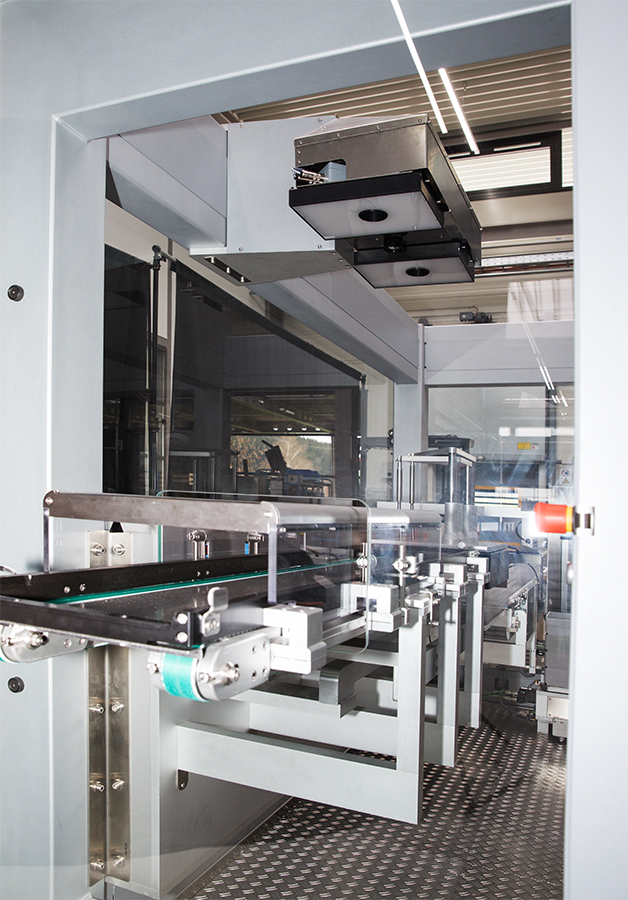

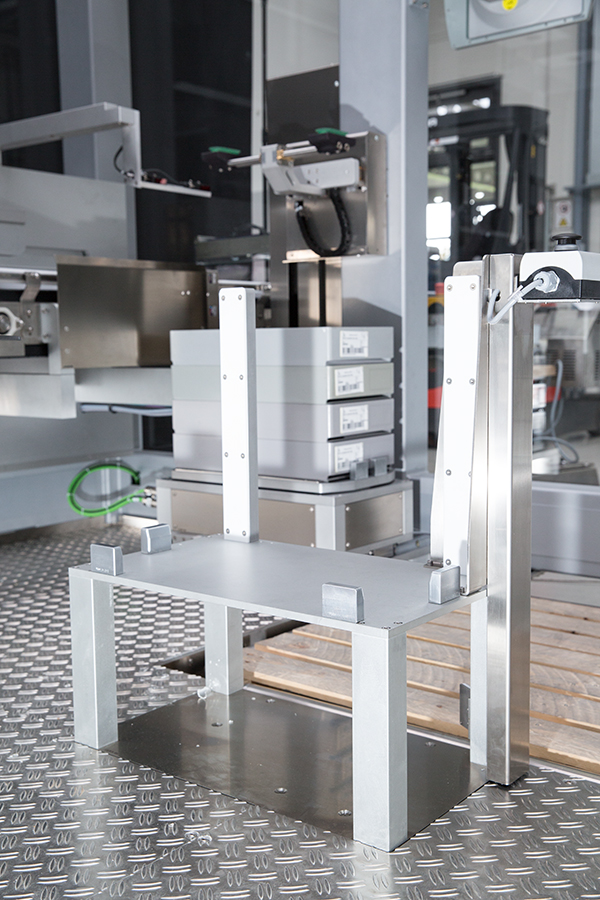

    Case infeed section

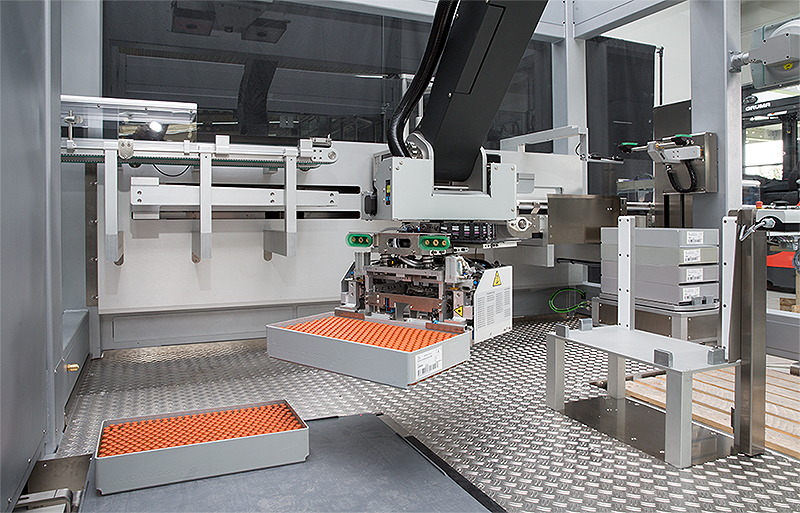

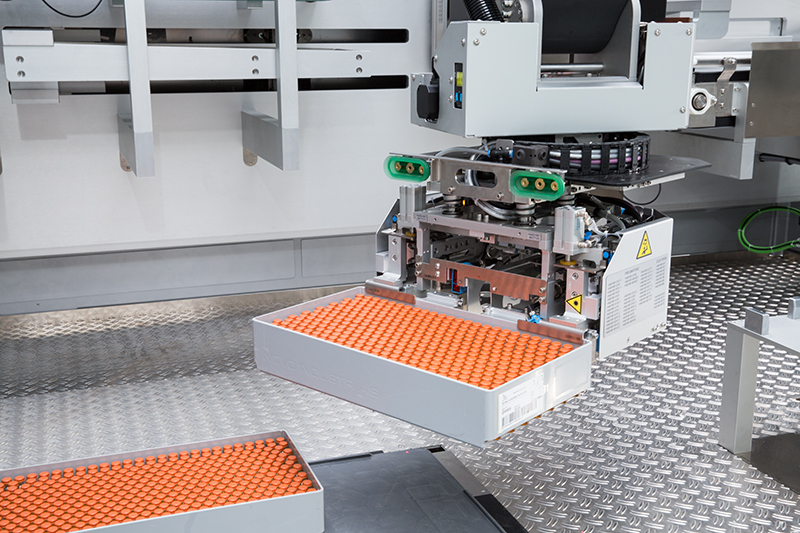

    Pick &Place

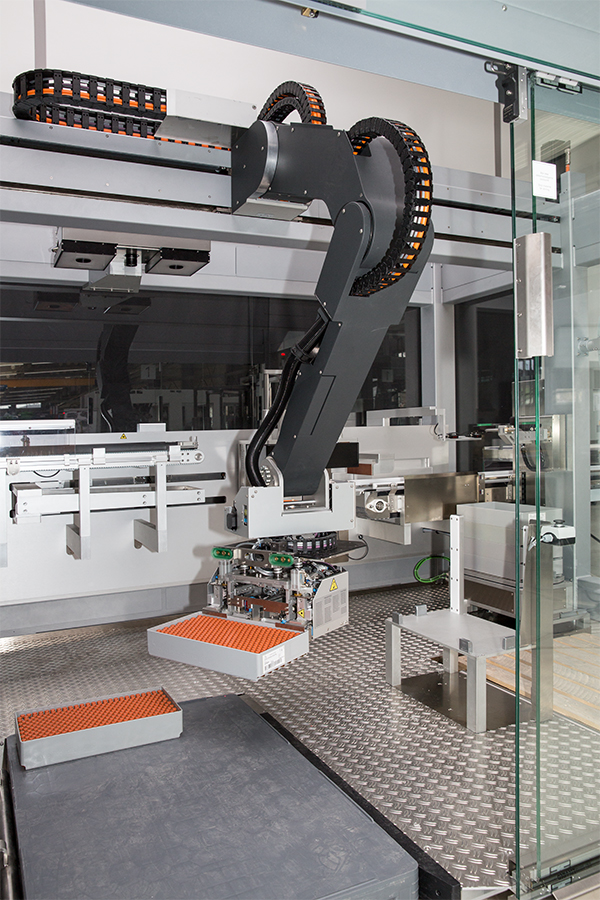

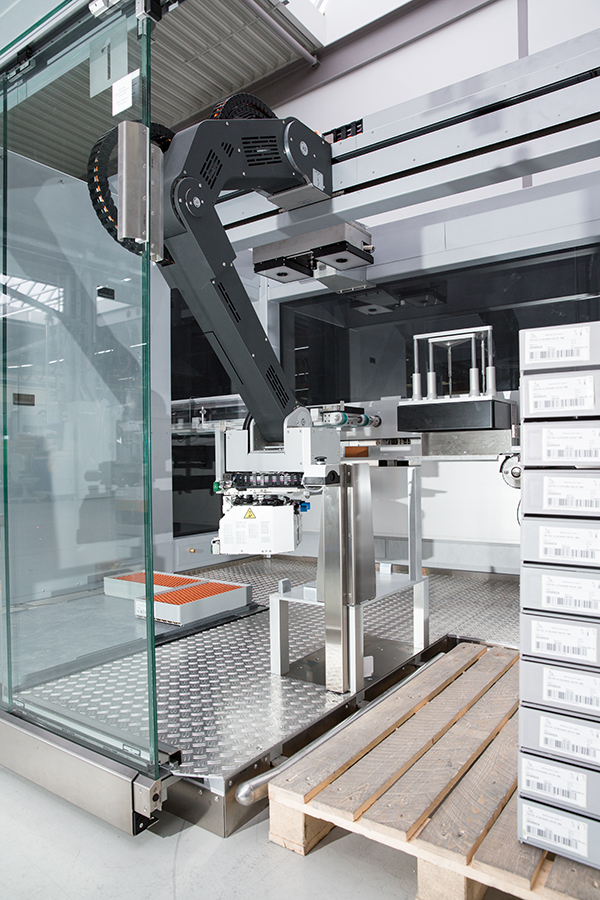

    Robot unit
