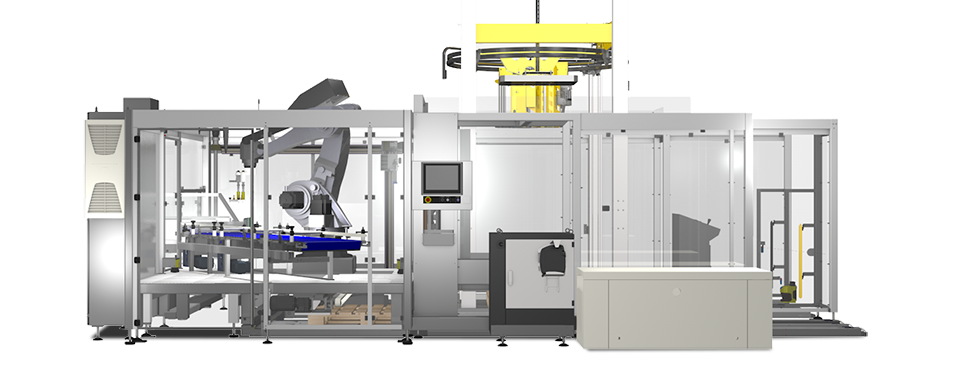

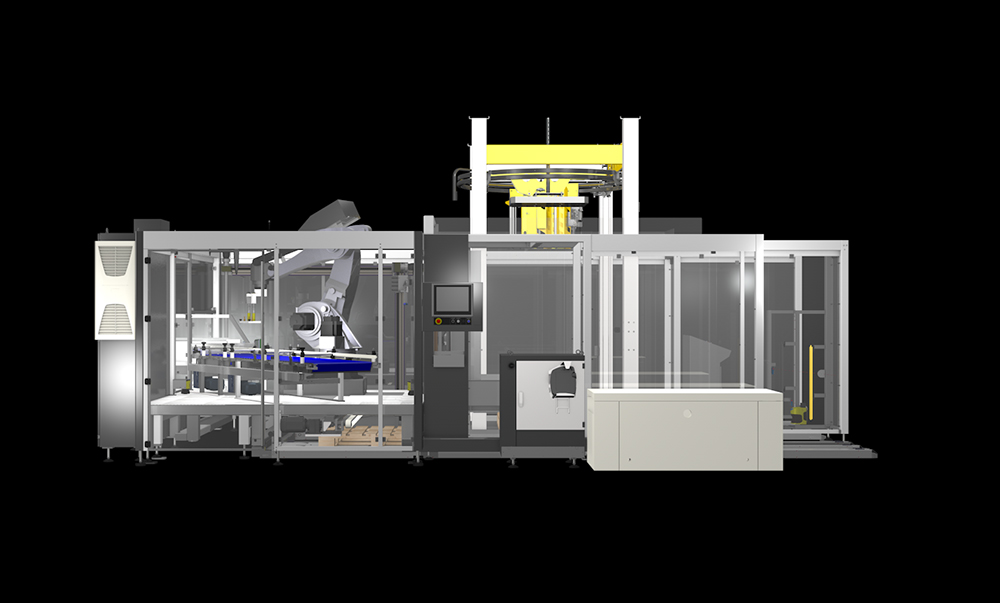

PALLETIZER 5 axes
PEWO-pal 5.4
Benefits

  • Compact pharma-compatible GMP machine design

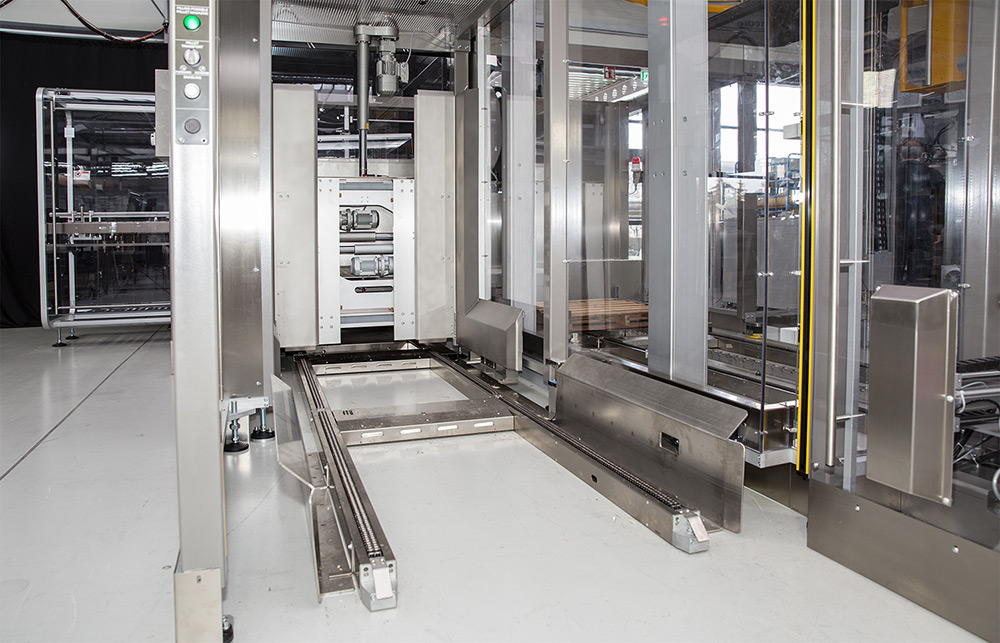

  • Fully automatic pallet handling
  • Efficient - pallet change without line downtime
  • Integrated pallet magazine for up to 10 empty pallets

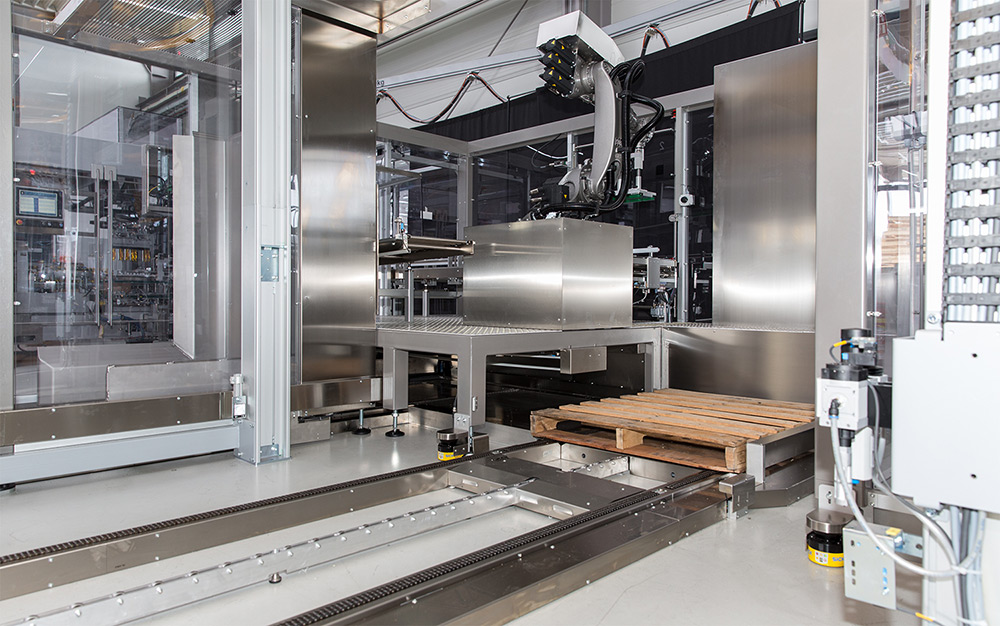

  • Automatic infeed and discharge via chain transport
  • Customized solution depending on installation situation
  • Slip sheet magazine feasible on request
  • Pre-defined interfaces for integration of T&T system
  • Easy integration of external systems such as cameras, labelers, checkweighers and pallet stretch wrappers on request

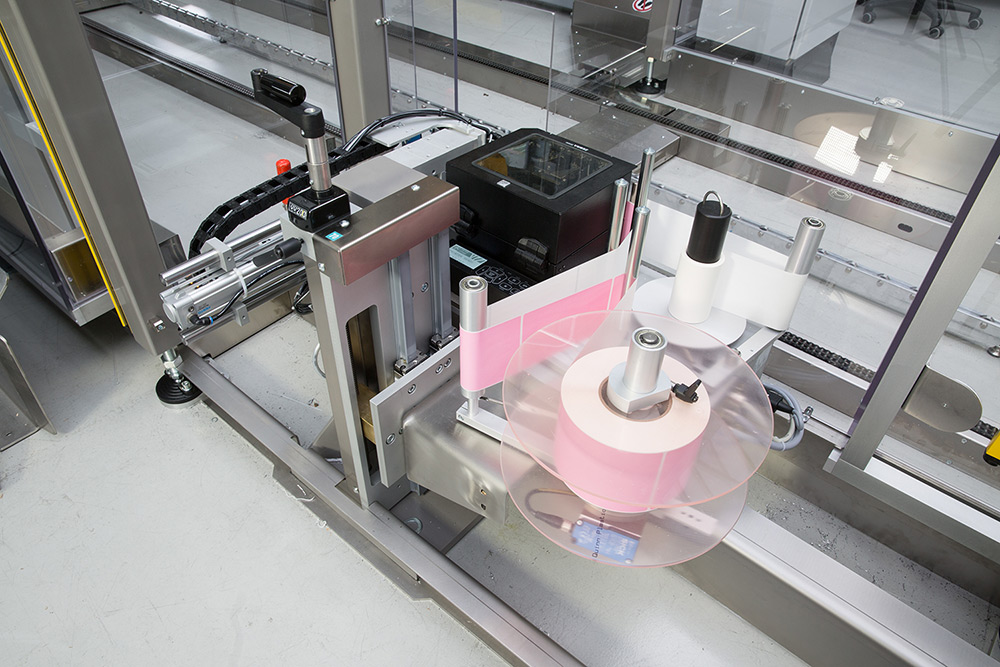

  • Innovative labeling technology
  • Reliable KUKA robot technology in operation thousands of times around the world
  • Prepared for automatic format changeover
  • RFID format part detection on request
  • Simple, reproducible format changeover in less than 10 minutes
    • Machine dimensions3990 x 2980 x 2250 mm [LxWxH]
    Ceiling height2600 mm to allow for operating range of robot
    Features4 pallet station
    RobotKUKA KR 40 PA - payload 40Kg
    No. of robot axes4
    Min. format rangecase 150 x 120 x 100 mm [L x W x H]
    Max. format rangecase 600 x 400 x 400 mm [L x W x H]
    Performanceup to 10 palletizing cycles/min.
    Control systemSchneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)
    Pallet size1200 x 800 mm - 1220 x 1016 mm (48" x 40")
    Max. palletizing height1650 mm (including pallet)
    Application
    Technology
    Action
    Layout
    SYSTEM / DETAILS
    Product flow PAL

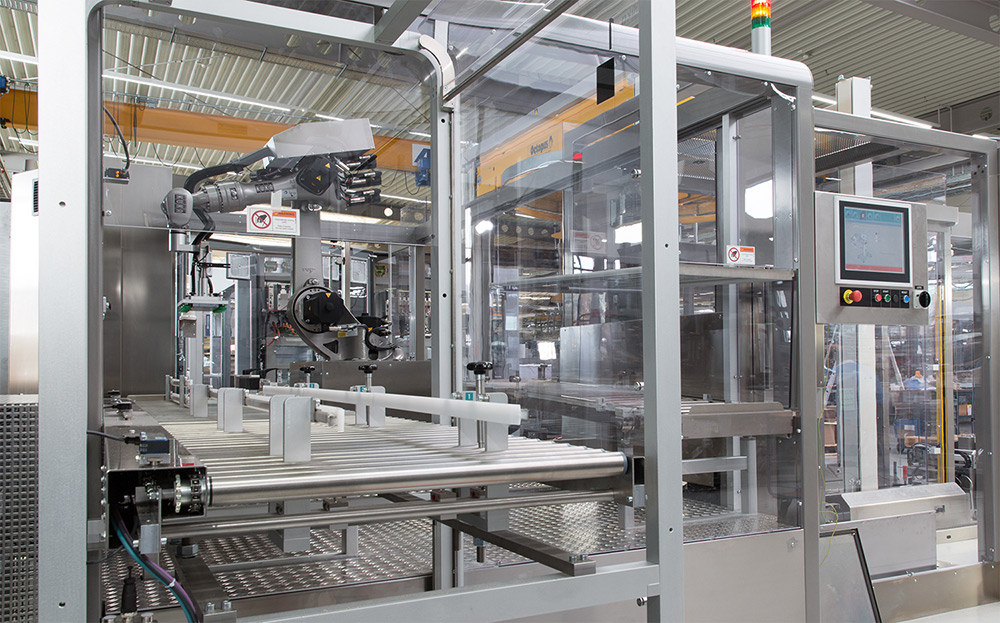

    Case infeed section
    Pick &Place
    Robot unit
