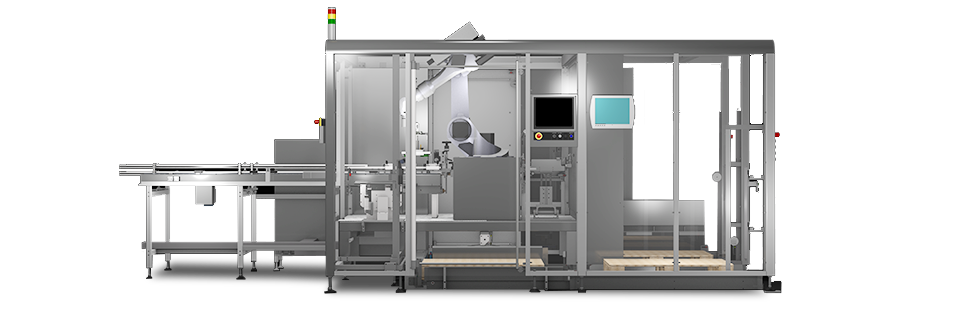

PALLETIZER 6 axes
PEWO-pal 6.4 D20
Benefits

  • New generation of human-machine communication
  • Interactive 3-D visualization
  • Intuitive machine operation via 15“ multi-touch display
  • Compact, modern GMP-compliant machine design for ultimate pharma safety
  • Doors made of safety glass with soft closing function: durable, antistatic, scratch-proof
  • Transparent control cabinet
  • Fully automatic pallet handling
  • Efficient - pallet change without line downtime
  • Integrated pallet magazine for up to 10 empty pallets
  • Automatic infeed and discharge via chain transport
  • Customized solution depending on installation situation
  • Slip sheet magazine on request
  • Pre-defined interfaces for integration of T&T system
  • Easy integration of external systems such as cameras, labelers, checkweighers and pallet stretch wrappers on request
  • Innovative labeling technology
  • Reliable KUKA robot technology in operation thousands of times around the world
  • New – fully integrated control cabinet for KUKA robot
  • Prepared for automatic format changeover
  • RFID format part detection on request
  • Simple, reproducible format changeover in less than 10 minutes
    • Pharma Machine Generation

    Design & Quality

  • Clean, modern pharmaceutical design with white color scheme in RAL 9003
  • Rectilinear, large-scale and frameless design for an even higher quality appearance
  • New – fully integrated control cabinet for KUKA robot
    •
    Functionality

  • Noise reduction due to better shock-absorbing properties
  • IP54 conform
  • Separation of 24V / 400V circuit in the electrical cabinet
    •
    Sustainable & future-proof

  • Laminated safety glass: state-of-the-art material replaces plastic for safety guarding
  • Age-resistant materials of protective cover guarantees lifelong transparency
  • Digitalization and Design: upgrade of pester tangius 4.0 HMI operating concept
    •
    User friendly & easy to clean

  • Antistatic und easy to clean with any cleaning agent
    •
    Machine dimensions3990 x 2980 x 2350 [L x W x H]
    Ceiling height2600 mm to allow for operating range of robot
    Features4 pallet stations
    RobotKUKA KR 22 Cybertech
    No. of robot axes6
    Min. format rangecase 150 x 120 x 100 mm [L x W x H]
    Max. format rangecase 600 x 400 x 400 mm [L x W x H]
    Performanceup to 10 palletizing cycles/min.
    Control systemSchneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)
    Pallet size1200 x 800 mm - 1220 x 1016 mm (48" x 40")
    Max. palletizing height1650 mm (including pallet)
    x
    topview
    sideview
    Application
    Technology
    In Action
    Layout
    SYSTEM / DETAILS

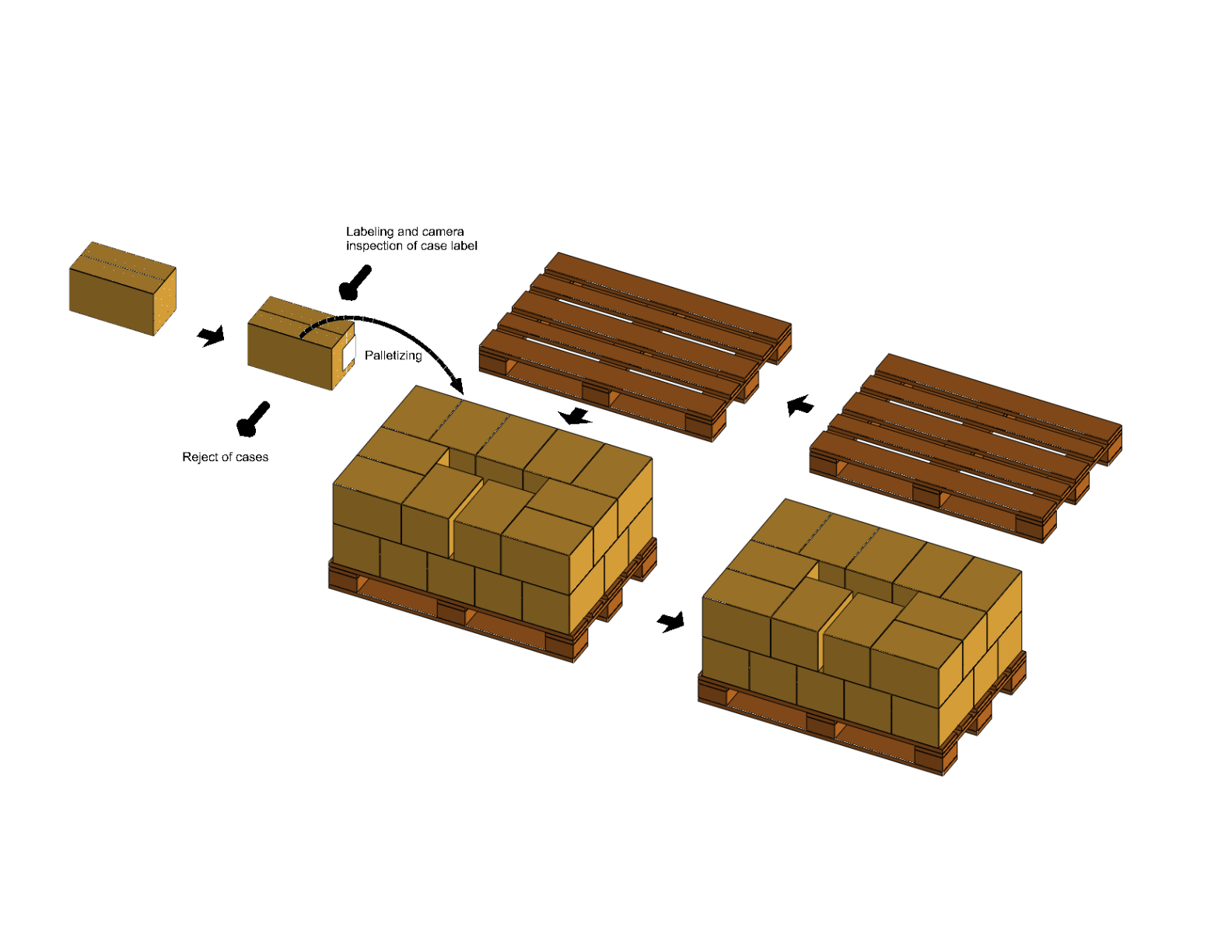

    Product flow PAL
