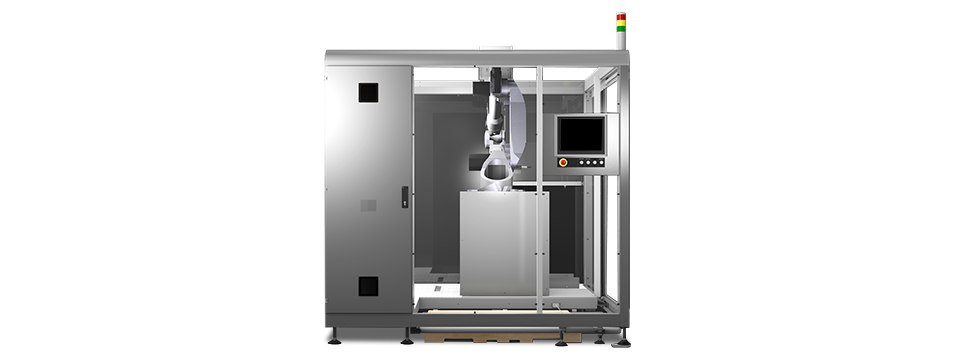

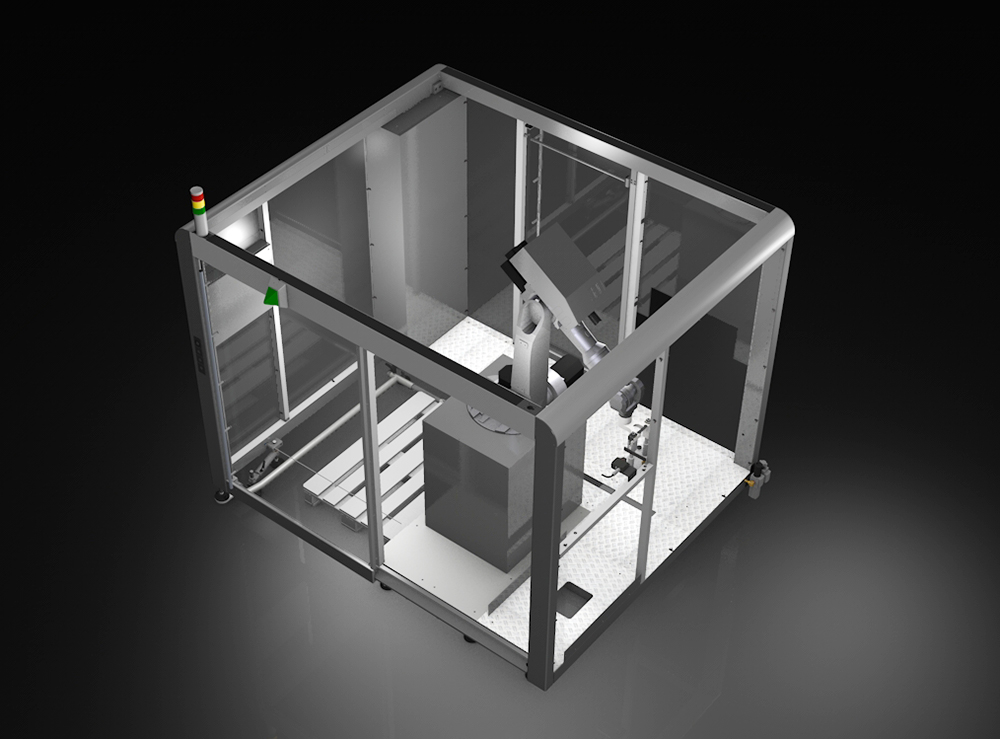

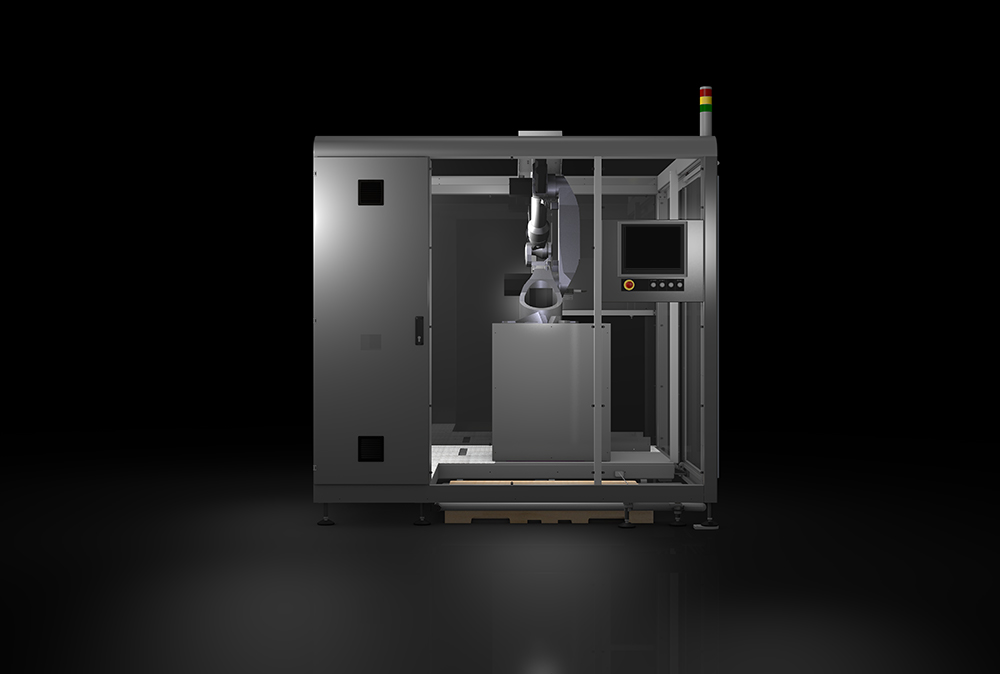

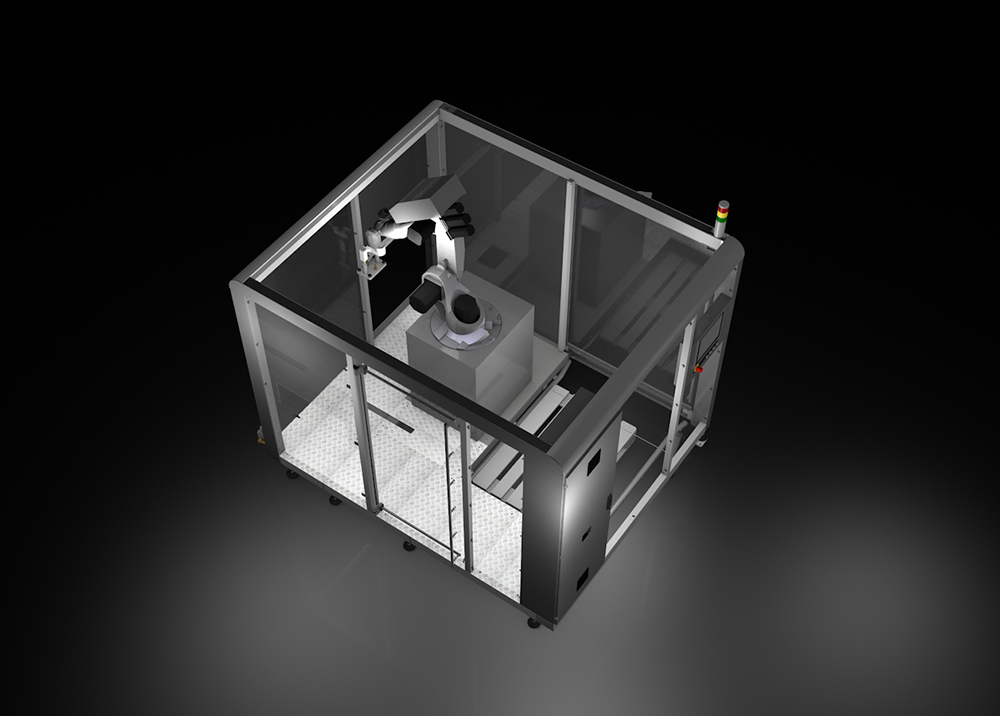

PALLETIZER 6 axes
PEWO-pal 6.1 D20
Benefits

  • Single-station palletizer with minimum space requirements and a high package density
  • New generation of human-machine communication
  • Interactive 3-D visualization
  • Intuitive machine operation via 15“ multi-touch display
  • Compact, modern GMP-compliant machine design for ultimate pharma safety
  • Doors made of safety glass with soft closing function: durable, antistatic, scratch-proof
  • Transparent control cabinet
  • Accurate and versatile - product handling solutions for low cycle rates
  • Customized solution, depending on installation situation
  • Intelligent safety technology
  • Pre-defined interfaces for integration of Track & Trace systems
  • Innovative labeling technology
  • Reliable KUKA robot technology in operation thousands of times around the world
  • Flexible palletizing schemes through multi pick & place system
  • Slip sheet magazine feasible on request, for optimum stability
  • Prepared for automatic format changeover
  • RFID format part detection on request
    • New Pharma Machine Generation

    Design & Quality

  • Clean, modern pharmaceutical design with white color scheme in RAL 9003
  • Rectilinear, large-scale and frameless design for an even higher quality appearance
  • New – fully integrated control cabinet for KUKA robot
    •
    Functionality

  • Noise reduction due to better shock-absorbing properties
  • IP54 conform
  • Separation of 24V / 400V circuit in the electrical cabinet
    •
    Sustainable & future-proof

  • Laminated safety glass: state-of-the-art material replaces plastic for safety guarding
  • Age-resistant materials of protective cover guarantees lifelong transparency
  • Digitalization and Design: upgrade of pester tangius 4.0 HMI operating concept
    •
    User friendly & easy to clean

  • Antistatic und easy to clean with any cleaning agent
    •
    Machine dimensions2300 x 2750 x 2350 mm [L x W x H]
    Ceiling height2600 mm to allow for operating range of robot
    Features1 pallet station
    RobotKUKA KR 22 Cybertech
    No. of robot axes6
    Min. format rangecase 150 x 120 x 100 mm [L x W x H]
    Max. format rangecase 600 x 400 x 400 mm [L x W x H]
    Performanceup to 10 palletizing cycles/min
    Control systemSchneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)
    Pallet size1200 x 800 mm - 1220 x 1016 mm (48" x 40")
    Max. palletizing height1650 mm (including pallet)
    Application
    Technology
    In Action
    Layout
    SYSTEM / DETAILS

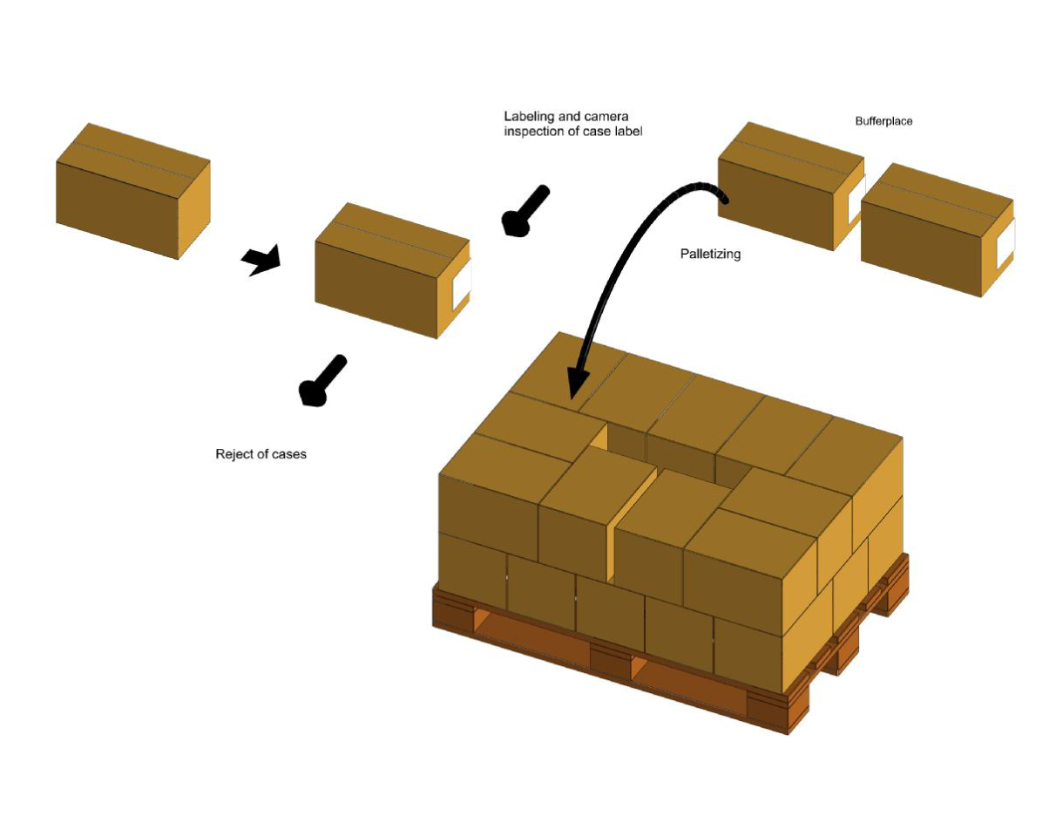

    Product flow PAL
    Case infeed section

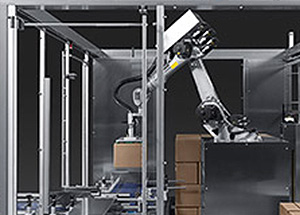

    Pick &Place
    Robot unit
    Technology Flyer Technical data
