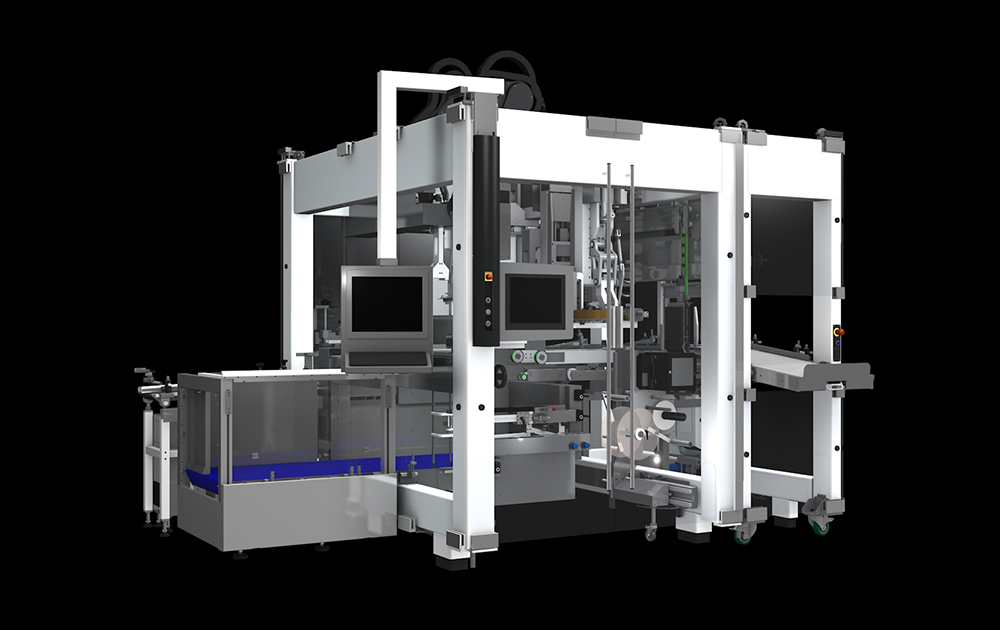

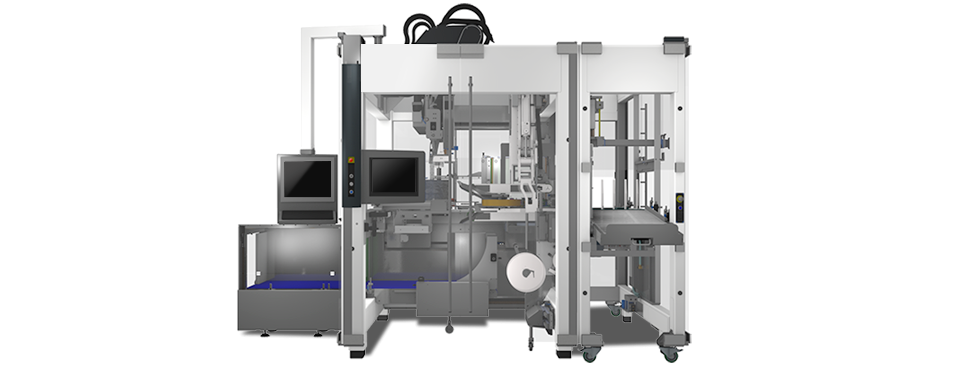

SIDE LOADING CASE PACKER
PEWO-form SLC 2 Compact
Benefits

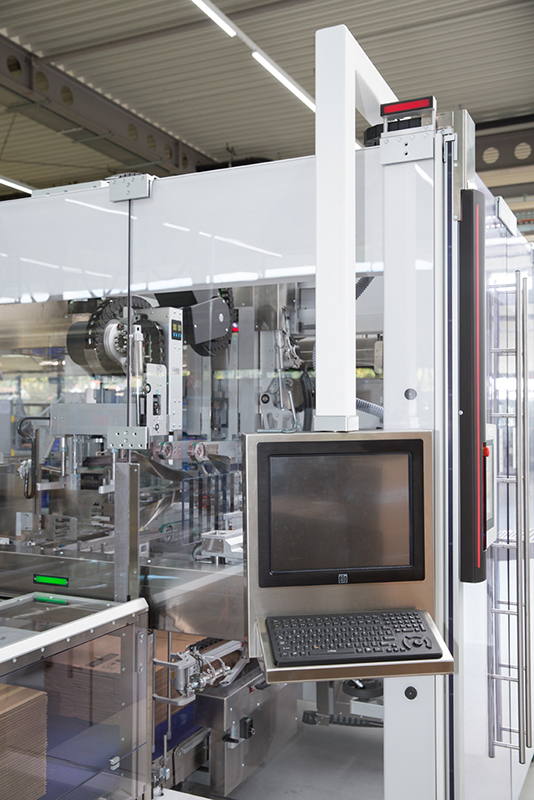

  • New generation of human-machine communication
  • Doors made of safety glass with soft closing function: durable, antistatic, scratch-proof
  • Customized solution depending on installation situation
  • Case magazine for simple loading
  • Safe case transport by means of 4 servo-controlled toothed belts with drivers
  • Simple reproducible format changeover in less than 10 minutes
    • Machine dimensions4300 x 2600 x 2450 mm [LxWxH]
    Ceiling height3150 mm to allow for operating range of robot
    FeaturesTape / hotmelt glue

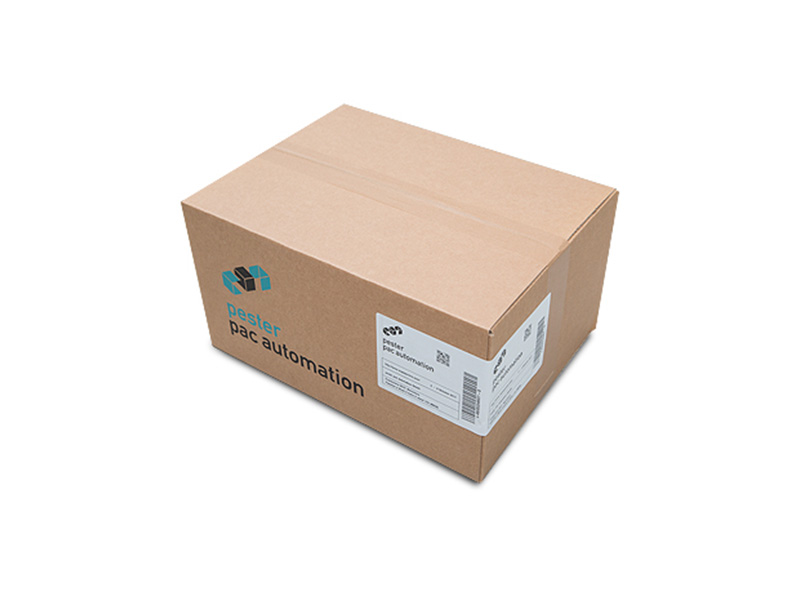

    Case typeAmerican case
    Sealing methodTape / hotmelt glue
    Min. format rangeproduct 30 x 12 x 66 mm [L x W x H] / case 150 x 120 x 105 mm [L x W x H]
    Max. format rangeproduct 440 x 150 x 250 mm [L x W x H] / case 450 x 320 x 320 mm [L x W x H]
    Changeover TimeLess than 10 Minutes
    Performanceup to 6 cases/min.
    Control systemSchneider Electric PacDrive 3 / Rockwell
    Application
    Technology
    Action
    Layout
    x
    Case closing

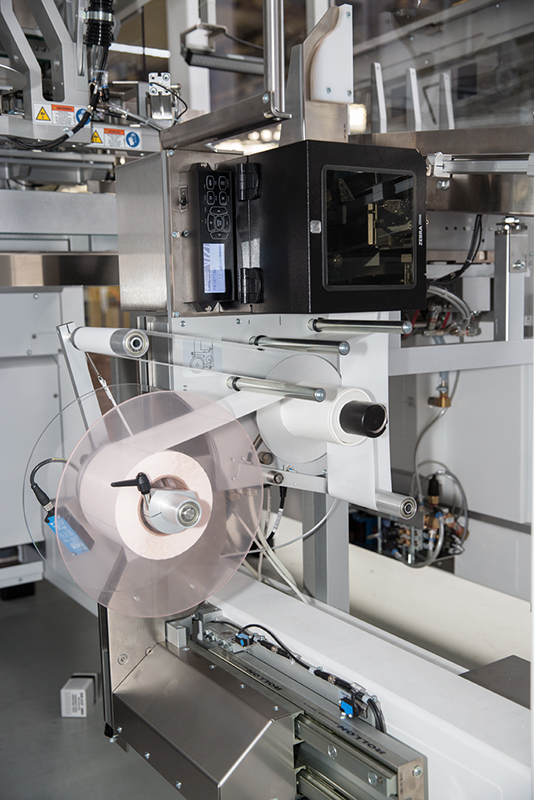

    Tape changing
    SYSTEM / DETAILS

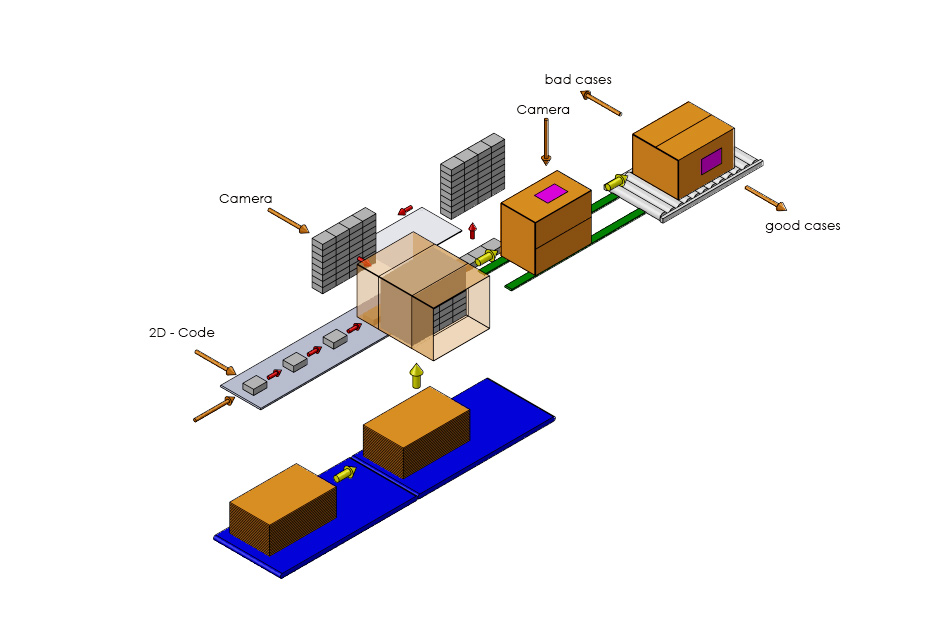

    Product flow SLC Compact

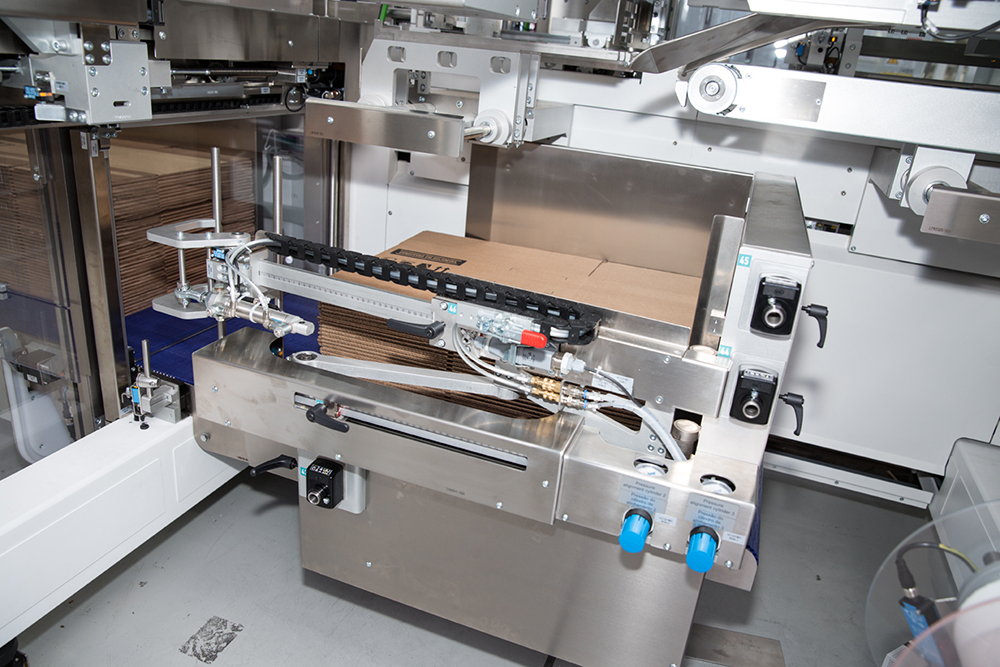

    Case errecting process
    Product infeed pusher
    Case closing process
    Technology Flyer Technical data
    Case closing Tape changing
