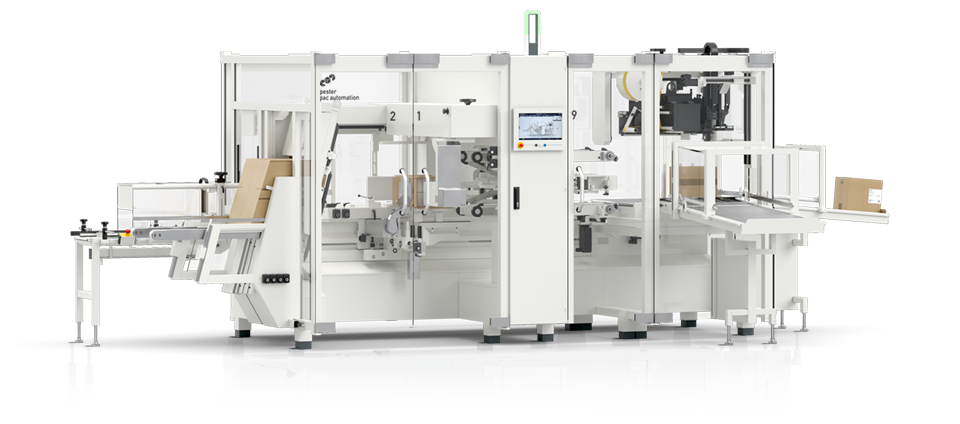

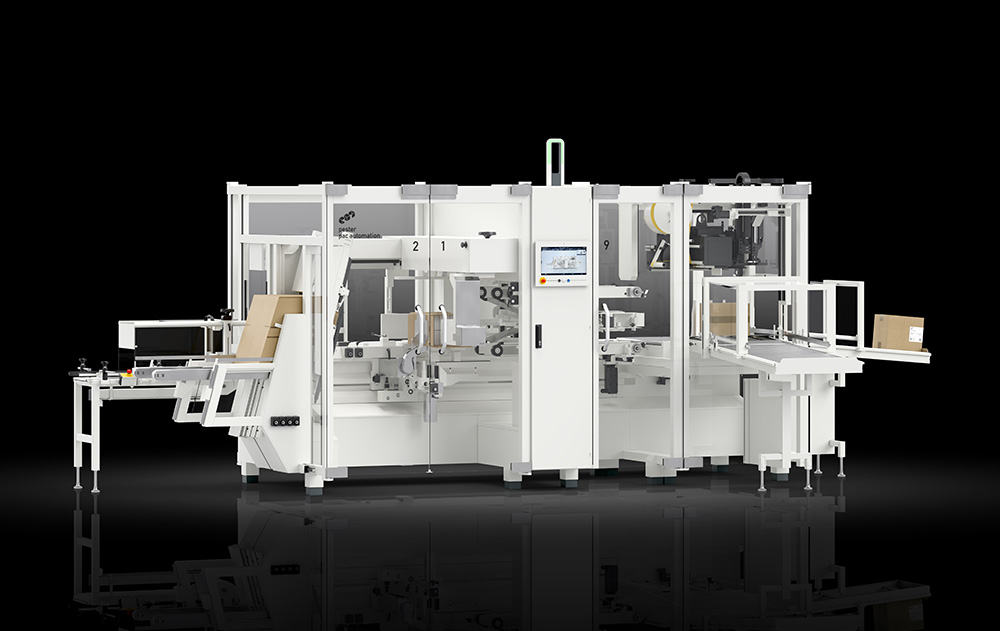

SIDE LOADING CASE PACKER
PEWO-form SLC 3 D20
Benefits

  • New generation of human-machine communication
  • Interactive 3D visualization

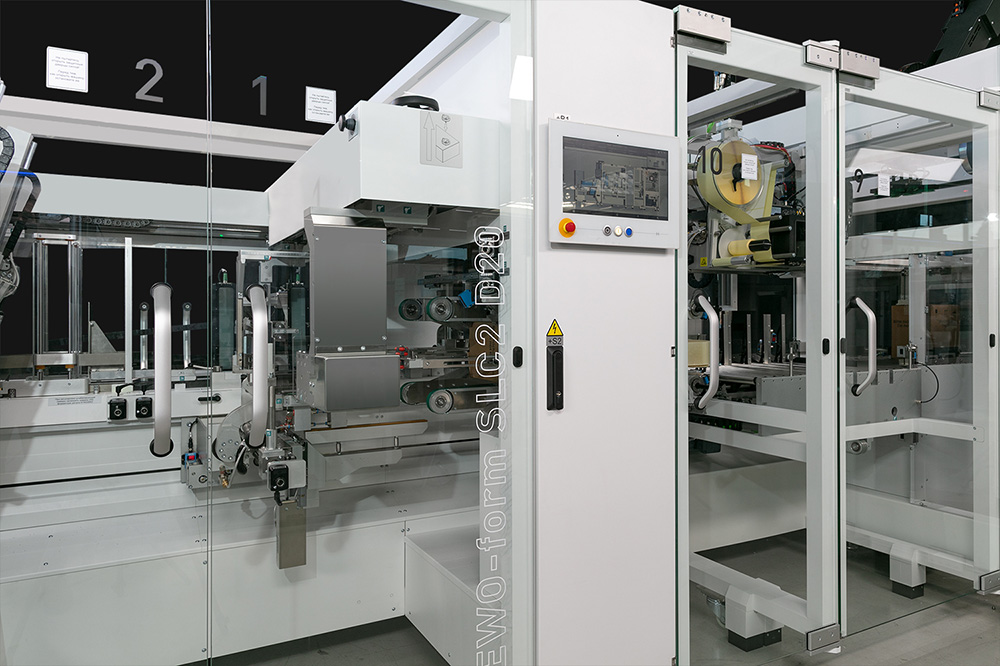

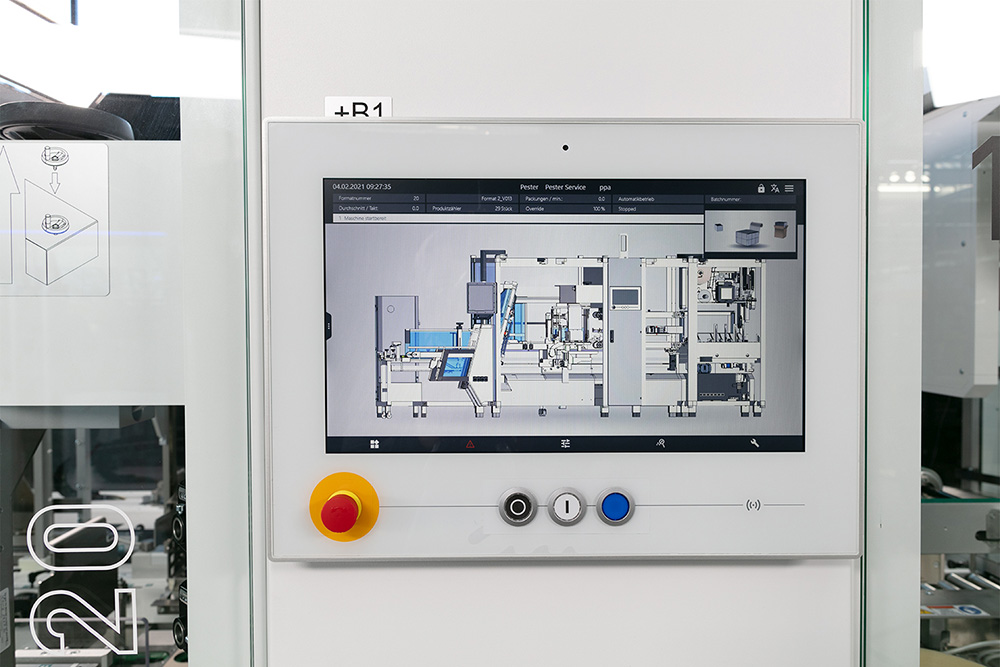

  • Intuitive machine operation via 15" multi-touch display

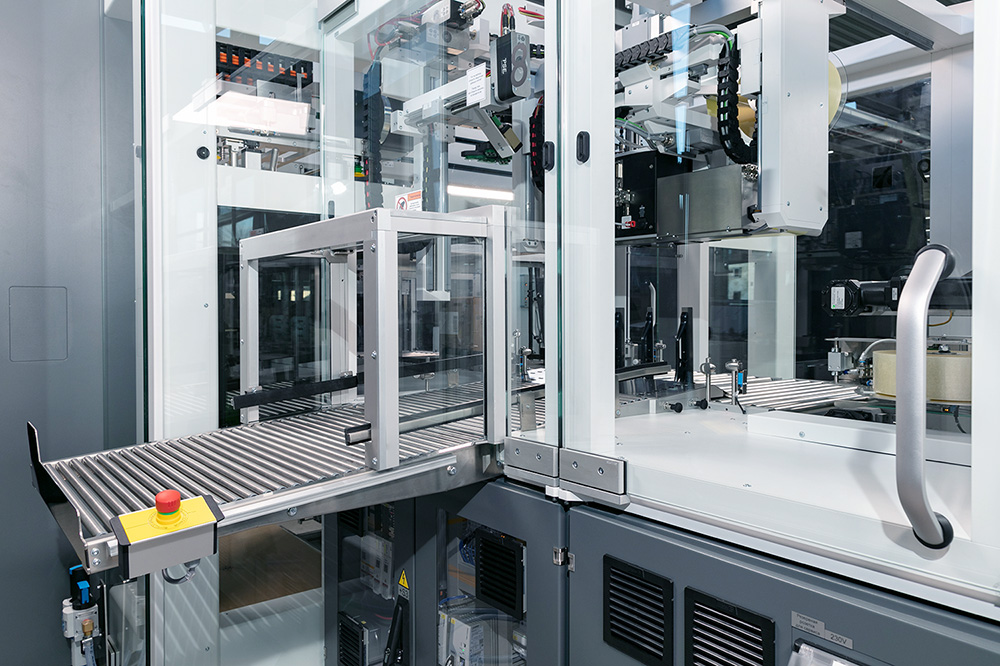

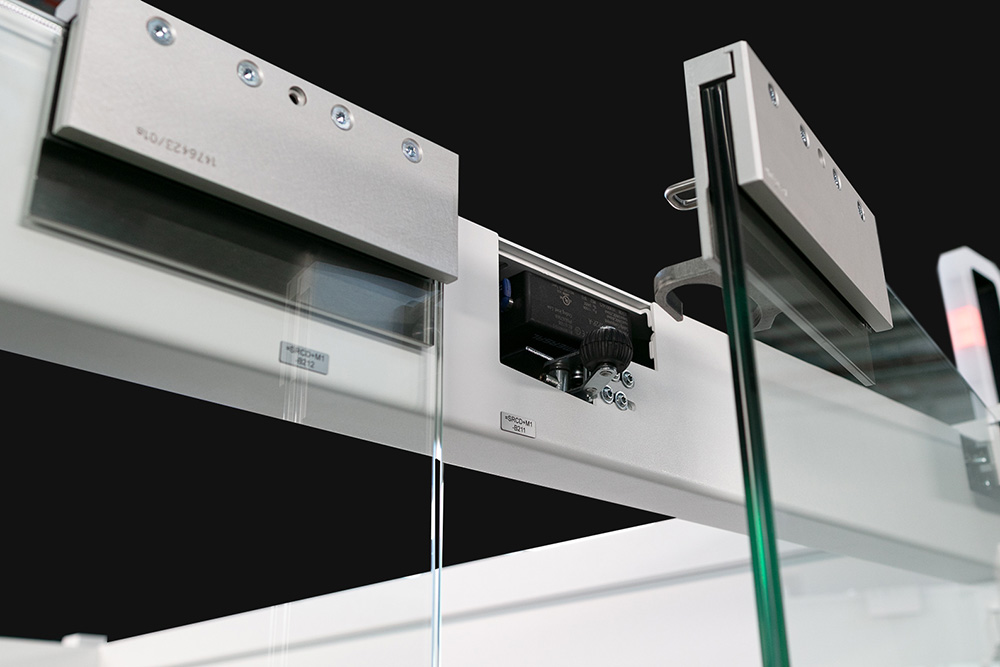

  • Doors made of safety glass with soft closing function: durable, antistatic, scratch-proof

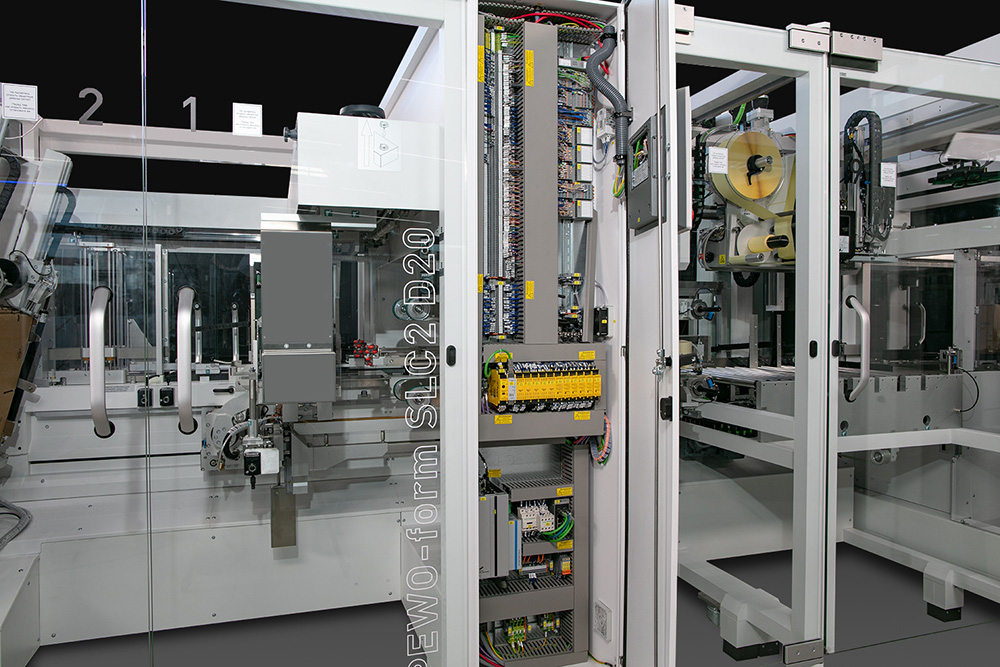

  • Transparent control cabinet
  • Pharma-compatible GMP design
  • Ultimate flexibility - wide format range for high packaging diversity
  • Reliable case handling with innovative cascading case extraction
  • Ergonomic and fail-safe – new case magazine with zero access standard and user-friendly hand wheel adjustment

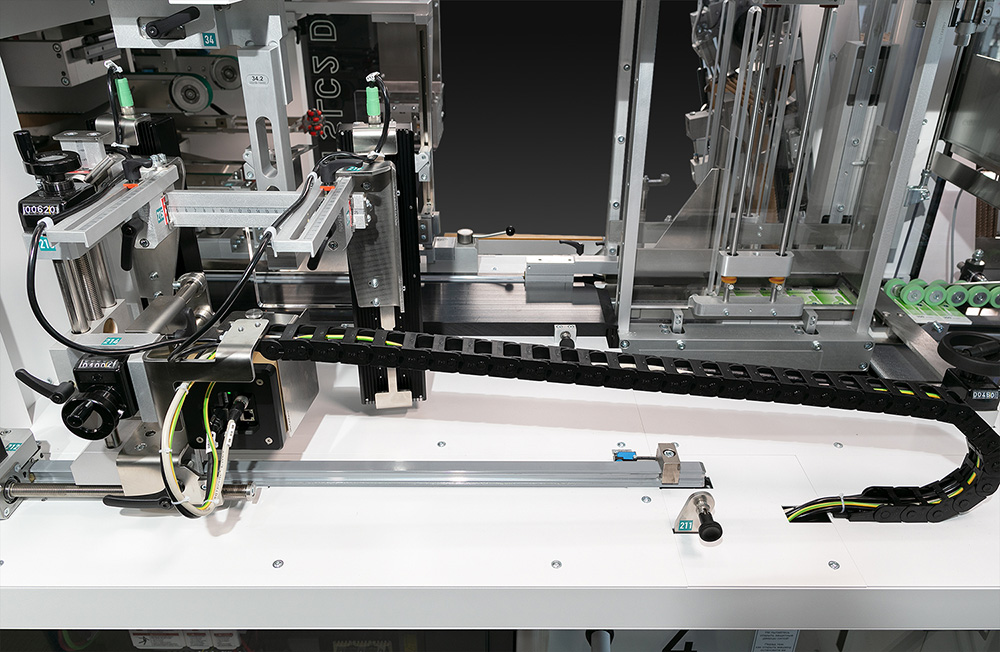

  • High-precision case transport by means of 4 servo-controlled toothed belts with lugs

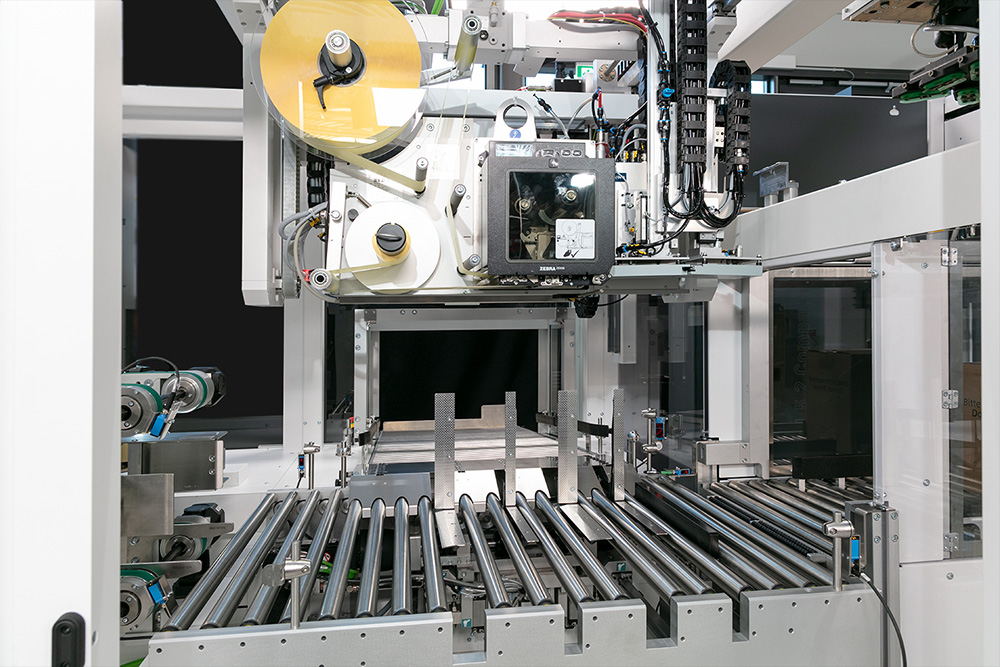

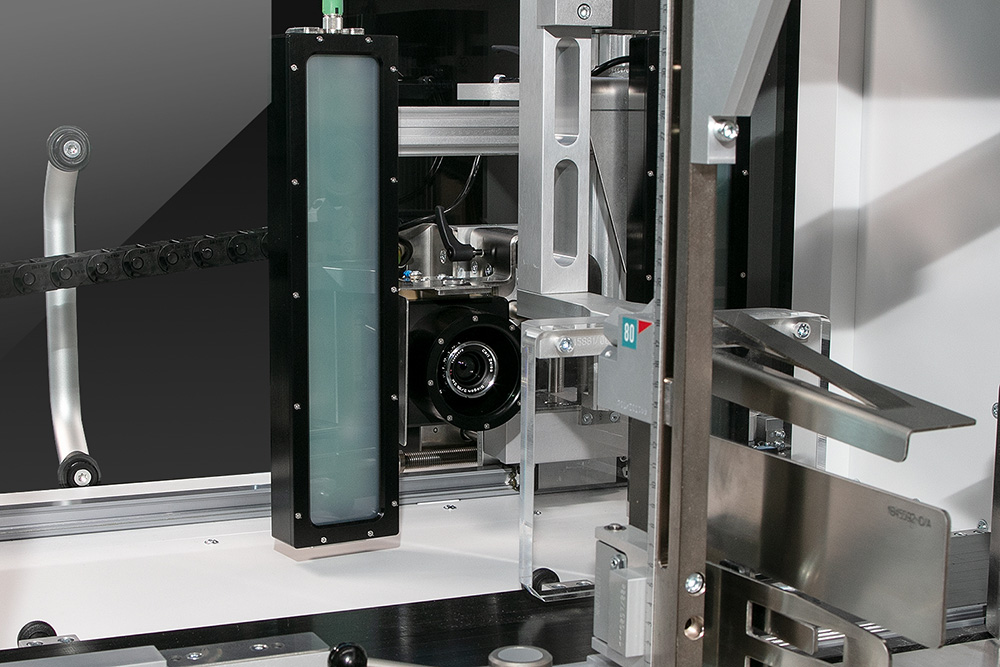

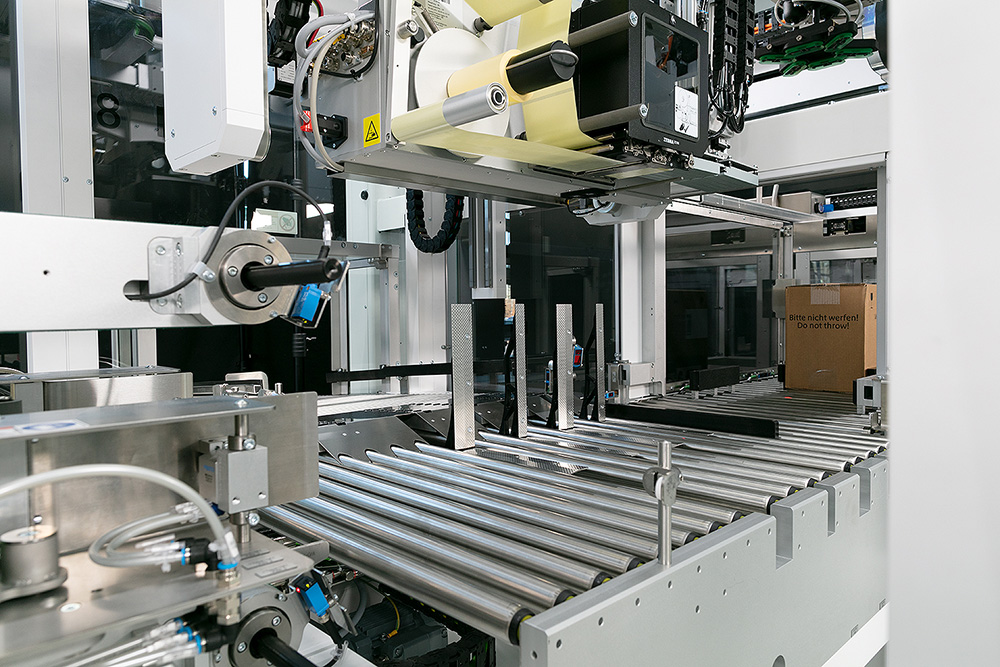

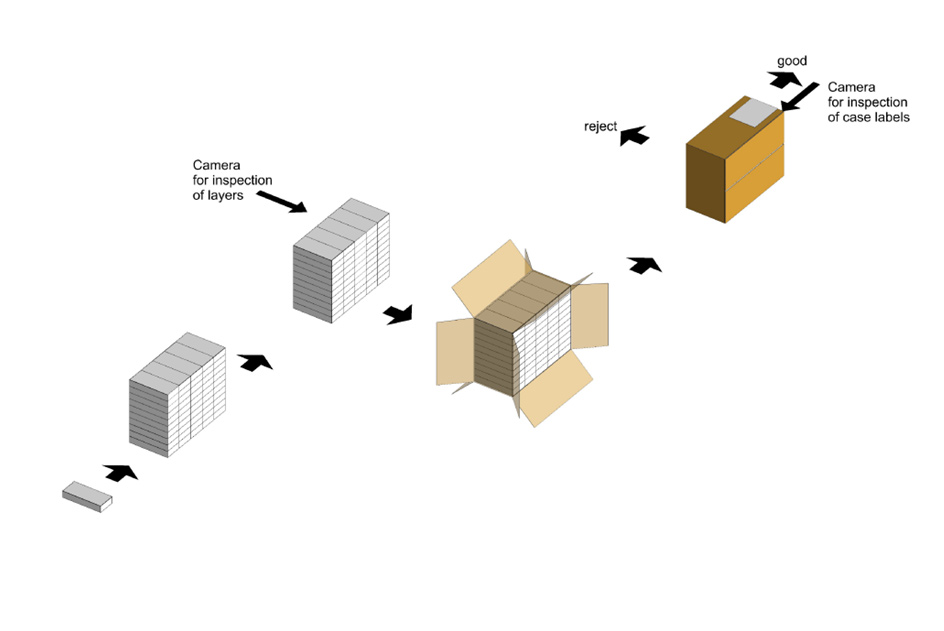

  • Unique product production - identification, labeling and monitoring at every level
  • Prepared interface for Track & Trace system
  • RFID format part detection available on request
  • Simple operation, quick format changeover and integrated format management
  • Simple, reproducible format changeover in less than 10 minutes
    • New Pharma Machine Generation

    Design & Quality

  • Clean, modern pharmaceutical design with white color scheme in RAL 9003
  • Rectilinear, large-scale and frameless design for an even higher quality appearance
    •
    Functionality

  • Noise reduction due to better shock-absorbing properties
  • IP54 conform
  • Separation of 24V / 400V circuit in the electrical cabinet
    •
    Sustainable & future-proof

  • Laminated safety glass: state-of-the-art material replaces plastic for safety guarding
  • Age-resistant materials of protective cover guarantees lifelong transparency
  • Digitalization and Design: upgrade of pester tangius 4.0 HMI operating concept
    •
    User friendly & easy to clean

  • Antistatic und easy to clean with any cleaning agent

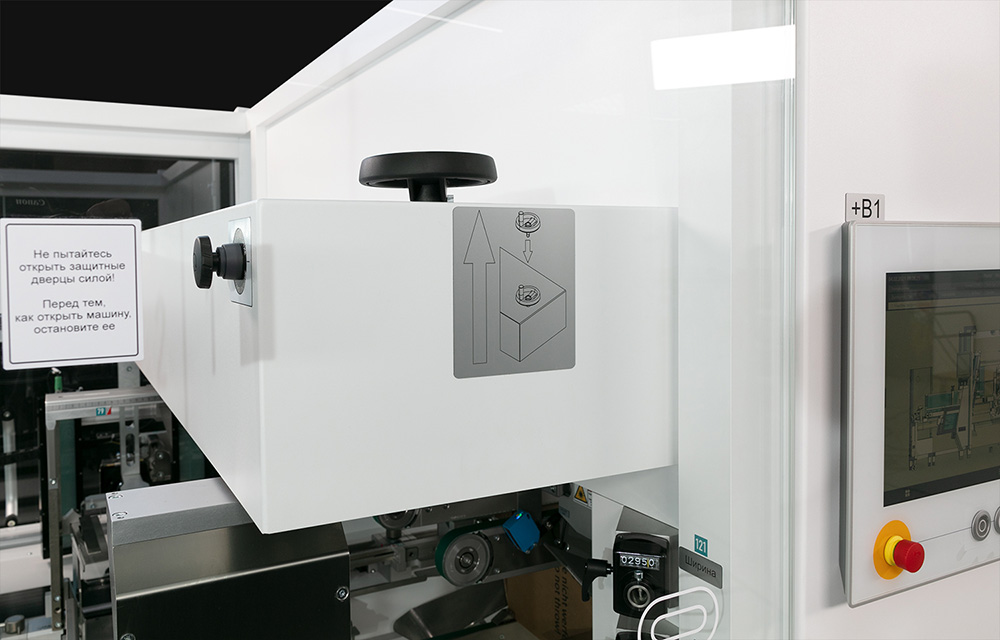

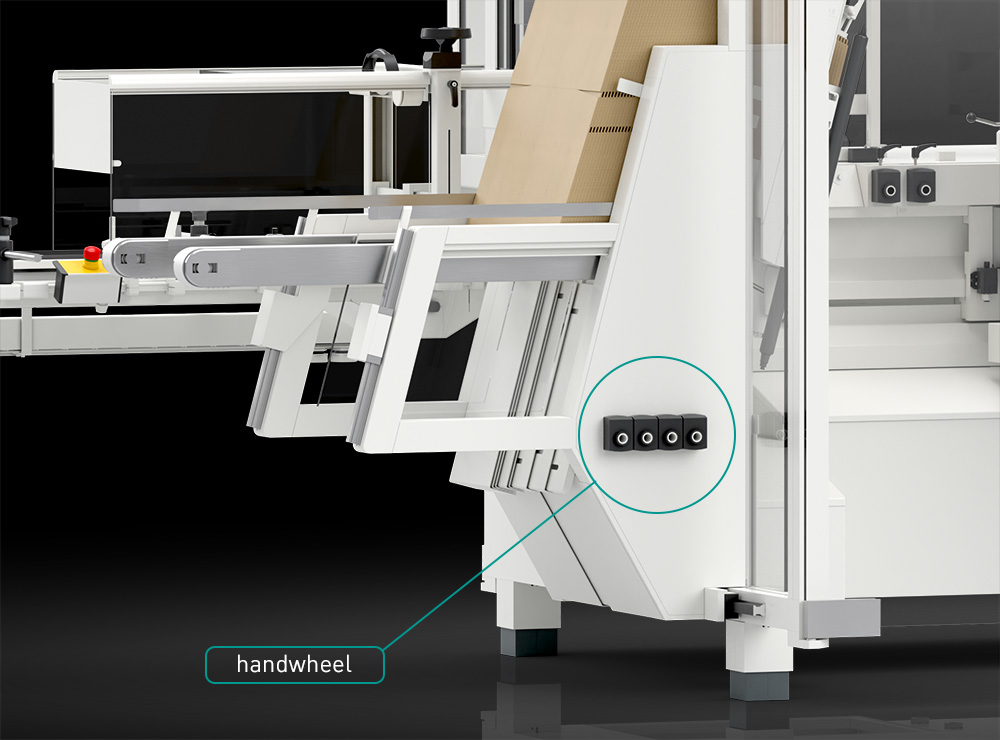

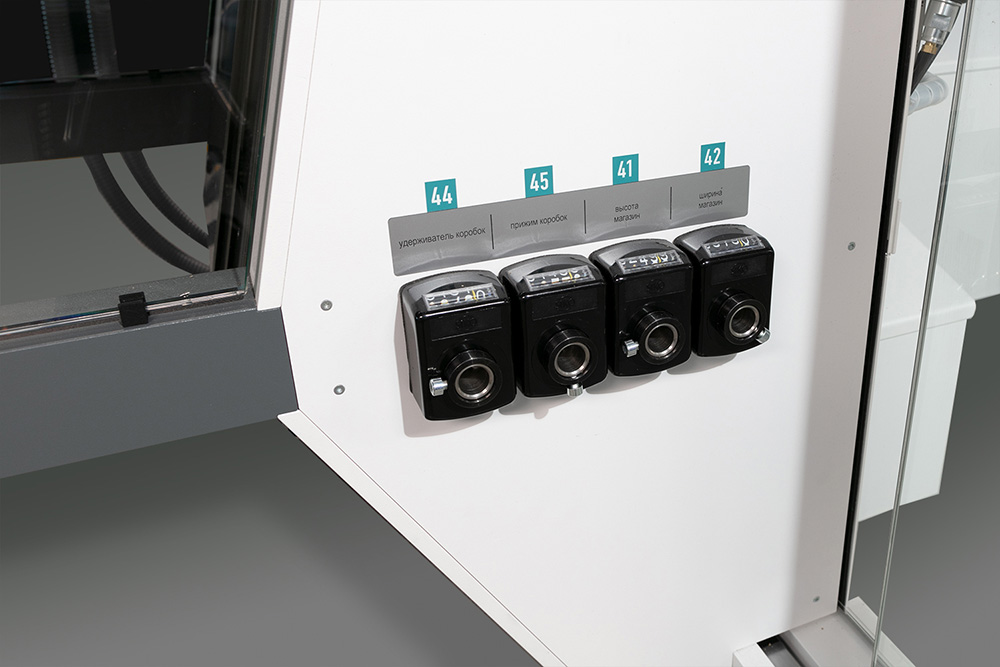

  • case magazine – ergonomic hand wheel adjustment for format changeover – no sliding bar with scales needed anymore
    •
    Highest safety standards

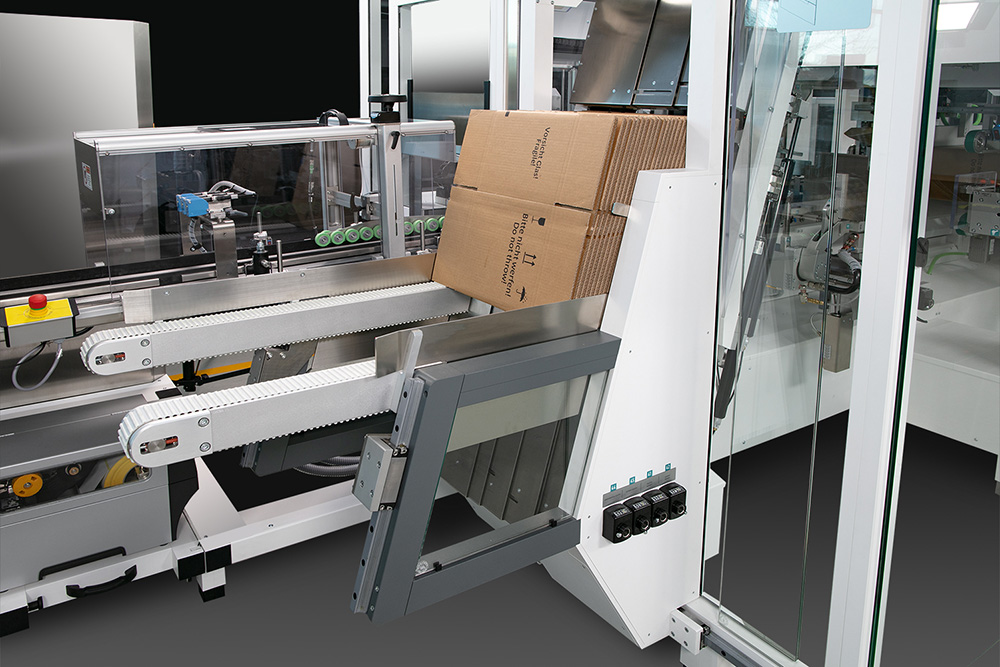

  • case magazine: ultimate safety for operating personnel due to zero access guidelines
    •
    Machine dimensions7682 x 3264 x 2350mm [L x W x H]
    Case typeAmerican case
    Sealing methodtape / hotmelt glue
    Min. format rangeproduct 30 x 12 x 66 mm [L x W x H]
    case 150 x 120 x 105 mm [L x W x H]
    Max. format rangeproduct 440 x 150 x 250 mm [L x W x H]
    case 600 x 400 x 400 mm [L x W x H]
    Changeover TimeLess than 10 Minutes
    Performanceup to 12 cases/min.
    Control systemSchneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)
    x
    Layout
    Fact sheet
    Application
    Technology
    In Action
    Layout
    x
    Case closing

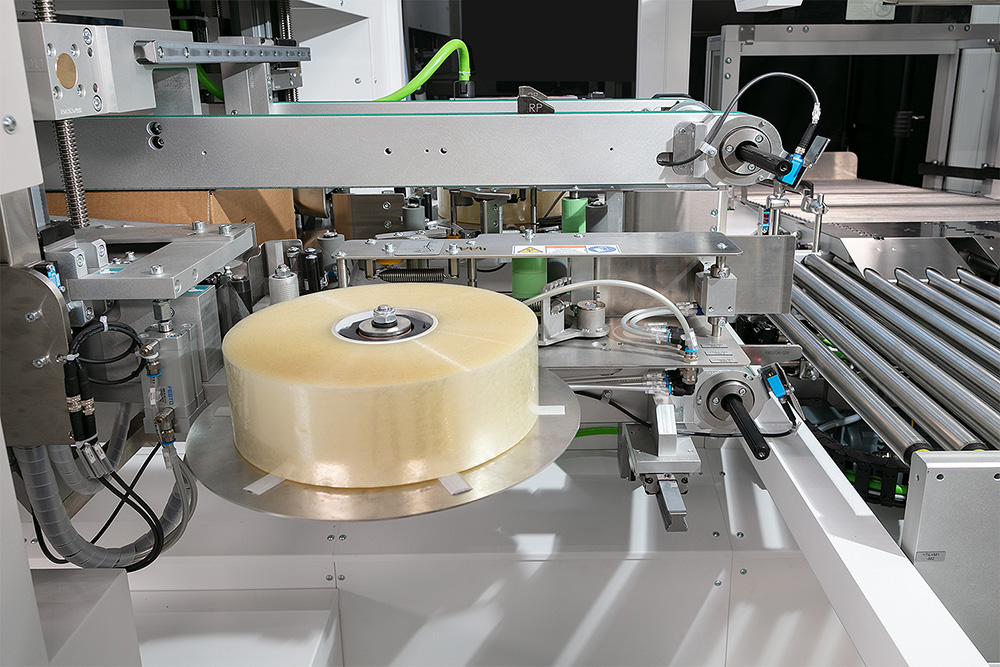

    Tape changing
    SYSTEM / DETAILS
    Product flow SLC

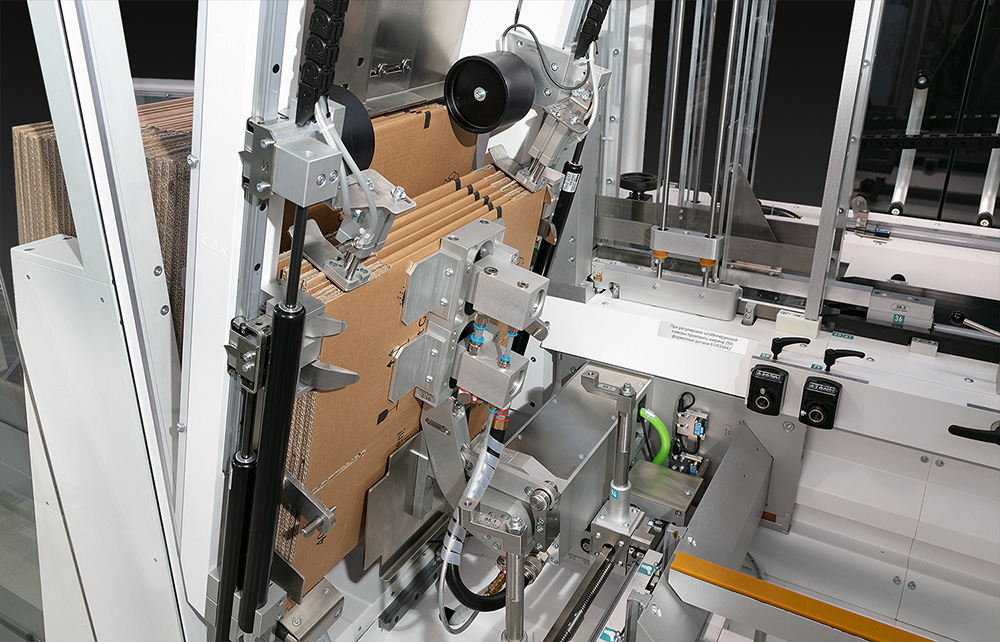

    Case errecting process
