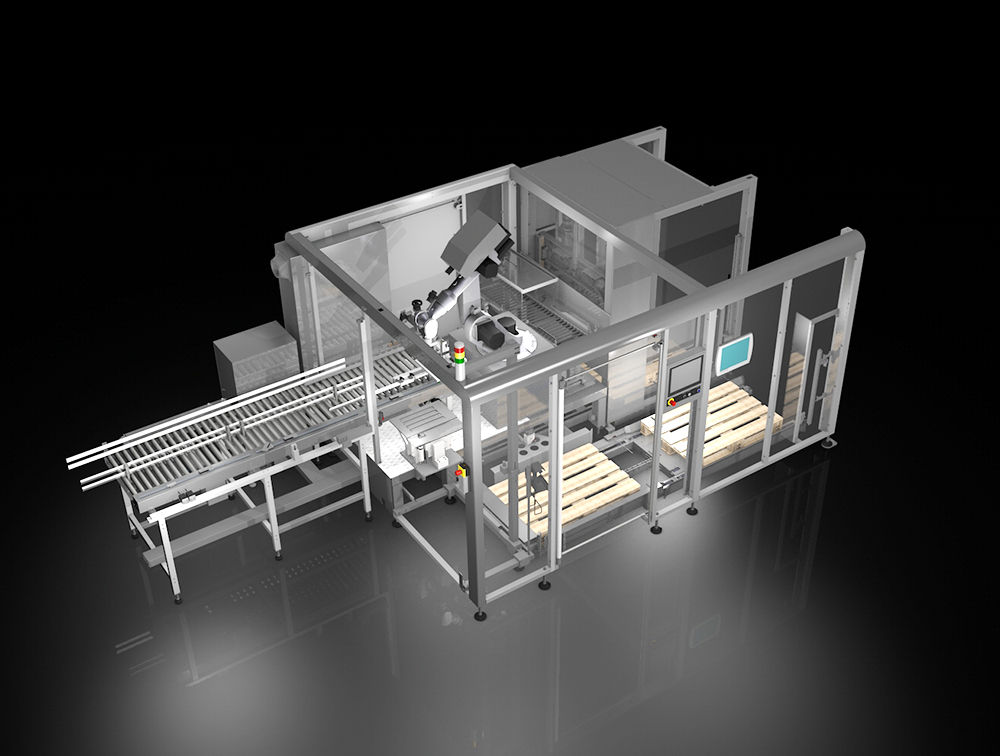

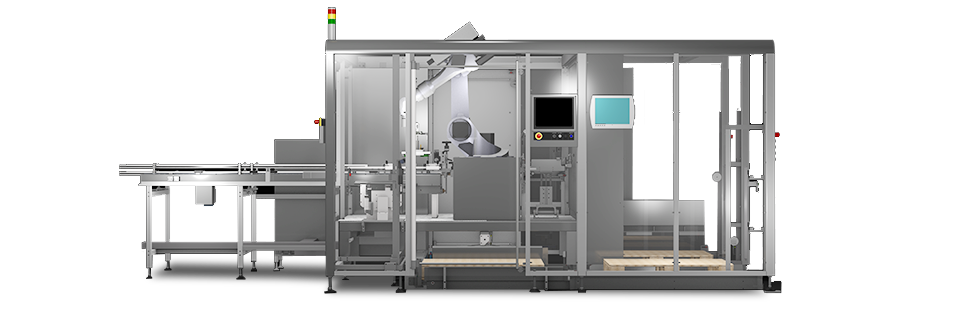

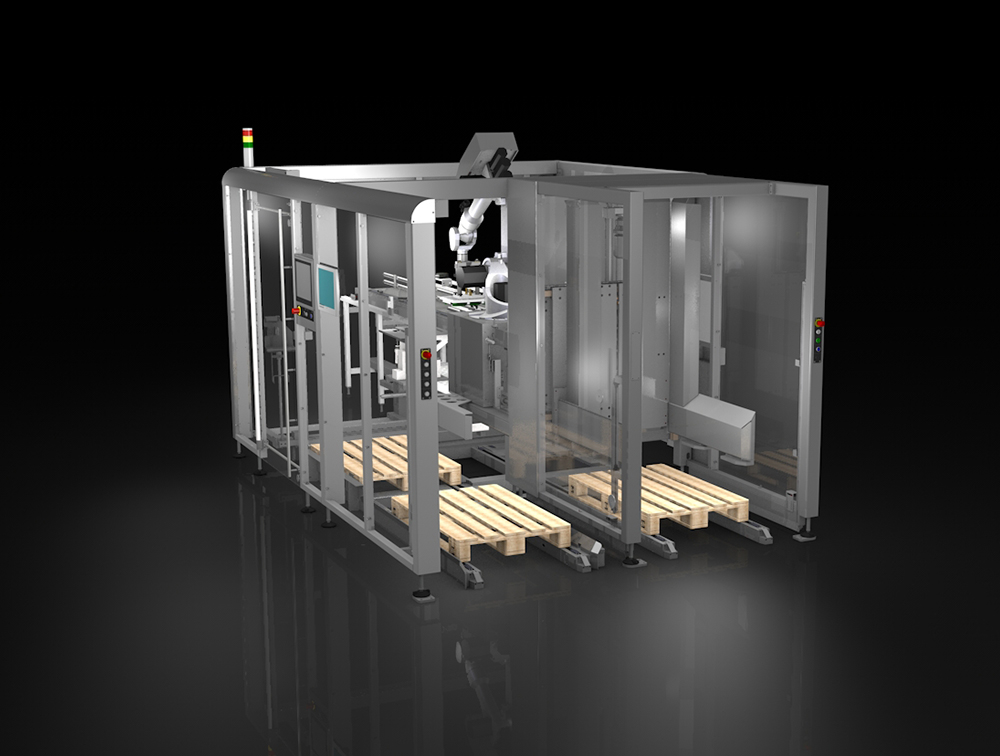

PALLETIZER 6 axes
PEWO-pal 6.4
Benefits

  • Compact pharma-compatible GMP machine design
  • Fully automatic pallet handling
  • Efficient - pallet change without line downtime
  • Integrated pallet magazine for up to 10 empty pallets
  • Automatic infeed and discharge via chain transport
  • Customized solution depending on installation situation
  • Slip sheet magazine feasible on request
  • Pre-defined interfaces for integration of T&T system
  • Easy integration of external systems such as cameras, labelers, checkweighers and pallet stretch wrappers on request
  • Innovative labeling technology
  • Reliable KUKA robot technology in operation thousands of times around the world
  • Prepared for automatic format changeover
  • RFID format part detection on request
  • Simple, reproducible format changeover in less than 10 minutes
    • Machine dimensions 3990 x 2980 x 2250 mm [LxWxH]
    Ceiling height 2600 mm to allow for operating range of robot
    Features 4 pallet station
    Robot KUKA KR 22 Cybertech / KUKA KR 50 Iontec
    No. of robot axes 6
    Min. format range case 150 x 120 x 100 mm [L x W x H]
    Max. format range case 600 x 400 x 400 mm [L x W x H]
    Performance up to 10 palletizing cycles/min.
    Control system Schneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)
    Pallet size 1200 x 800 mm - 1220 x 1016 mm (48" x 40")
    Max. palletizing height 1650 mm (including pallet)
    Application
    Technology
    Action
    Layout
    SYSTEM / DETAILS

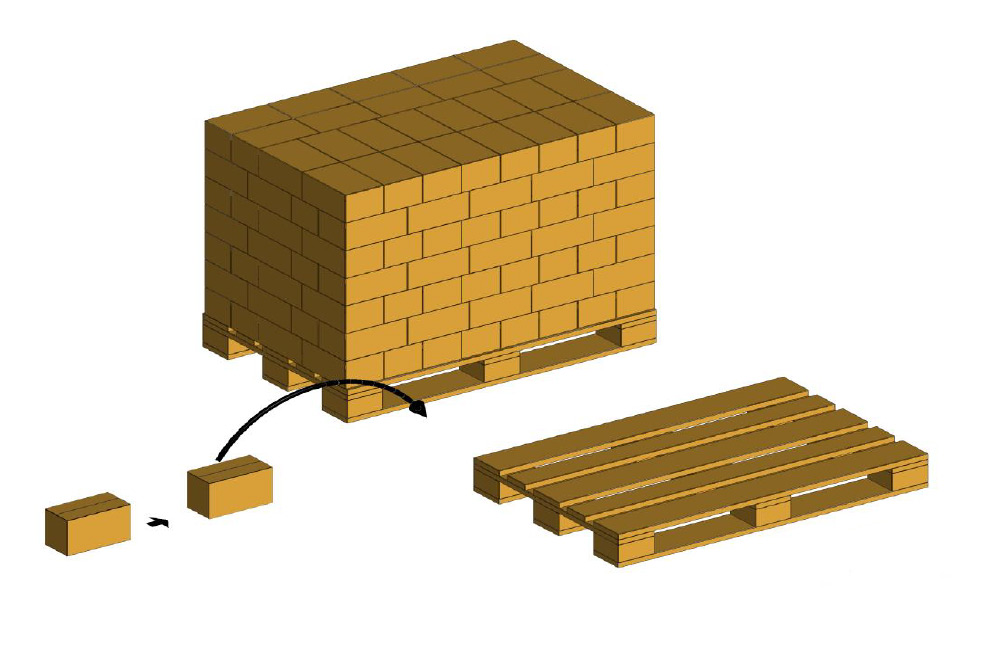

    Product flow PAL
    Case infeed section
    Pick & Place
    Robot unit
