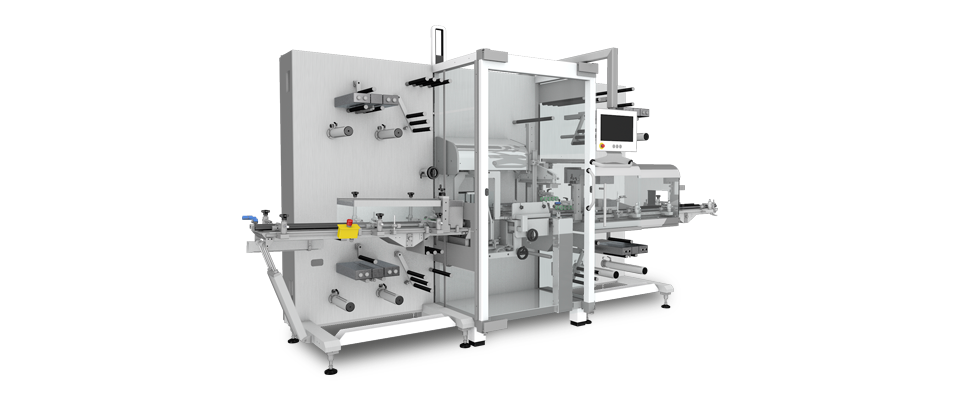

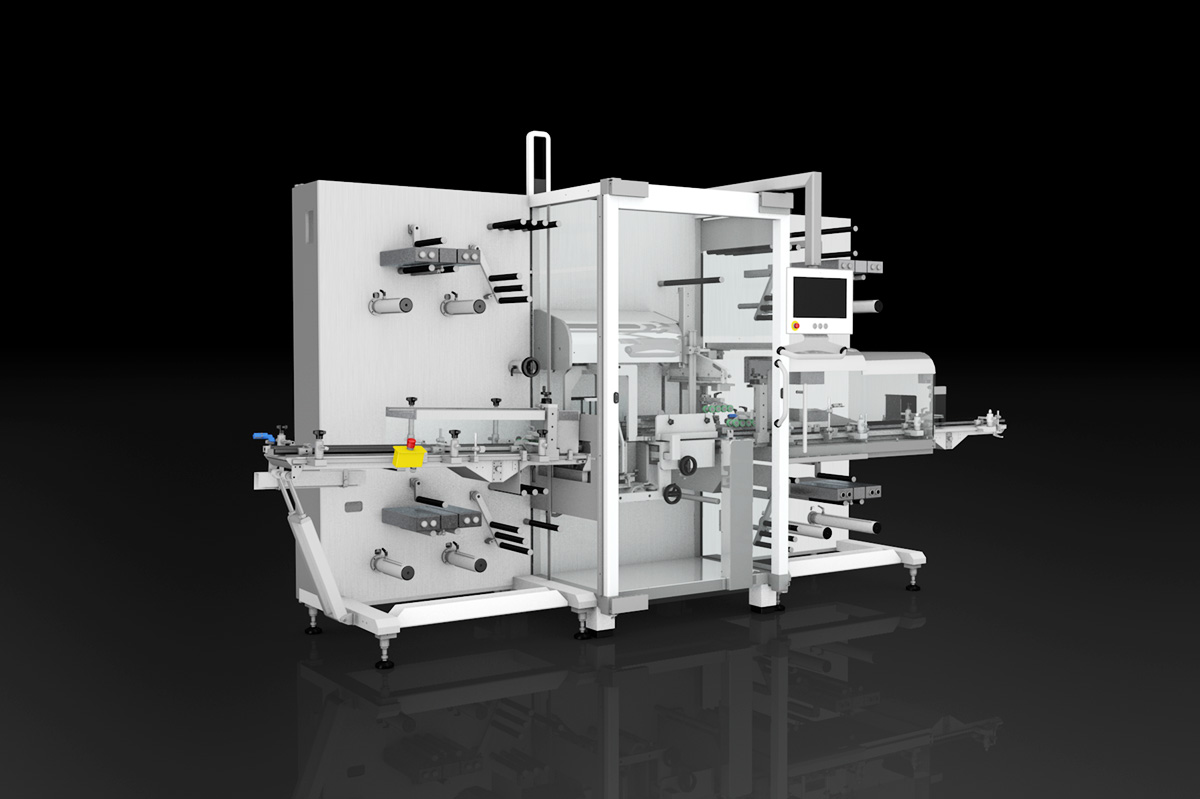

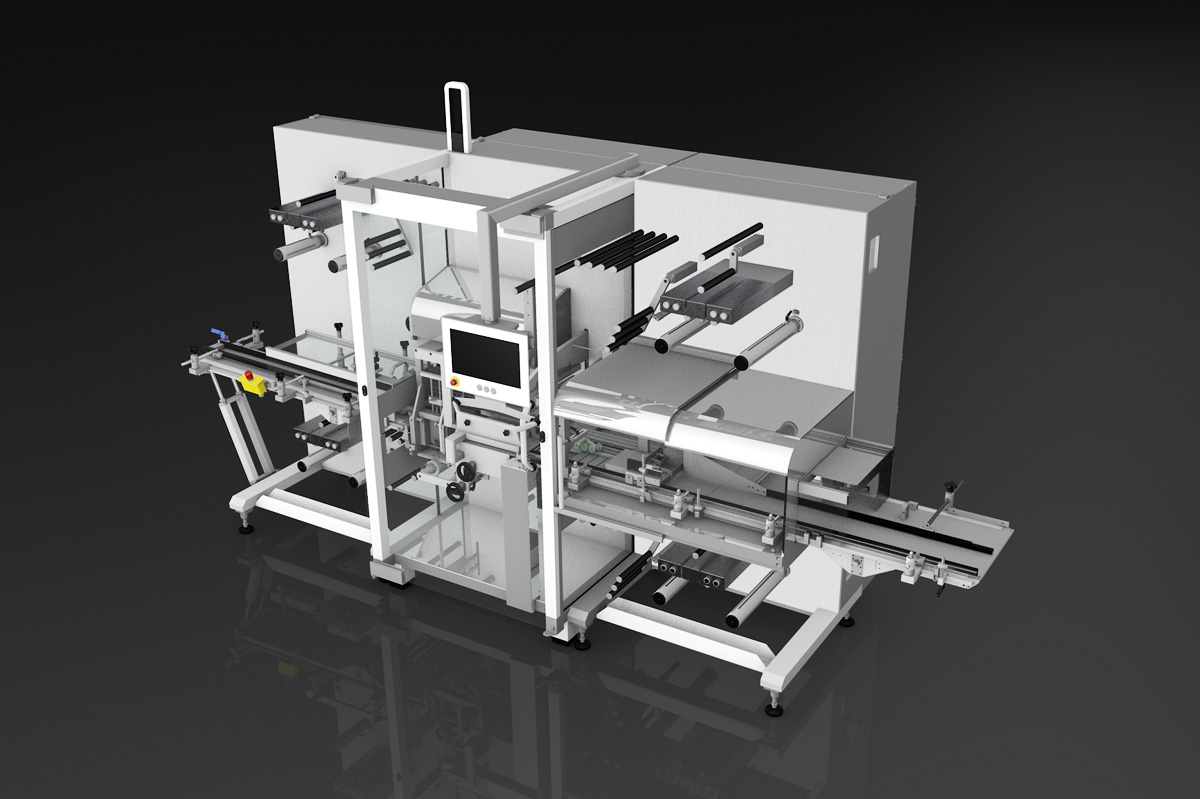

STRETCHWRAPPER
PEWO-pack 450 D20
Benefits

  • Splicer – fully automatic film reel changeover without machine downtime
  • High-speed machine performance with low life-cycle costs
  • Compact, ergonomic, GMP-compatible machine design
  • Multifarious collation configurations for folding cartons
  • Quick and easy tool-less format changeover
  • Flexible collating possibilities
  • Ultimate pharma safety – controlled shrinking that is gentle on the product
    • PEWO-pack 450 D20 dual-lane
    Machine dimensions4000 x 1300 x 2100 mm [LxWxH]
    FeaturesK-stacker
    Min. format rangeproduct 20 x 10 x 60 mm [L x W x H]
    collation 30 x 60 x 60 mm [L x W x H]
    Max. format rangeproduct 100 x 100 x 250 mm [L x W x H]
    collation 150 x 130 x 250 mm [L x W x H]
    Performanceup to 100 bundles/min. dual-lane
    Control systemSchneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)

    PEWO-pack 450 D20 single-lane
    Machine dimensions2100 x 1350 x 2150 mm [LxWxH]
    Featuresinline feeding system
    Min. format rangefolding carton 30 x 15 x 60 mm [L x W x H]
    collation 60 x 30 x 60 mm [L x W x H]
    Max. format rangefolding carton 150 x 90 x 310 mm [L x W x H]
    collation 400 x 310 x 250 mm [L x W x H]
    Performanceup to 50 bundles/min.
    Control systemSchneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)

    Application
    Technology
    Action
    Layout
    SYSTEM / DETAILS
    Wrapping flow
    Sealing process

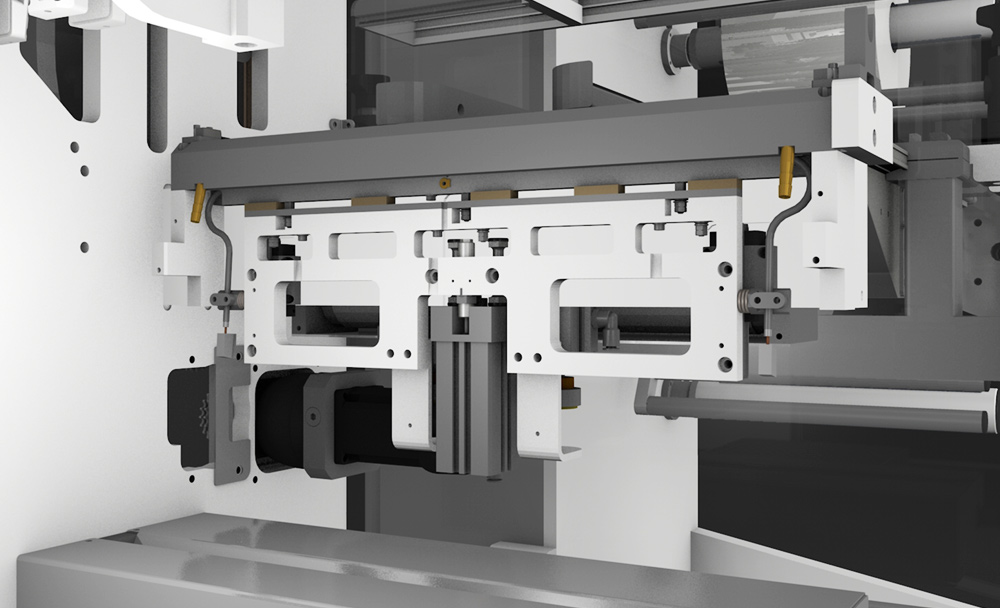

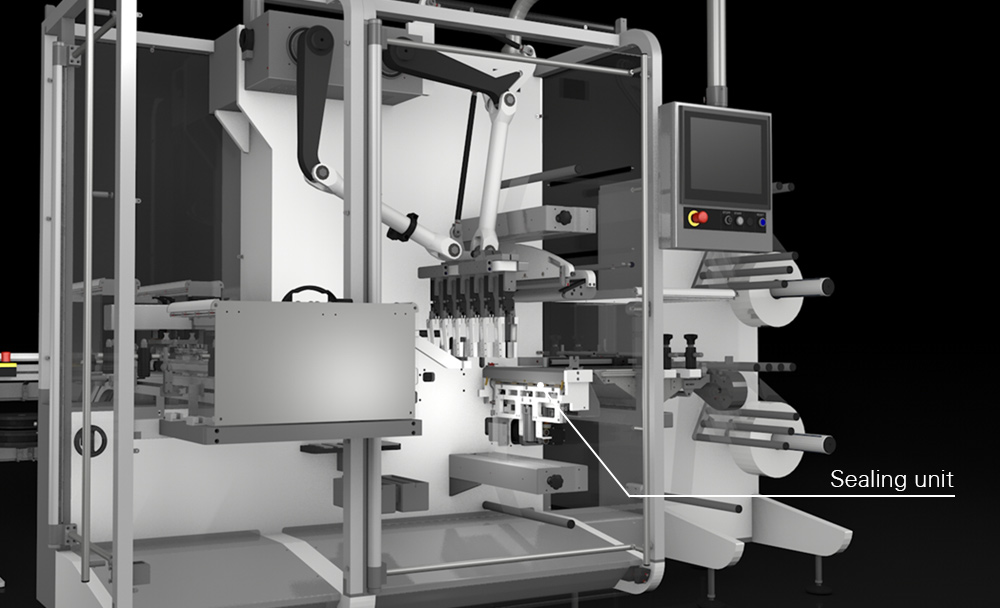

    Sealing unit
    Closing bar
