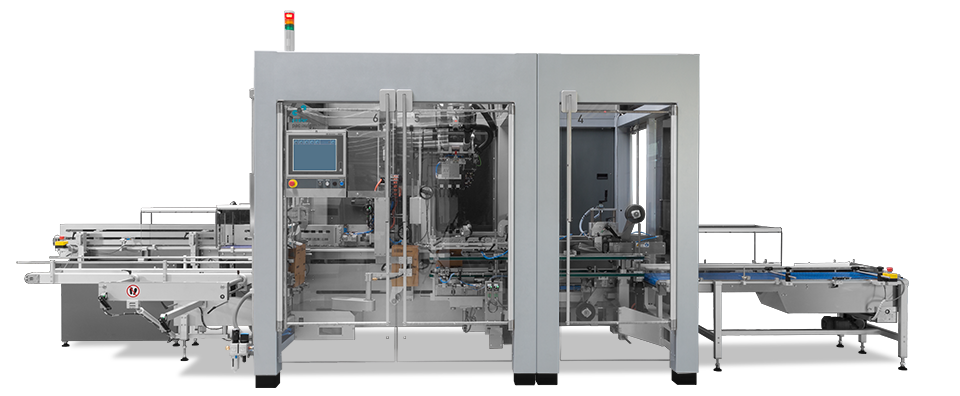

TOP LOADING CASE PACKER
PEWO-form TLC 2
Benefits

  • Stable modular architecture, optimum operating comfort and best accessibility
  • flexible, modular infeed systems
  • Interactive 3D visualization
  • Intuitive machine operation via 15" multi-touch display
  • New generation of human-machine communication
  • Case handling with innovative case extraction
  • High-precision case handling by means of 4 servo-controlled toothed belts with lugs
  • Simple, reproducible format changeover
  • New, intelligent safety concept
  • Machine guard with soft closure
  • Easy operation and maintenance - one control system for robots and basic machine
  • Simple, reproducible format changeover in less than 10 minutes
  • Optimum accessibility for format changeover and cleaning from operating and non-operating side
    • Machine dimensions3130 x 2120 x 2350 mm [L x W x H]
    Case typeAmerican case
    Sealing methodtape / hotmelt glue
    Min. format rangetape 140 x 110 x 100 mm [L x W x H]
    hotmelt 140 x 85 x 100 mm [L x W x H]
    Max. format rangetape 500 x 350 x 350 mm [L x W x H]
    hotmelt 500 x 350 x 350 mm [L x W x H]
    Performanceup to 25 cases/min.
    Control systemSchneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)
    x
    collating table
    pac robot collating
    line distributor
    video 1 bottles
    video 2 bottles
    video 3 bottles

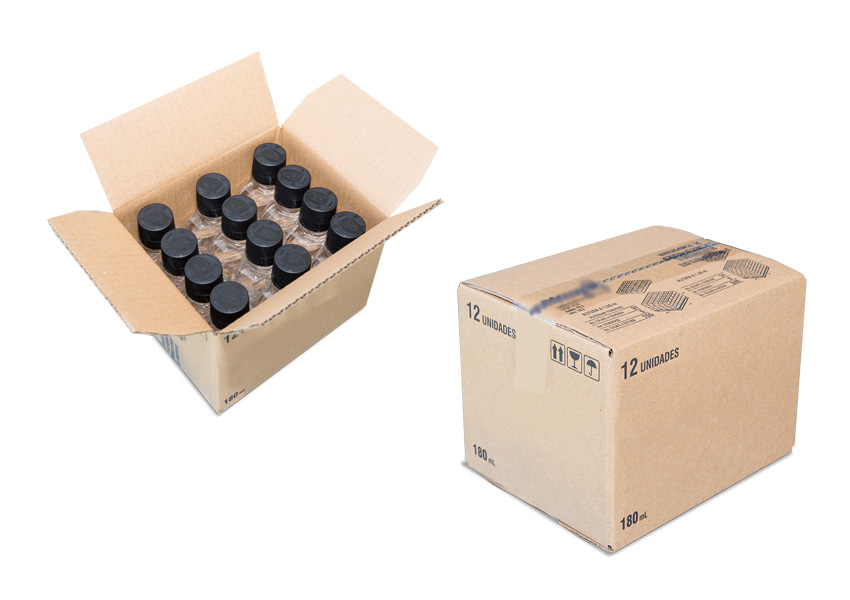

    Application
    Technology
    Action
    Layout
    SYSTEM / DETAILS

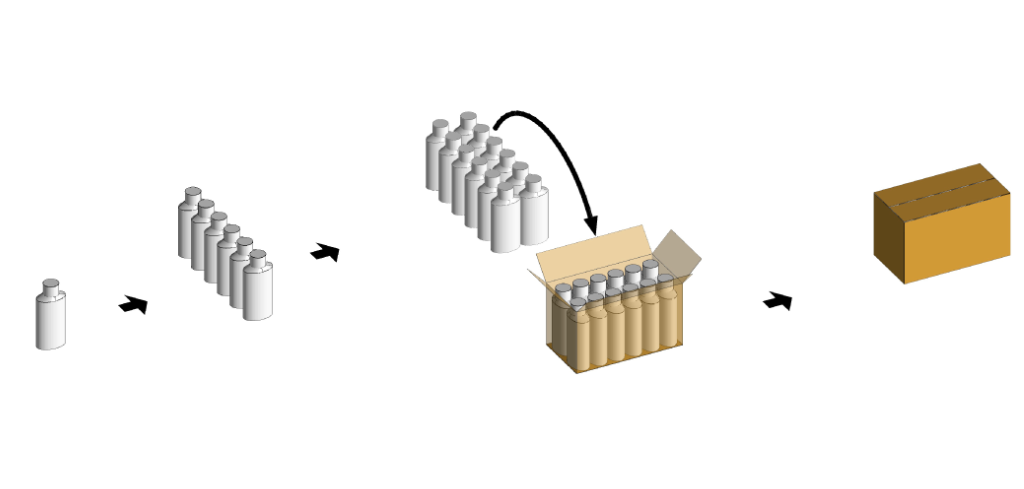

    Product flow TLC
    Case errecting process
    Robot unit
    Case closing process
    VERSIONS
    HANDLING SYSTEMS
    ACCESSORIES
    FEATURES
    Tape Tape change
    Multiple Track distributor 2 lane distributor 3 lane distributor 4 lane distributor
