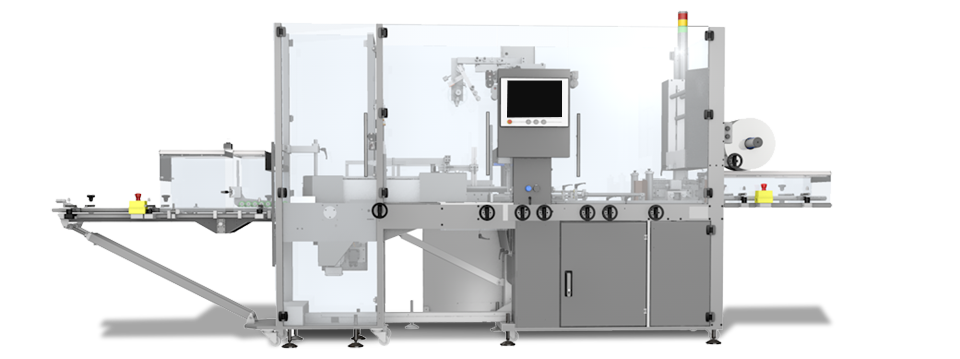

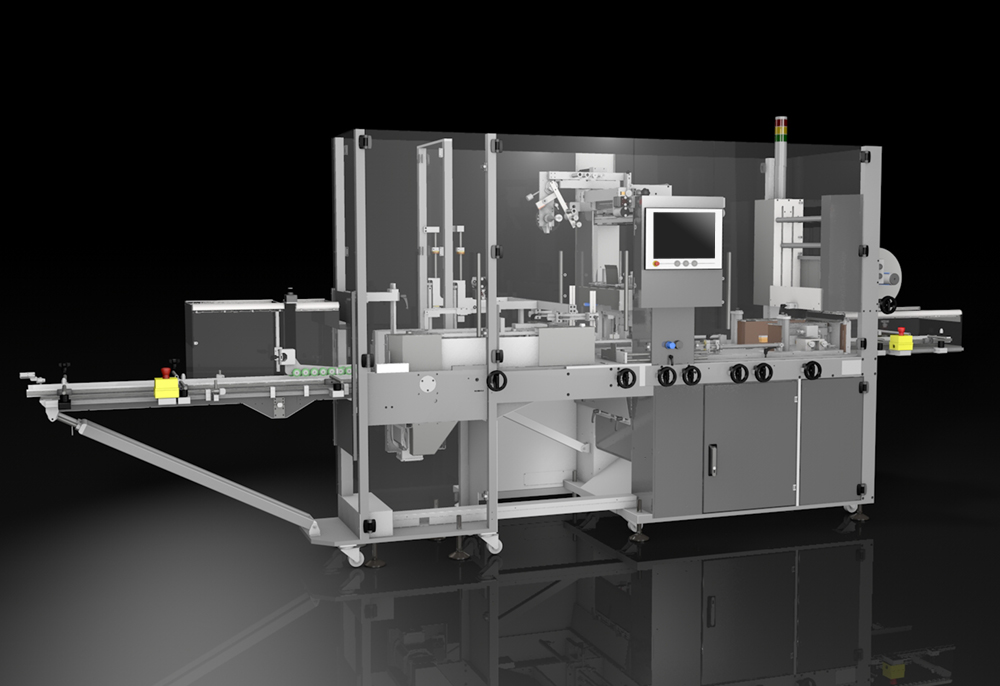

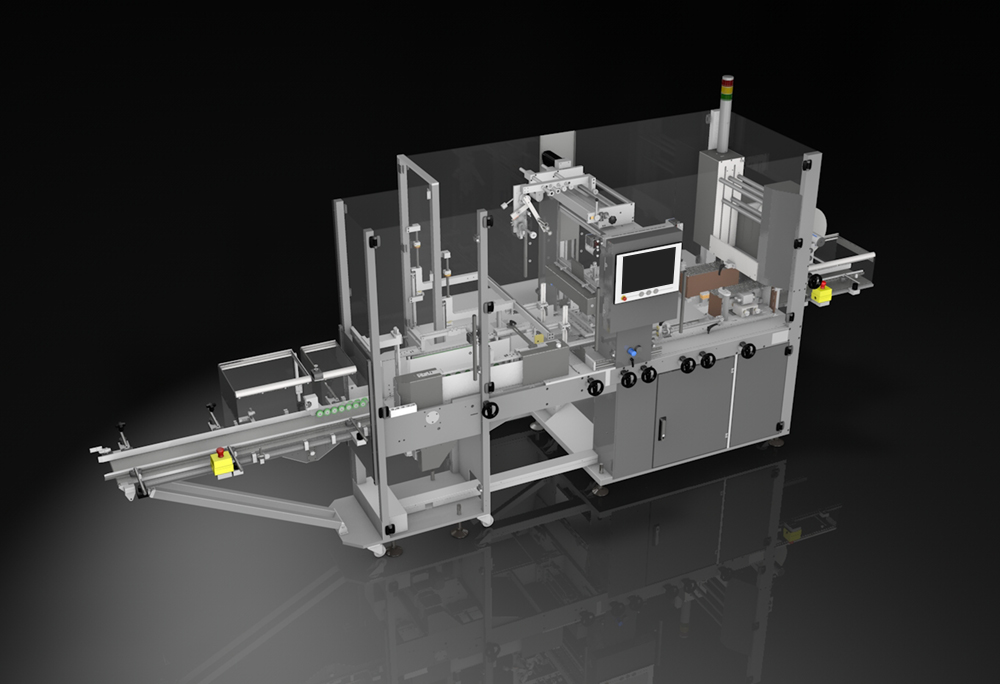

FULL OVERWRAPPER
PEWO-fold 2
Benefits

  • Multifarious and safe packaging - for all kinds of products
  • Wear-free sealing system
  • High-speed - for ultimate system efficiency in 24/7-operation
  • Precision - gentle product handling for all shapes and surfaces within a large format range
  • Splicer for fully automatic film reel changeover
  • One of a kind - maintenance free / tool less film transport system
  • Intelligent, fully synchronized servo technology
  • Outstanding operating comfort and optimum accessibility
  • Maintainability and quick format changeover
    • Machine dimensions 4000 x 1350 x 2100 mm [L x W x H]
    Features collating via stacker and/or crossfeed pusher
    Min. format range product 30 x 20 x 60 mm [a x b x h]/ collation 60 x 60 x 20 mm [IW x IL x IH]
    Max. format range product 350 x 90 x 250 mm [a x b x h] / collation 250 x 350 x 140 mm [IW x IL x IH]
    Performance up to 50 bundles/min.
    Control system Schneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)
    Application
    Technology
    Action
    Layout
    SYSTEM / DETAILS
    Wrapping flow
    Cross sealing process
    Folding / processing
    Sealing process
