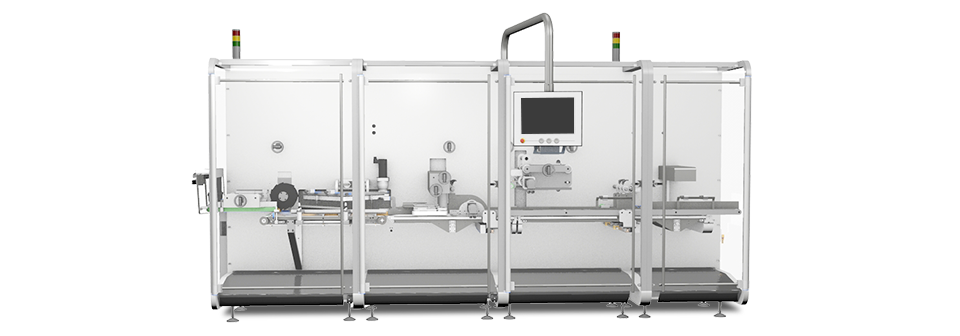

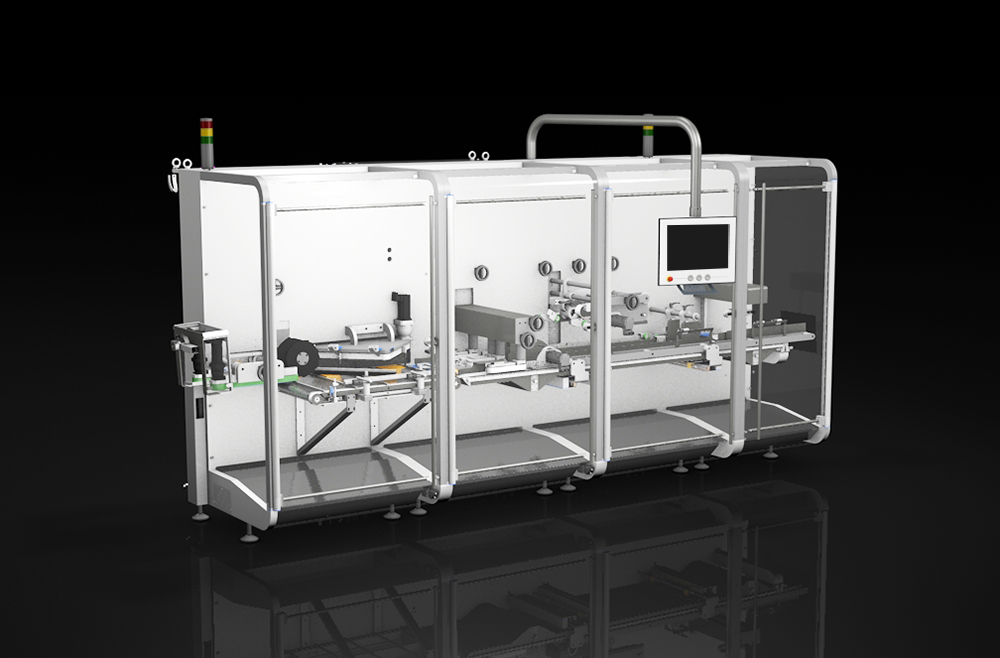

PEWO-fpc dl
Benefits

  • Unique technology for display packages with display tabs
  • Stand-alone unit for turning and collating folding cartons with 5th panels (hanging or display tabs)
  • High-grade, modular cantilever-style GMP design
  • Optimum accessibility due to separation of drive and production units
    • Machine dimensions2000 x 1150 x 2100 mm [LxWxH]
    Featuresdual-lane, execution
    Min. format rangeproduct 25 x 20 x 60 mm [a x b x h] / collation 75 x 20 x 60 mm [L x W x H]
    Max. format rangeproduct 80 x 50 x 180 mm [a x b x h] / collation 340 x 180 x 50 mm [L x W x H]
    Performanceup to 400 cartons/min
    Control systemSchneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)
    Application
    Technology
    Action
    Layout
    SYSTEM / DETAILS

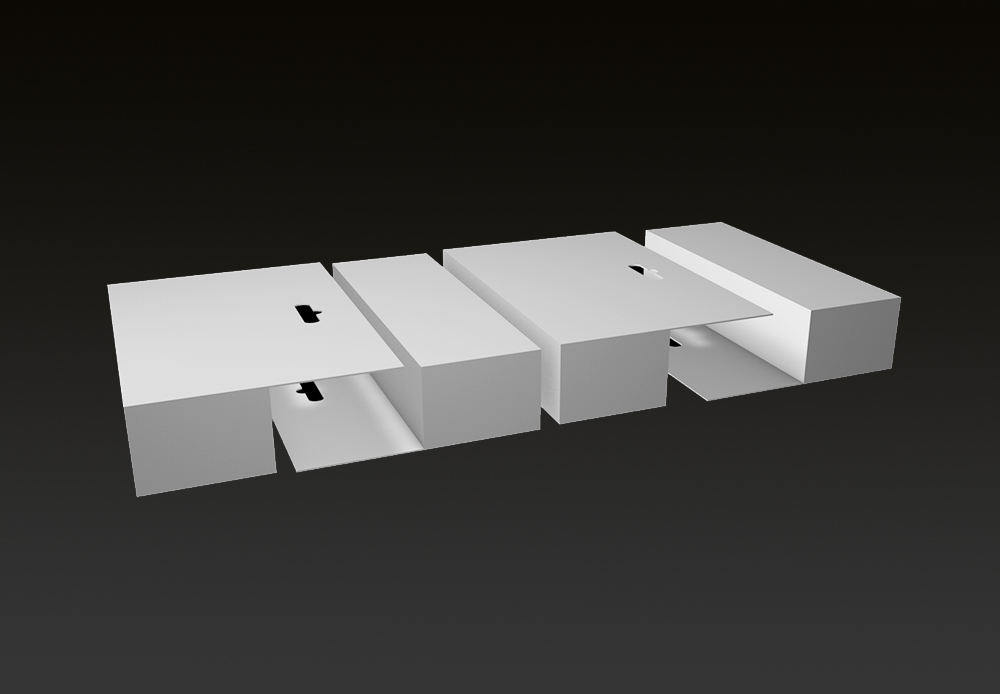

    Nesting
    Turning device
    Collating device
    Reject unit
