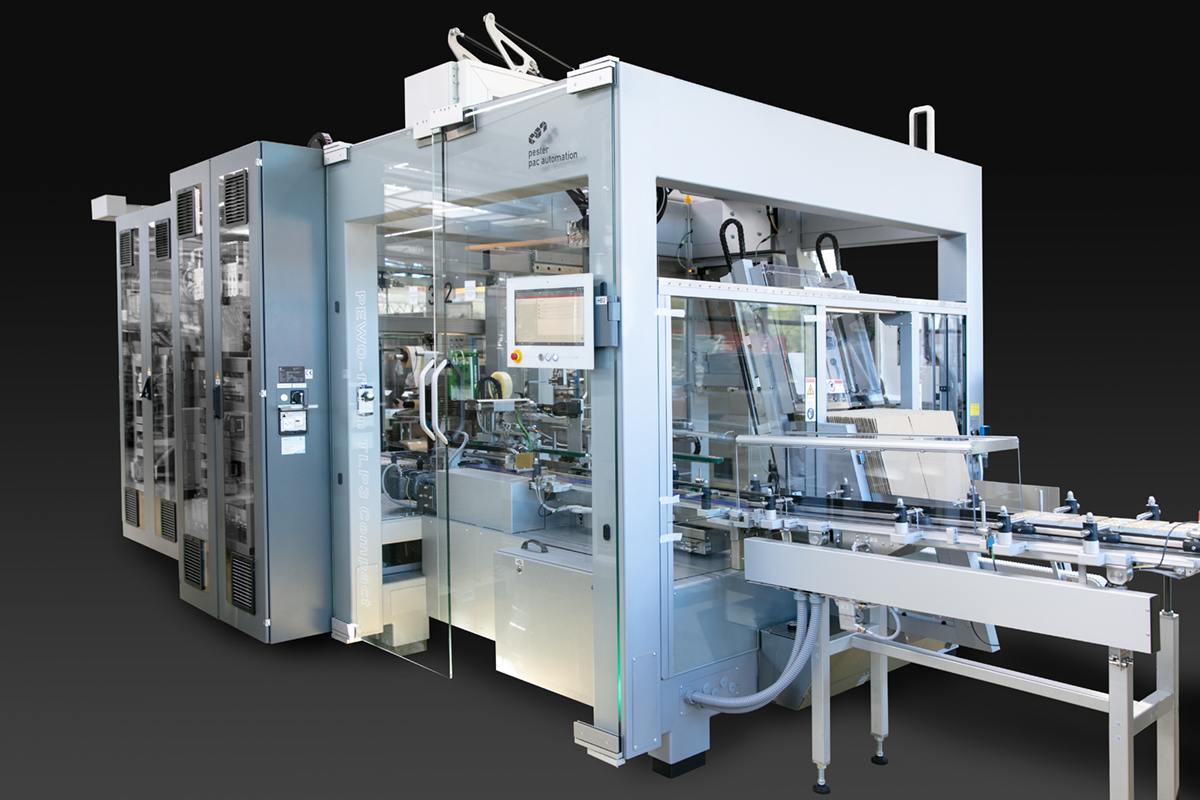

TOP LOADING CASE PACKER & PALLETIZING
PEWO-form TLP 3 Compact
Benefits

  • New generation of human-machine communication
  • Interactive 3D visualization
  • Intuitive machine operation via 15" multi-touch display
  • Doors made of safety glass with soft closing function: durable, antistatic, scratch-proof
  • High-speed machine performance with low life-cycle costs
  • Compact, ergonomic, GMP-compatible machine design
  • Multifarious collation configurations for folding cartons & bundles
  • Quick and easy format changeover

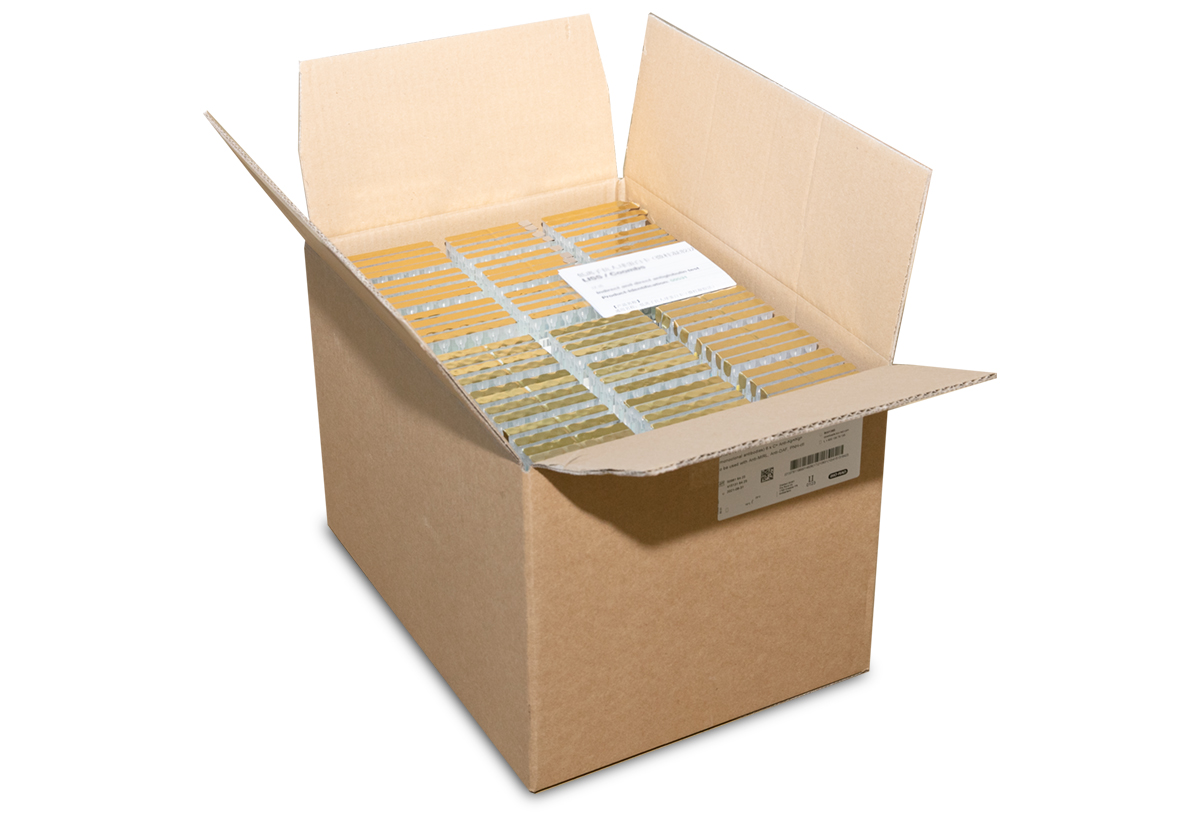

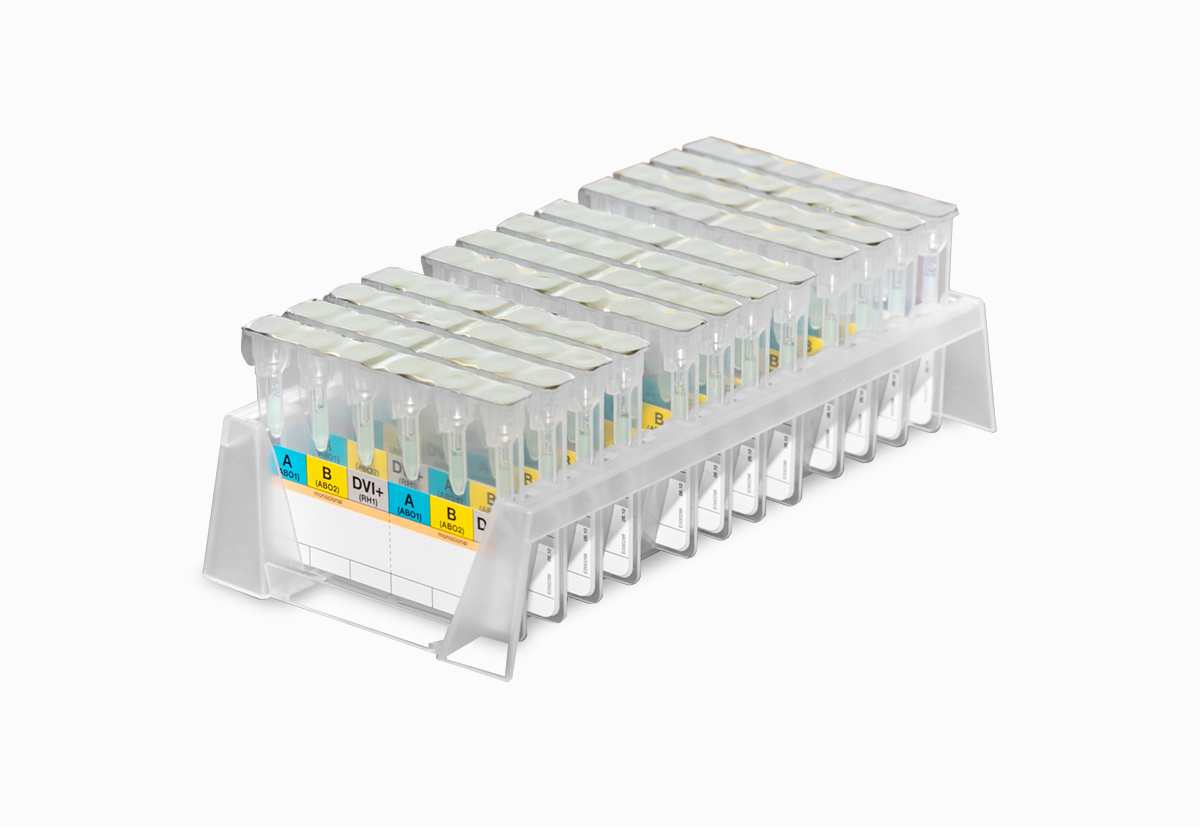

  • Loading racks into case
  • Feeding slipsheets into case

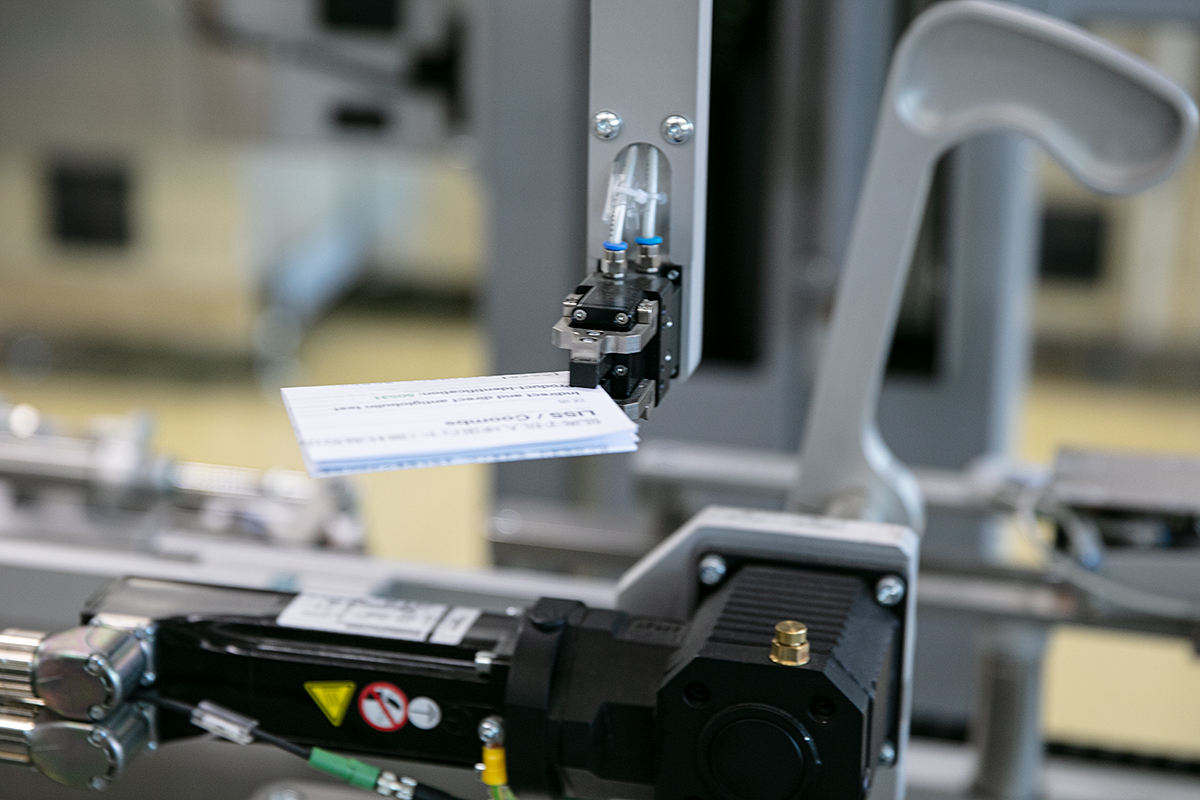

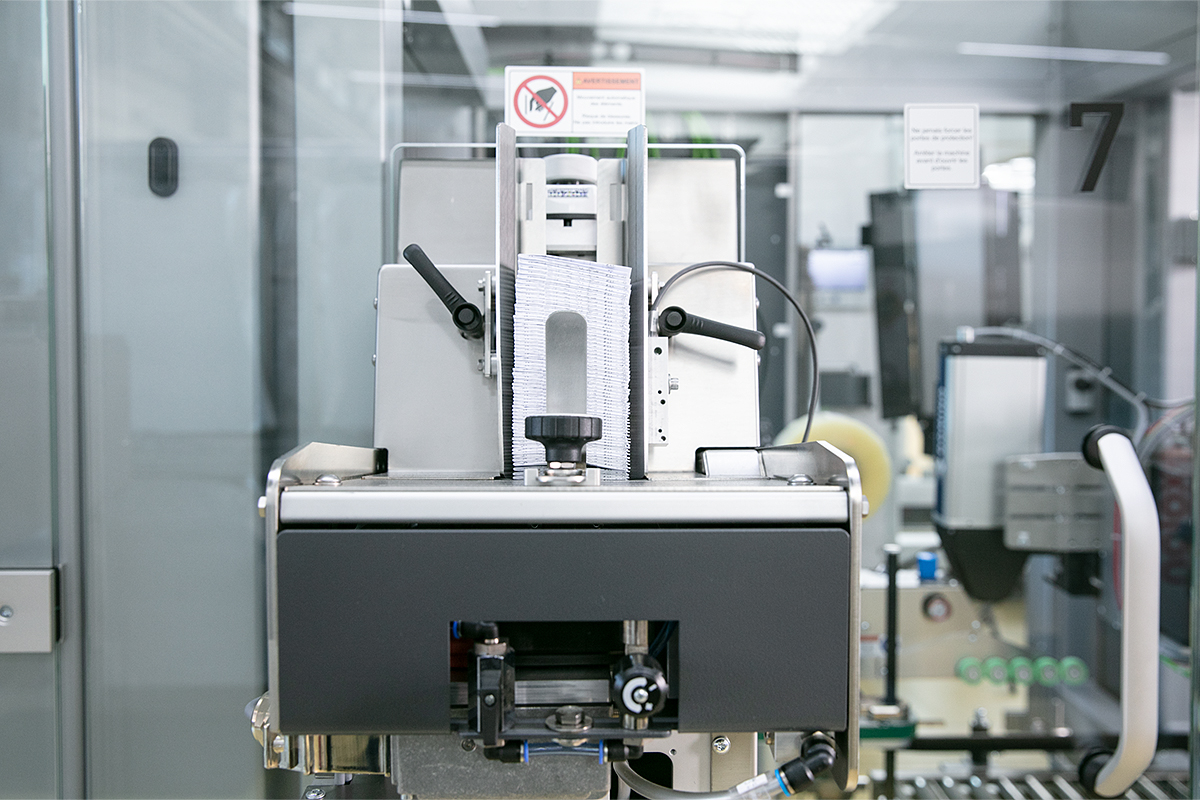

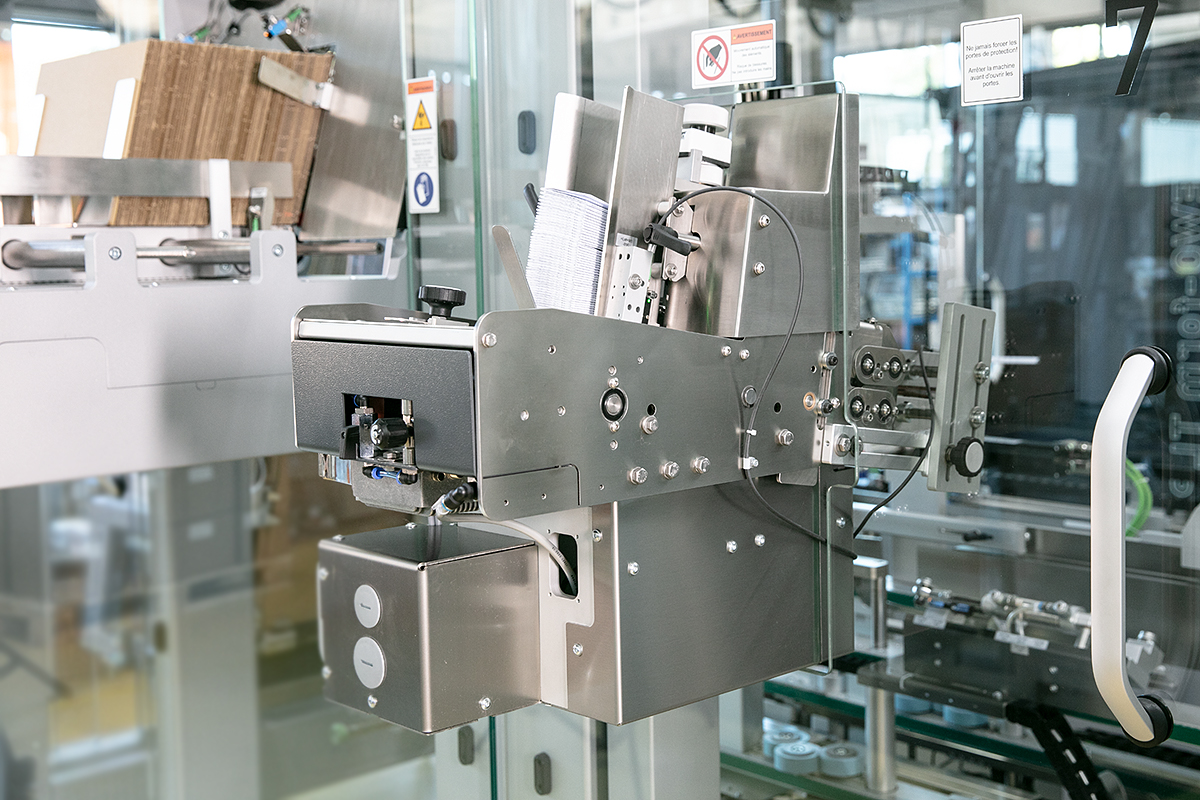

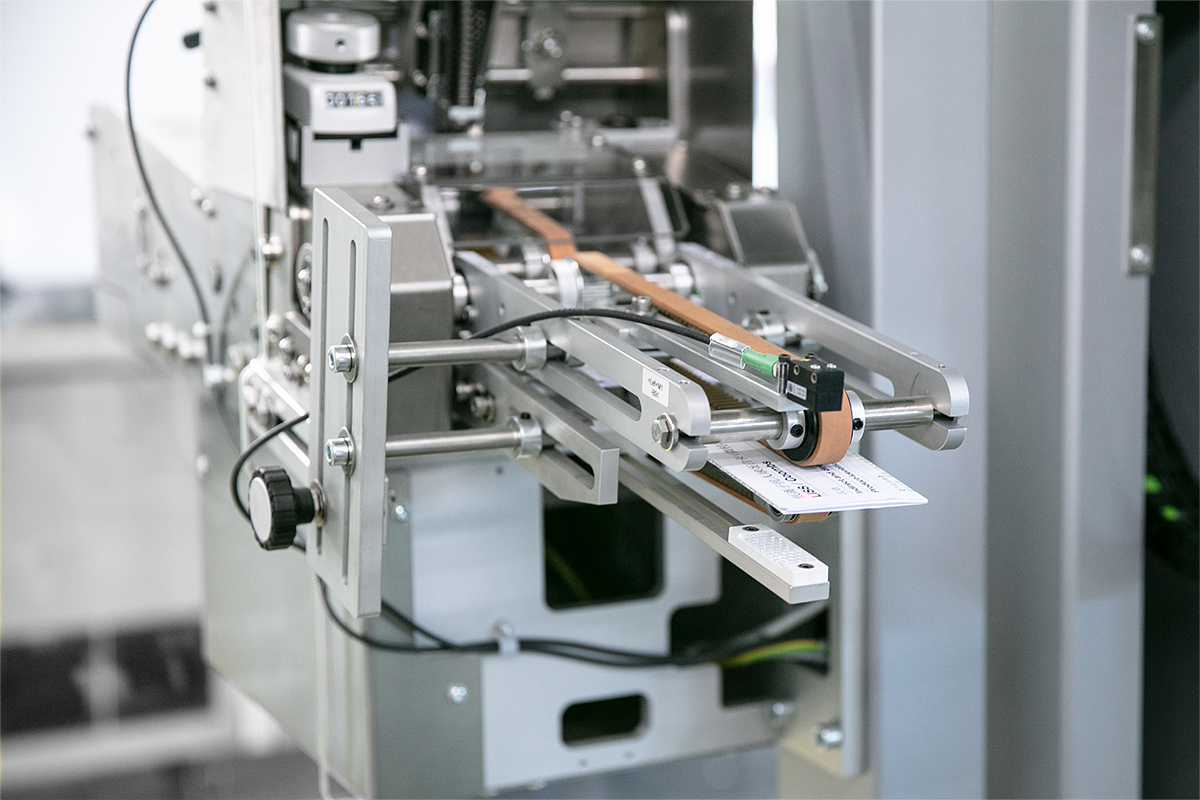

  • Feeding leaflet into case
    • New Pharma Machine Generation

    Design & Quality

  • Clean, modern pharmaceutical design with white color scheme in RAL 9003
  • Rectilinear, large-scale and frameless design for an even higher quality appearance
    •
    Functionality

  • Noise reduction due to better shock-absorbing properties
  • IP54 conform

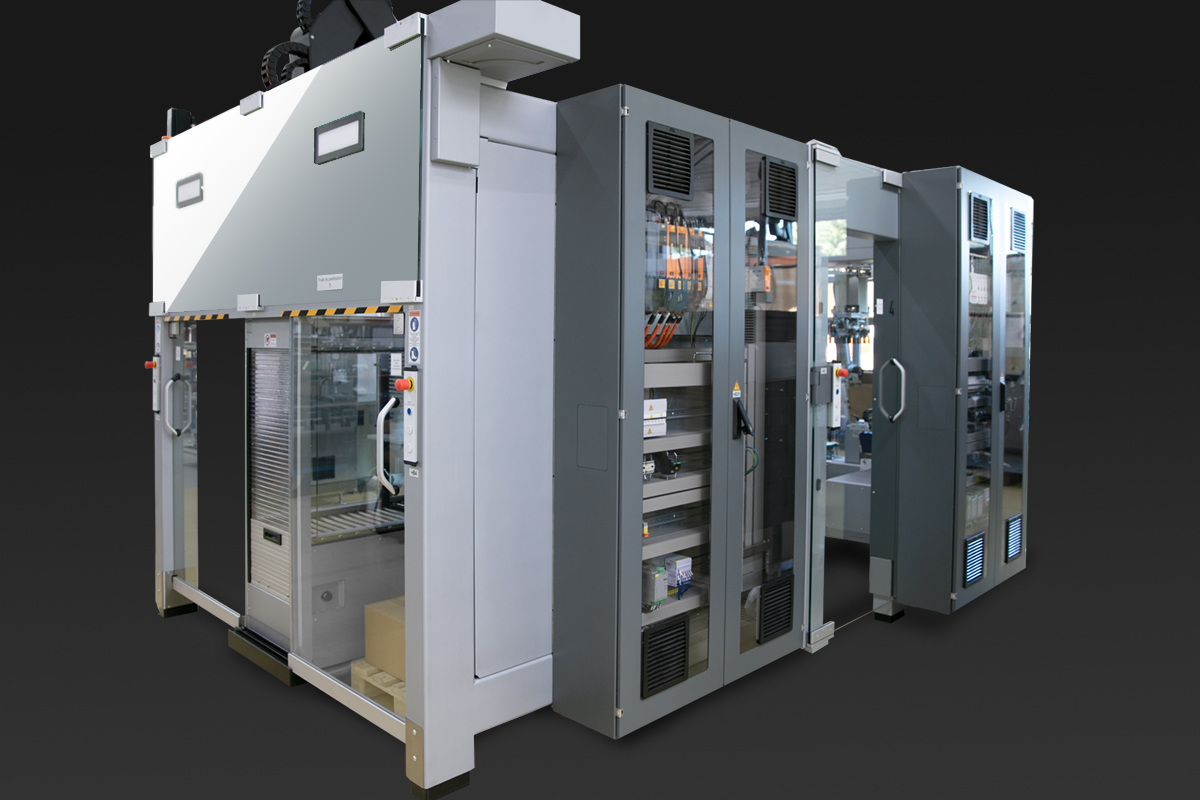

  • Separation of 24V / 400V circuit in the electrical cabinet
    •
    Sustainable & future-proof

  • Laminated safety glass: state-of-the-art material replaces plastic for safety guarding
  • Age-resistant materials of protective cover guarantees lifelong transparency
  • Digitalization and Design: upgrade of pester tangius 4.0 HMI operating concept
    •
    User friendly & easy to clean

  • Antistatic und easy to clean with any cleaning agent
    •
    Machine dimensions7220 x 3300 x 2750 mm [L x W x H]
    FeaturesLoading racks into cases
    Min. format rangecase 200 x 140 x 190 mm [L x W x H]
    Max. format rangecase 600 x 400 x 470 mm [L x W x H]
    Performanceup to 12 cases/min.
    Control systemSchneider Electric PacDrive 3
    Robot SystemPac Robot & P15 Robot
    Pallet sizeEuro ( 1200 x 800 mm)
    Ceiling height3,25 m
    Case typeAmerican case
    Sealing methodTape
    Max. palletizing heightMax. palletizing height = 1400mm with pallet
    Application
    Technology
    In Action
    Layout
    SYSTEM / DETAILS

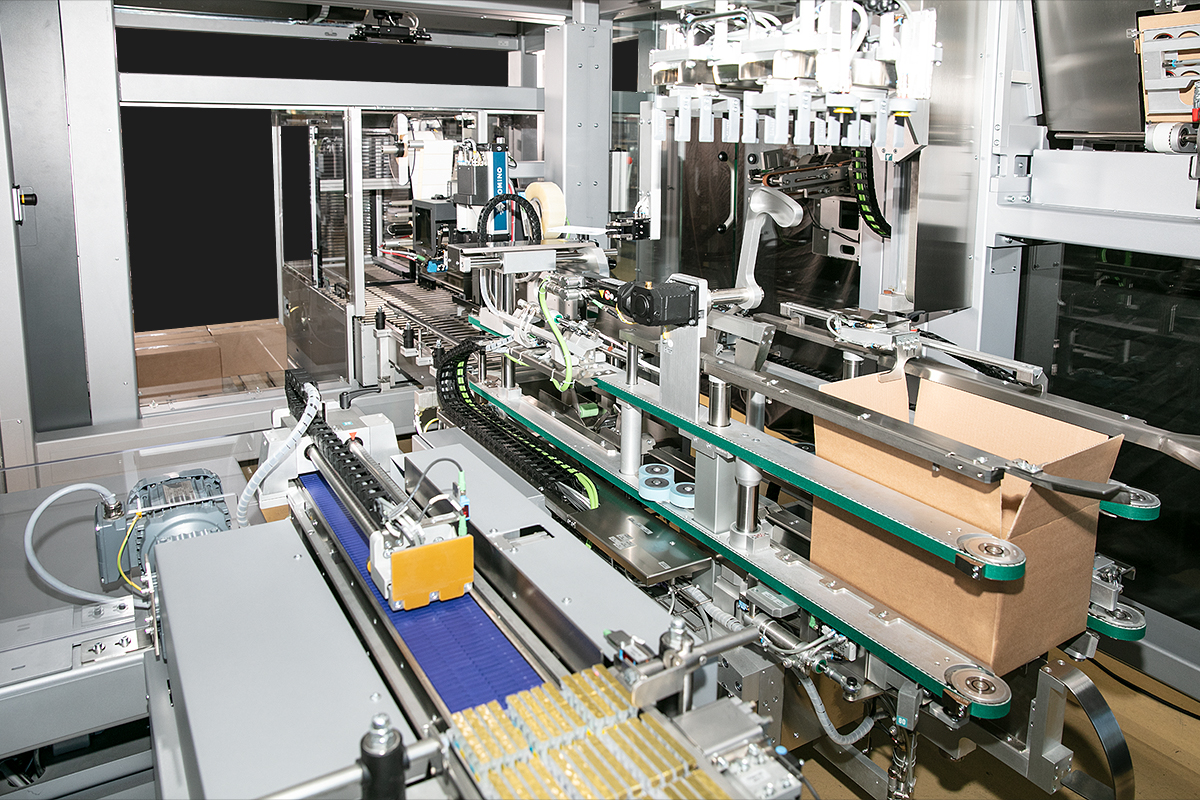

    Product flow TLP

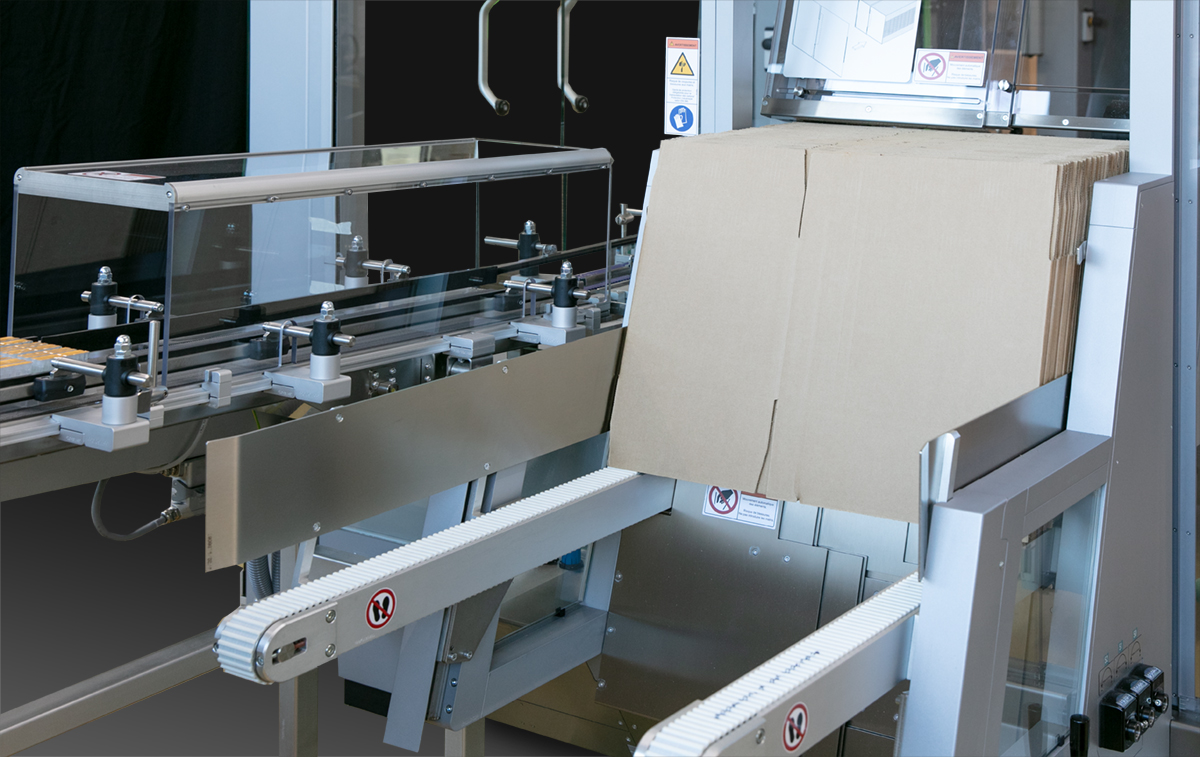

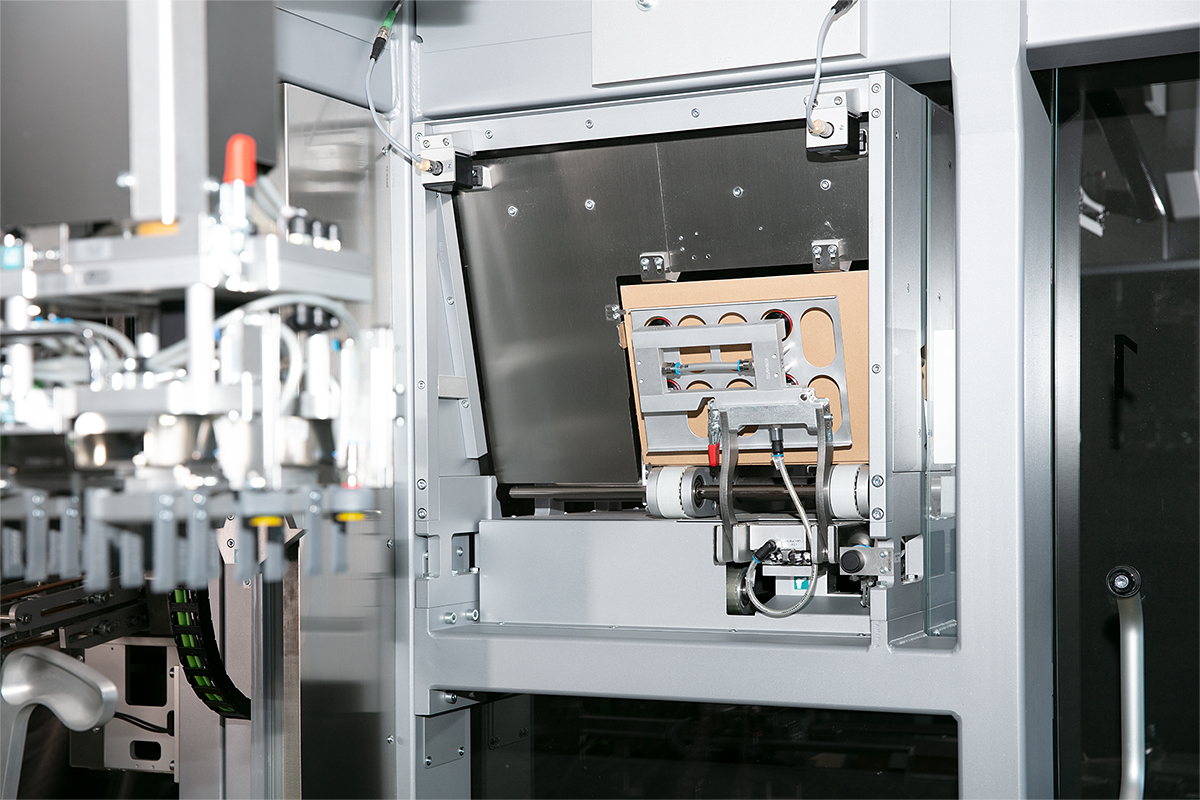

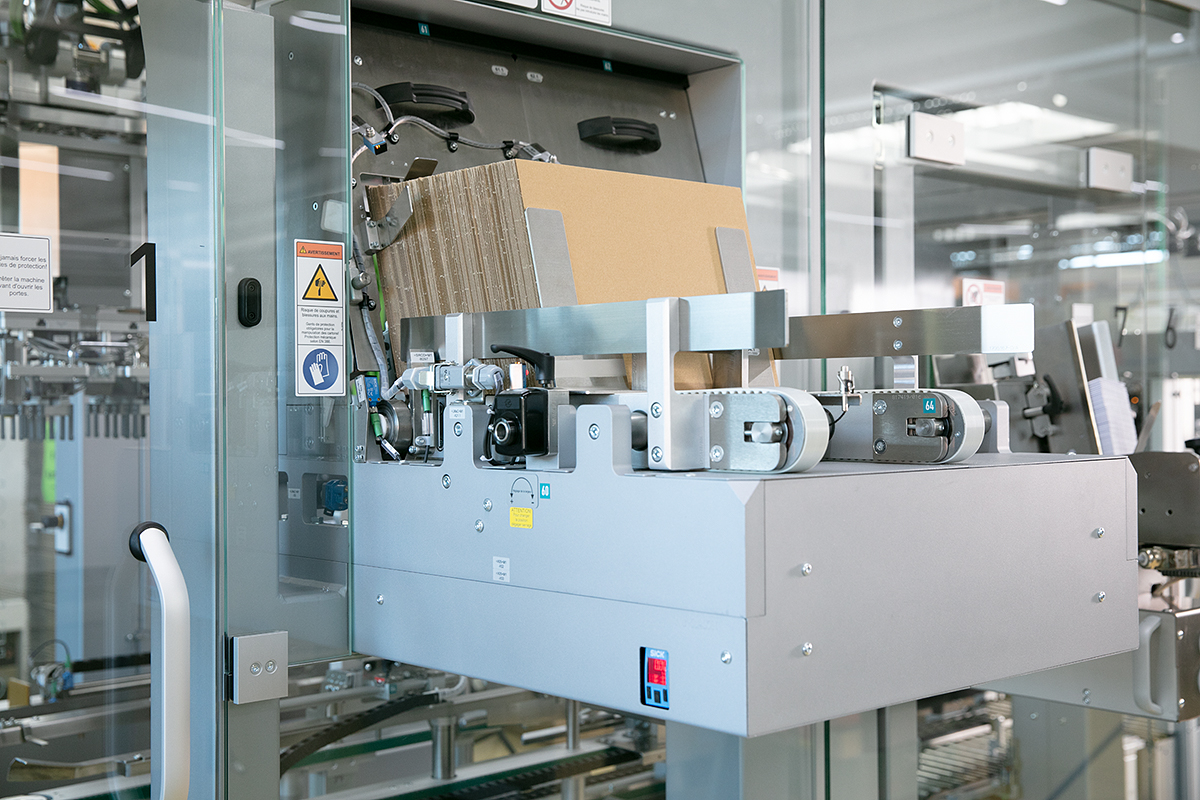

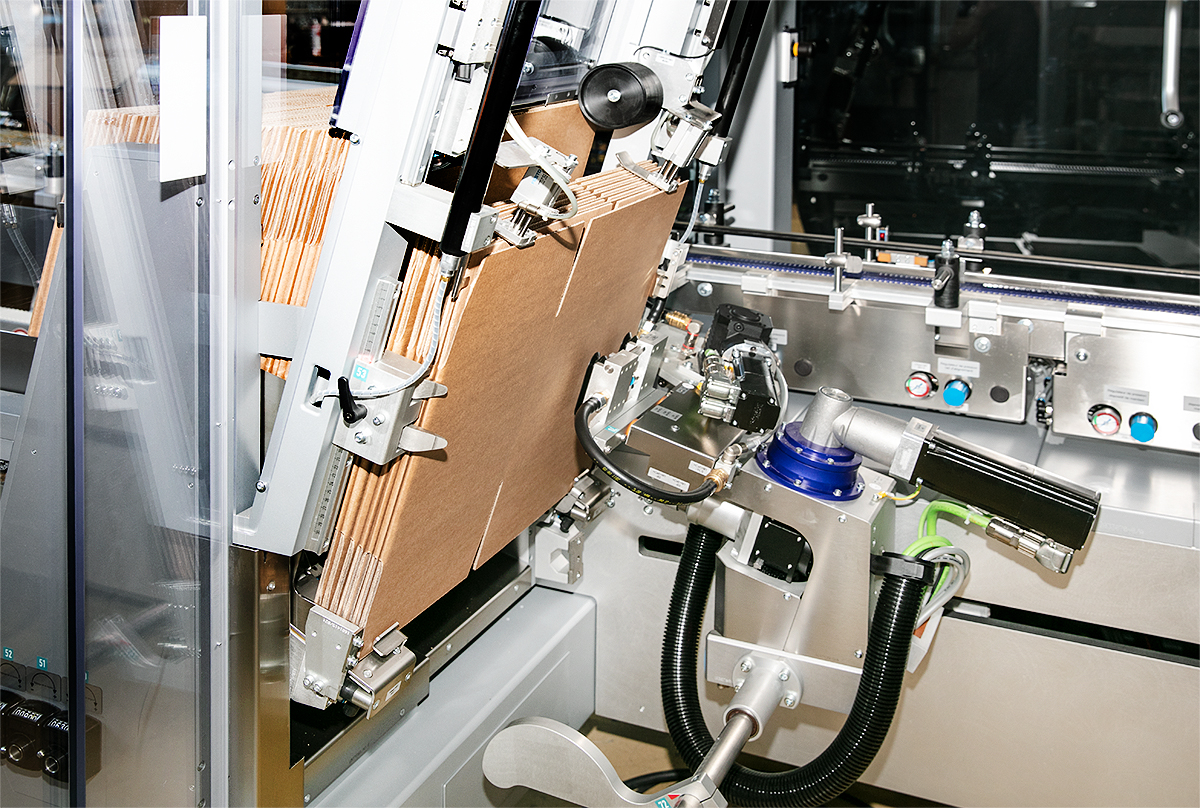

    Case errecting process

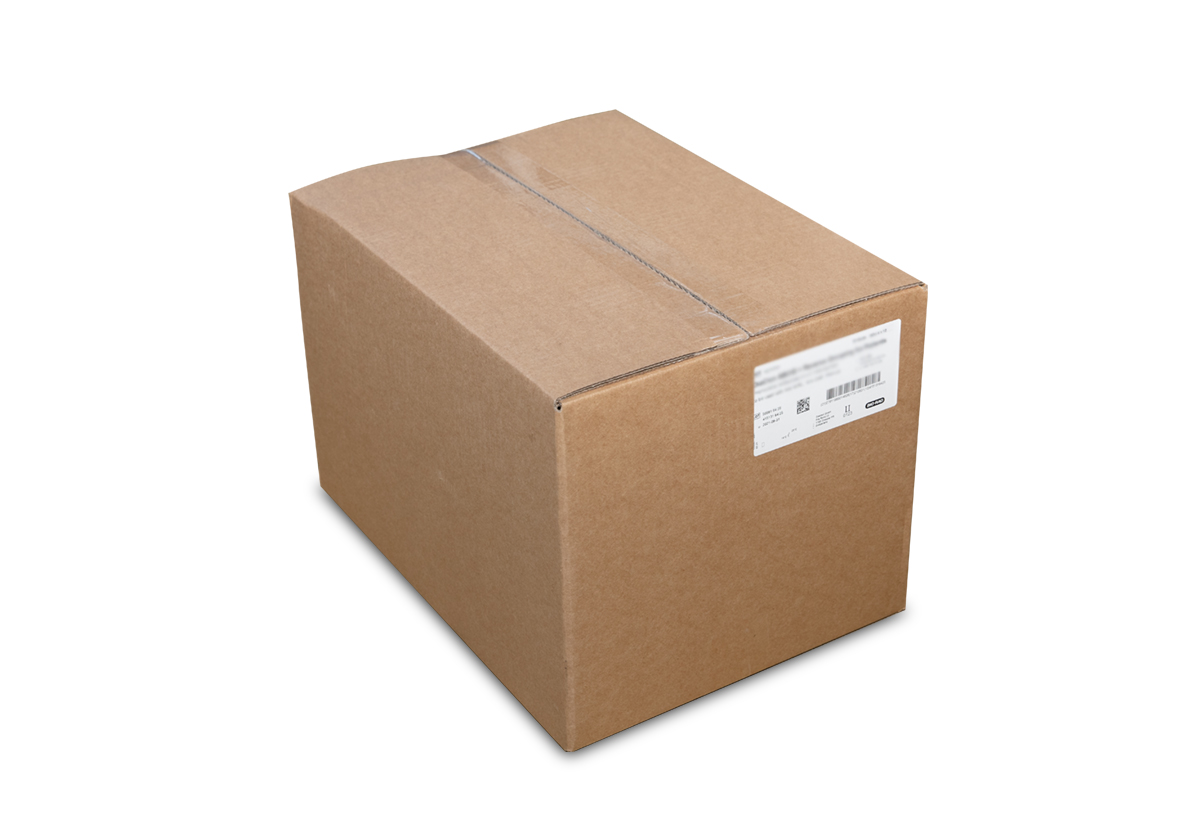

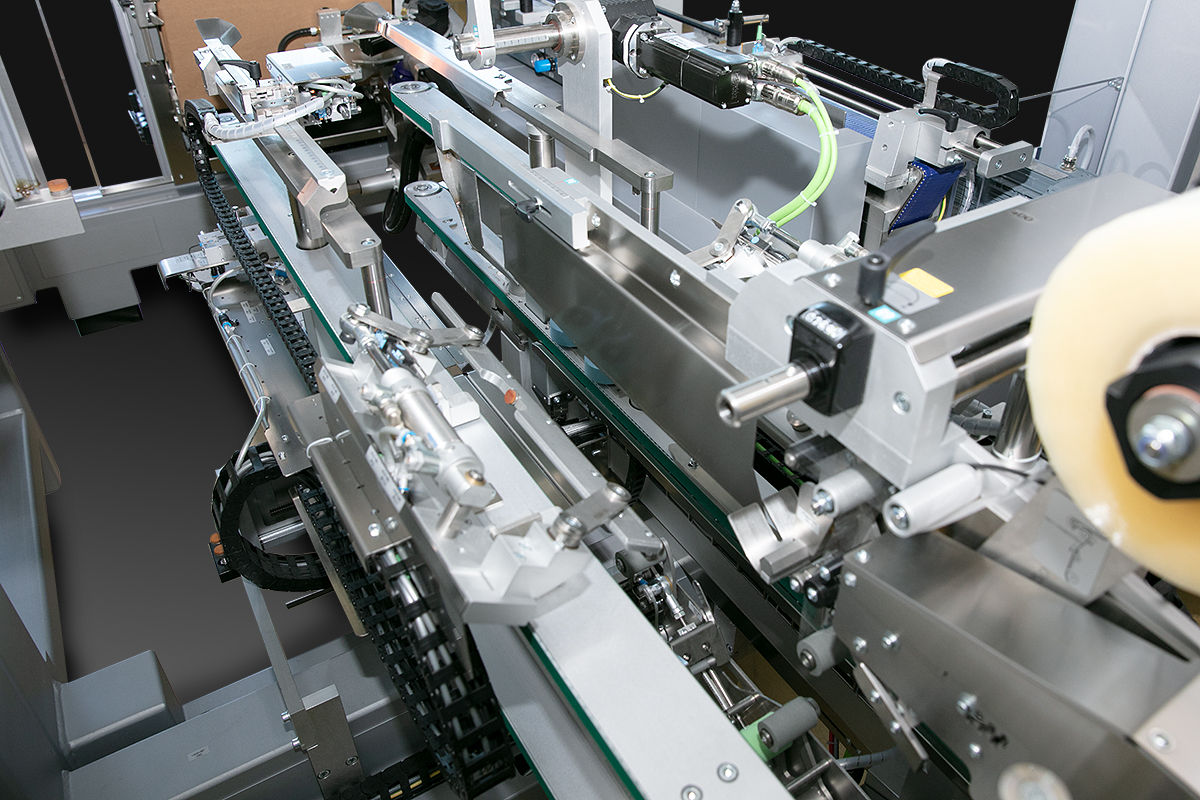

    Case closing process

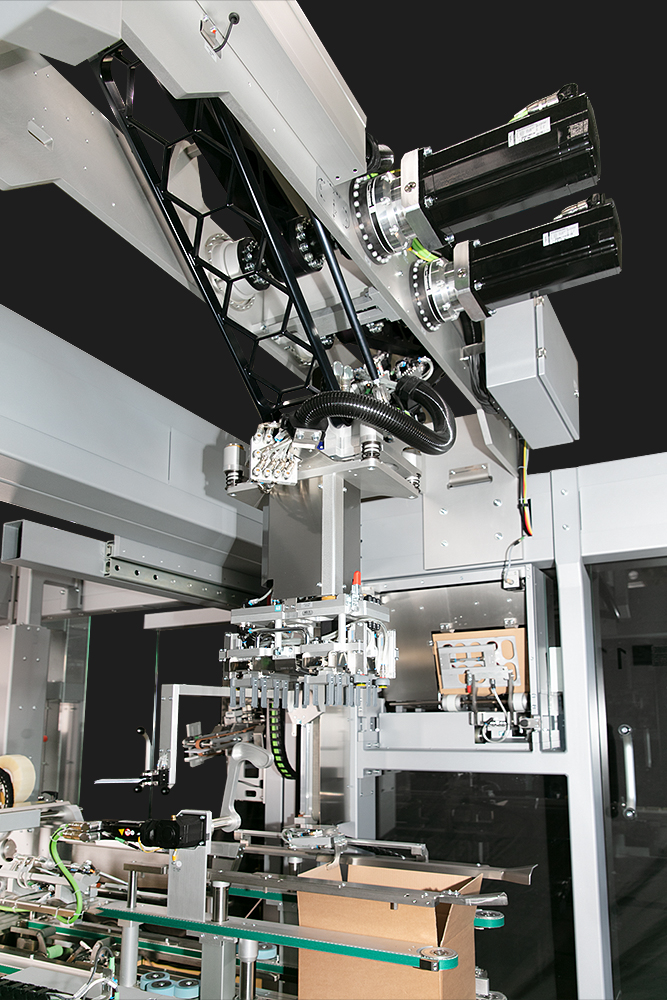

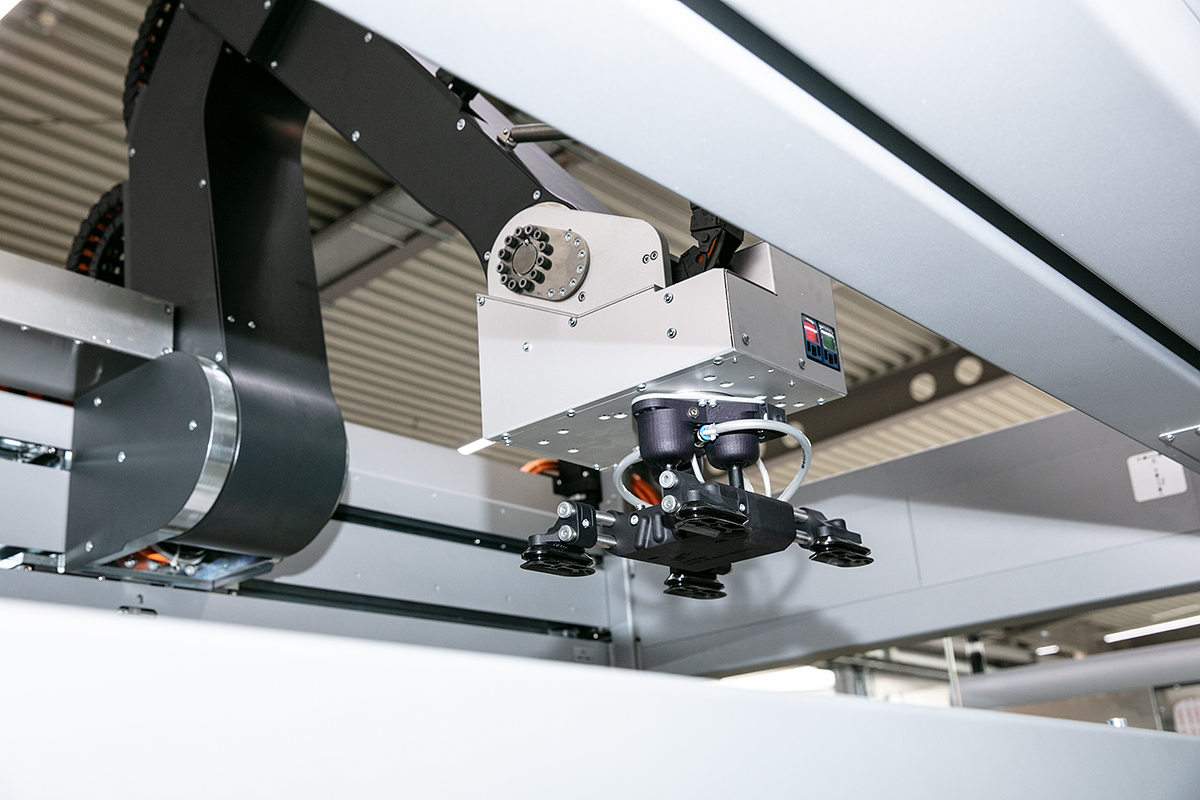

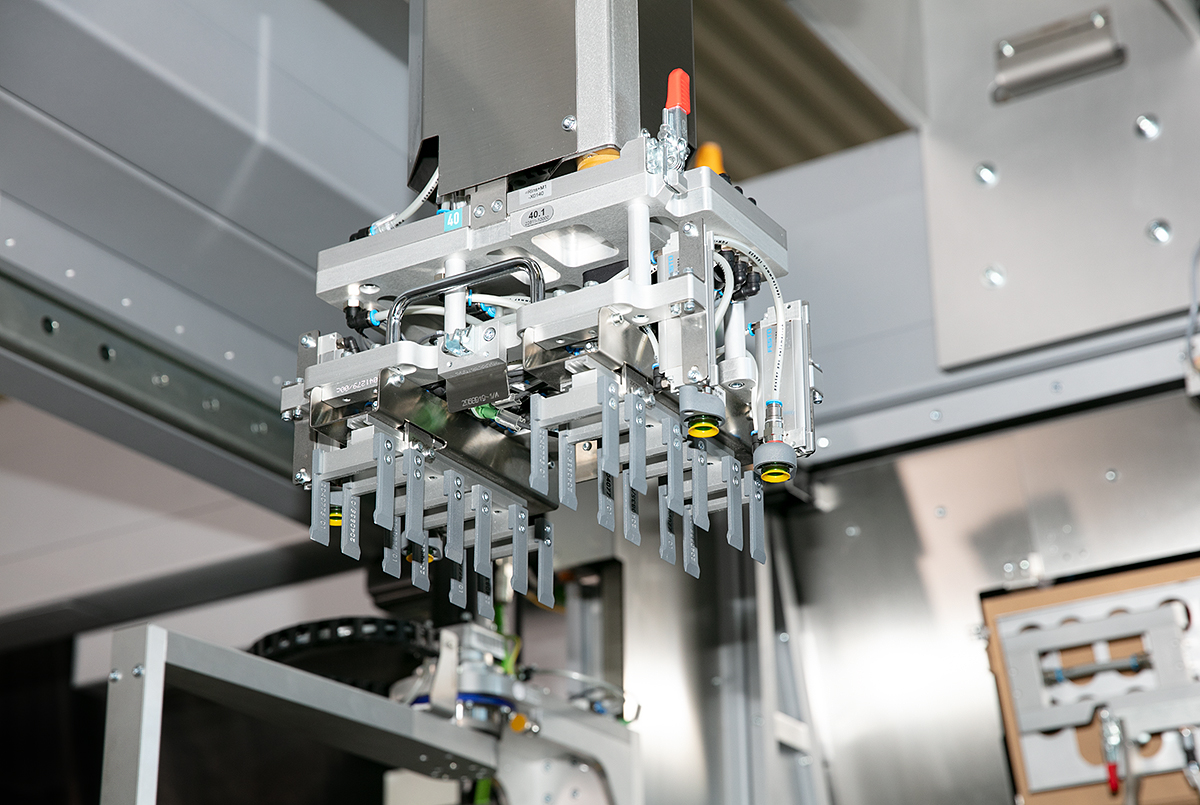

    Robot unit
