TOP LOADING CASE PACKER & PALLETIZING

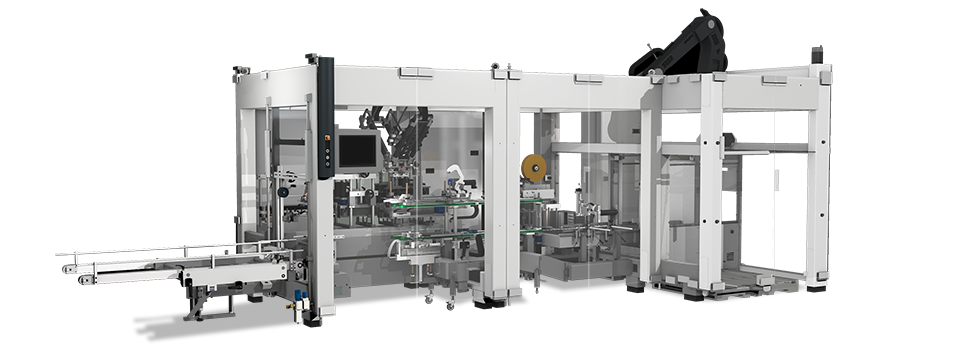

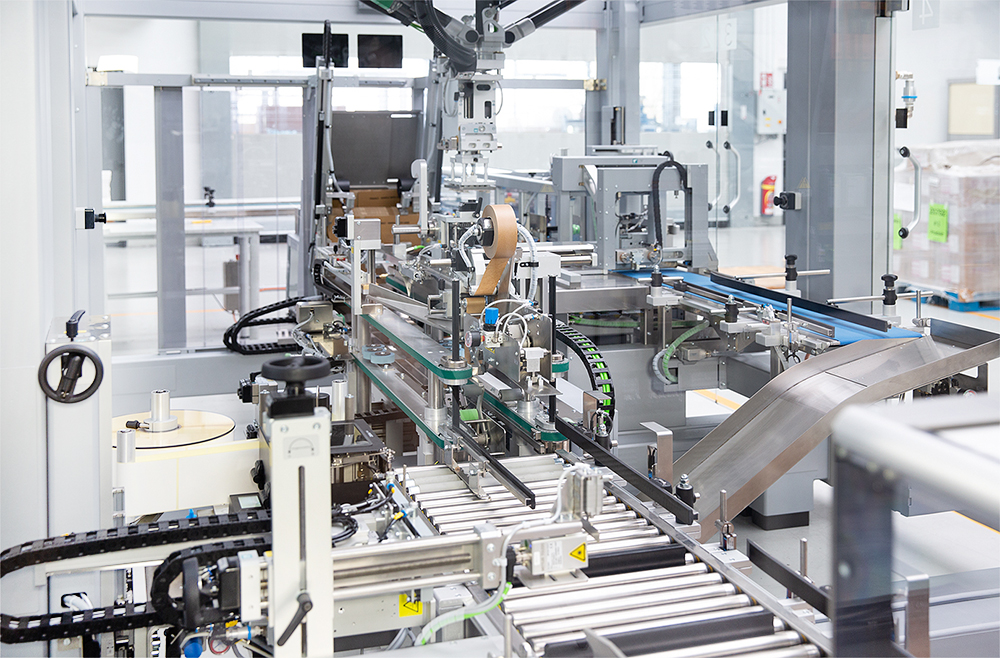

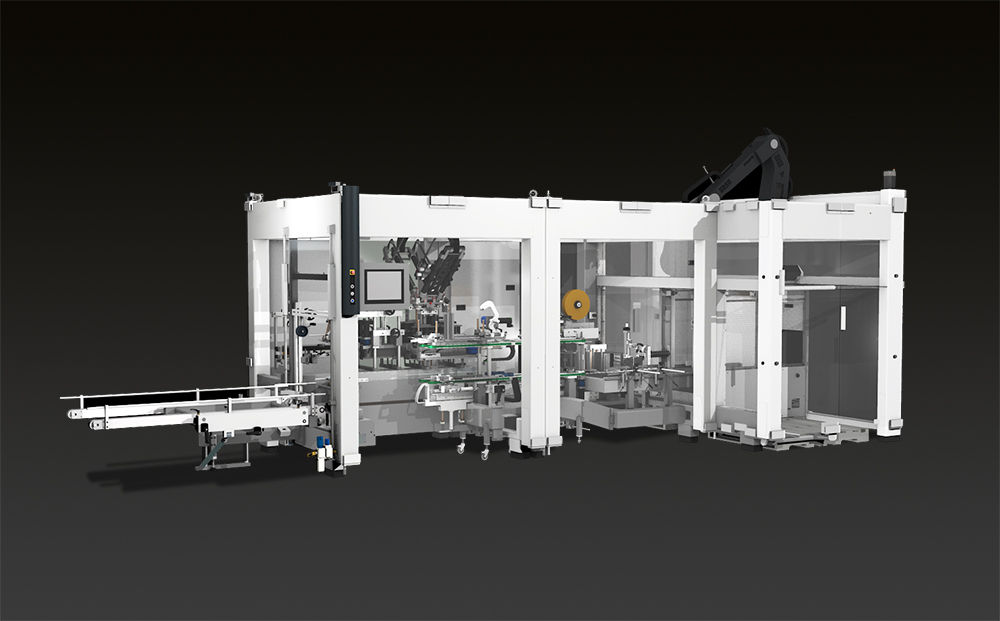

PEWO-form TLP 2 Compact
Benefits

  • New generation of human-machine communication
  • Interactive 3D visualization

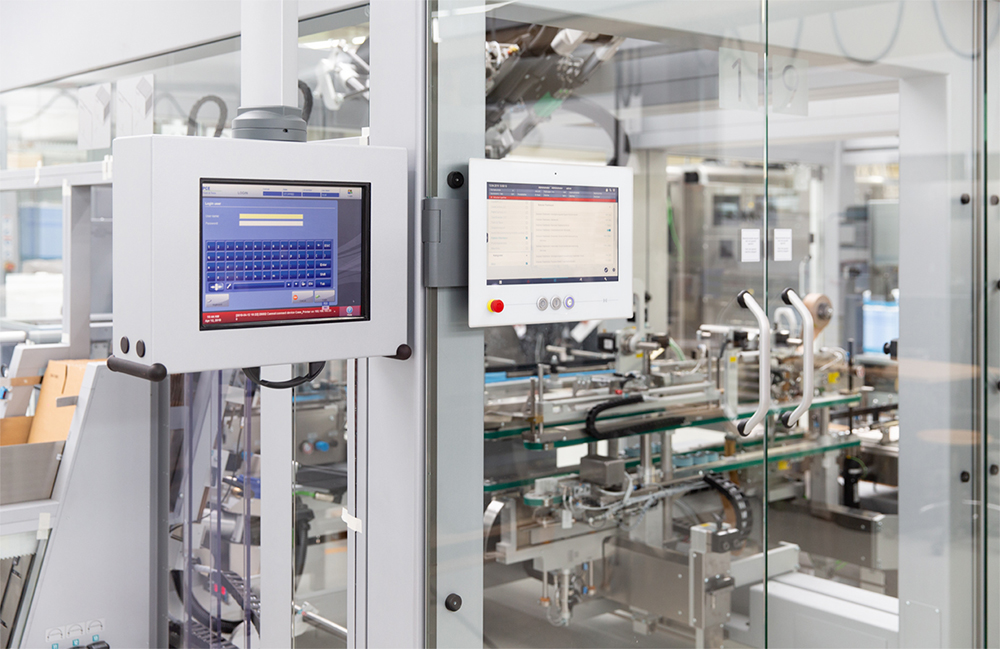

  • Intuitive machine operation via 15" multi-touch display
  • New modern GMP pharma design
  • Doors made of safety glass with soft closing function: durable, antistatic, scratch-proof
  • Transparent control cabinet
  • Customized solution depending on installation situation
  • Pre-defined interfaces for integration of Track & Trace system

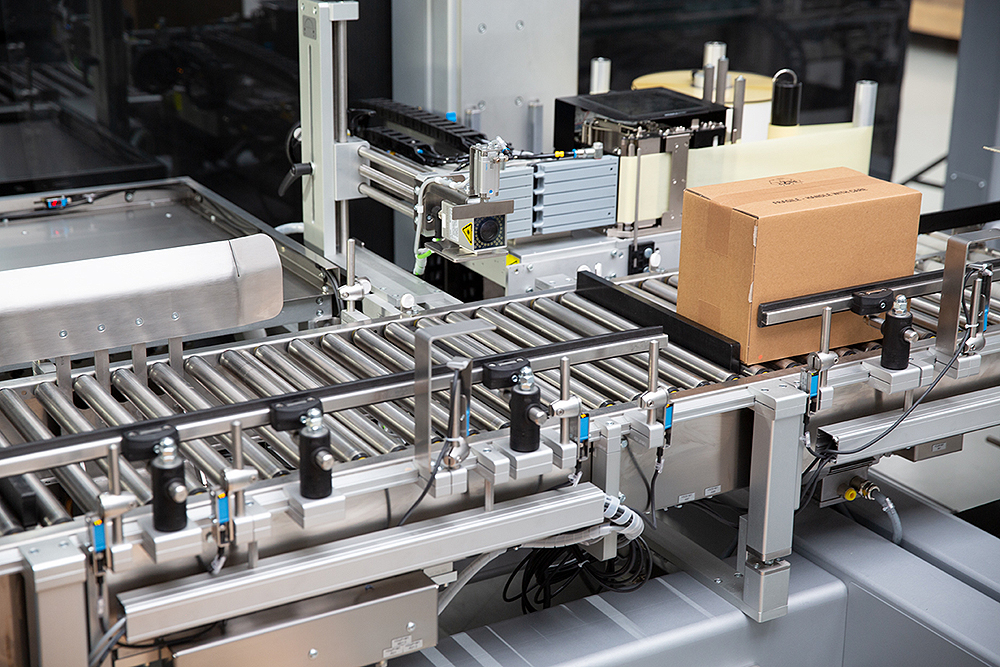

  • Innovative labeling technology

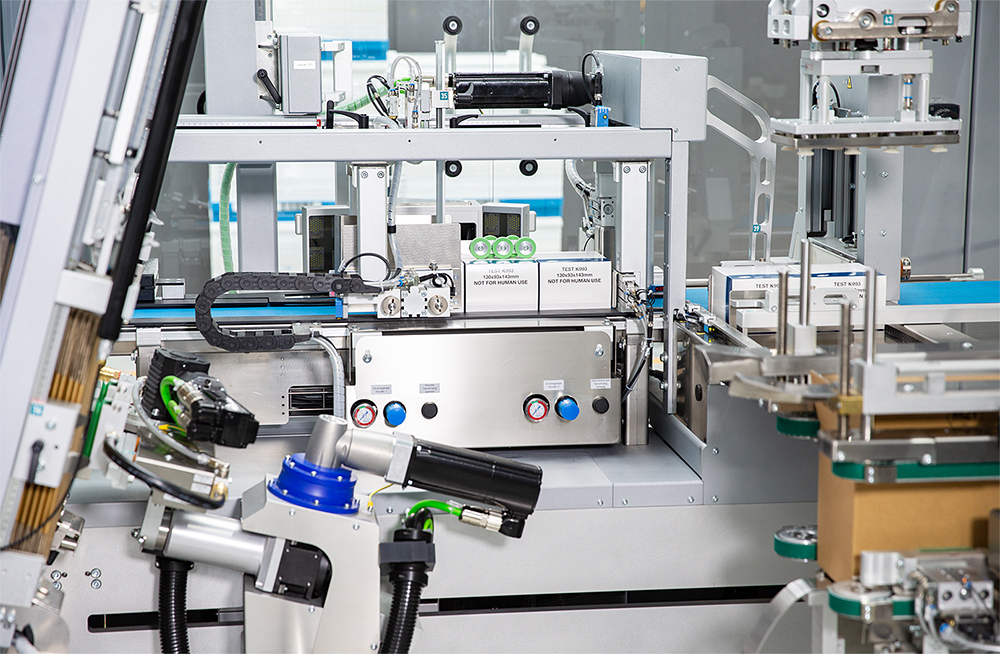

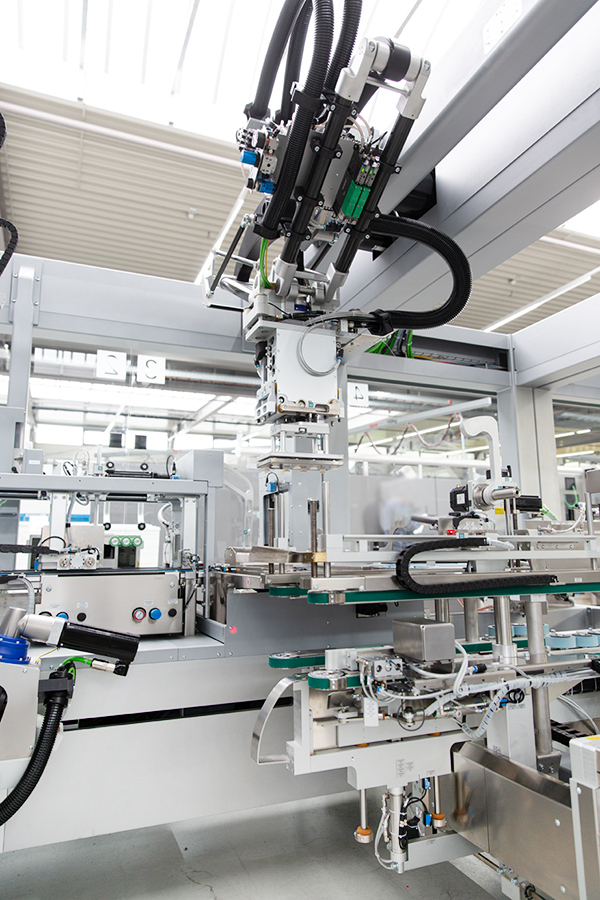

  • Robotics: pester pac robot 2 and pac robot P 15

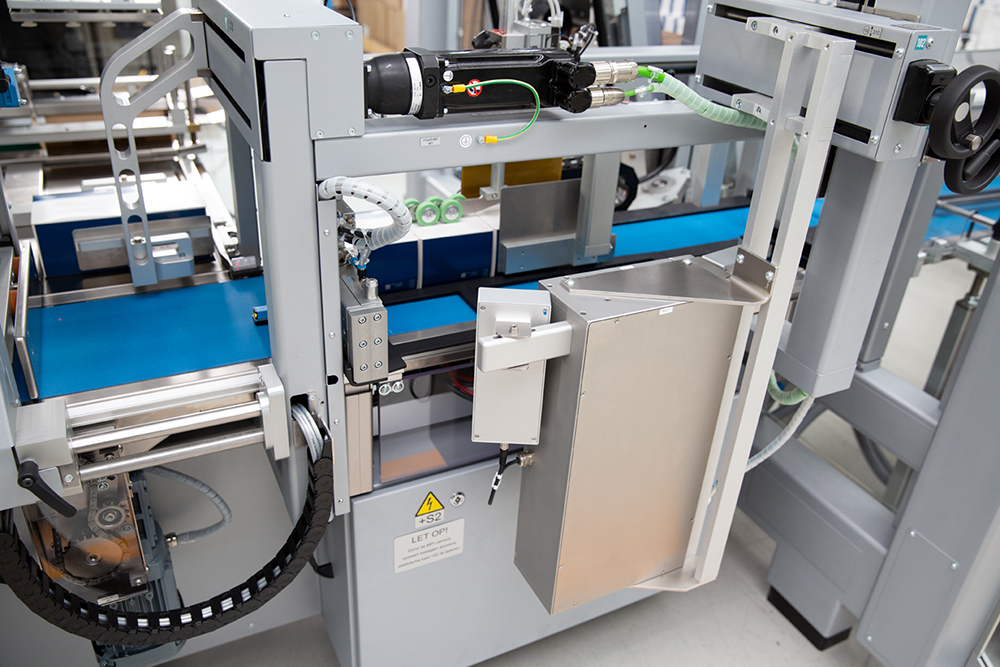

  • Case magazine for simple loading

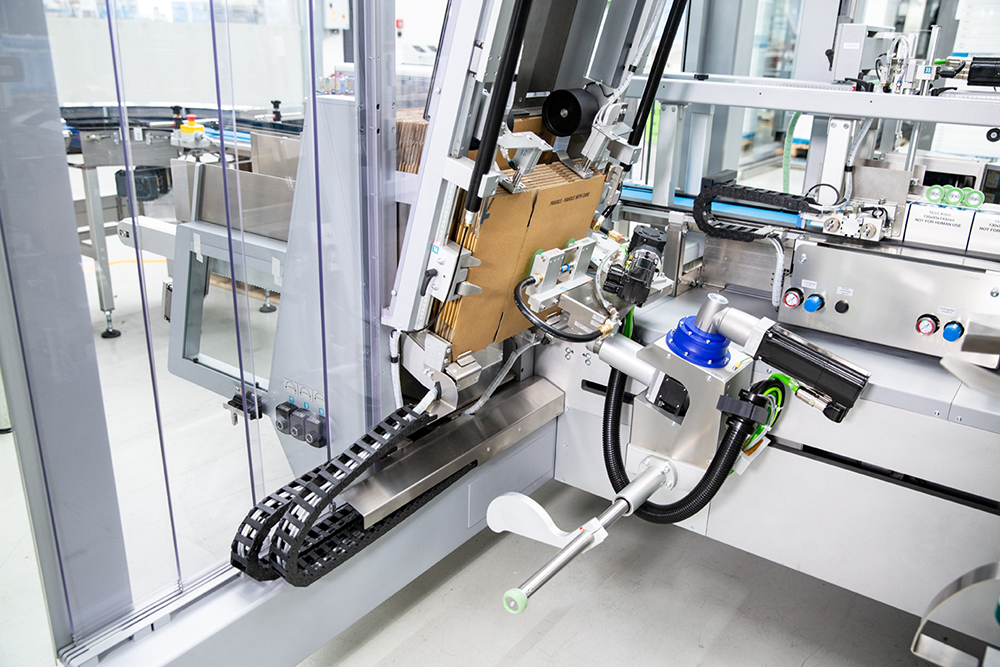

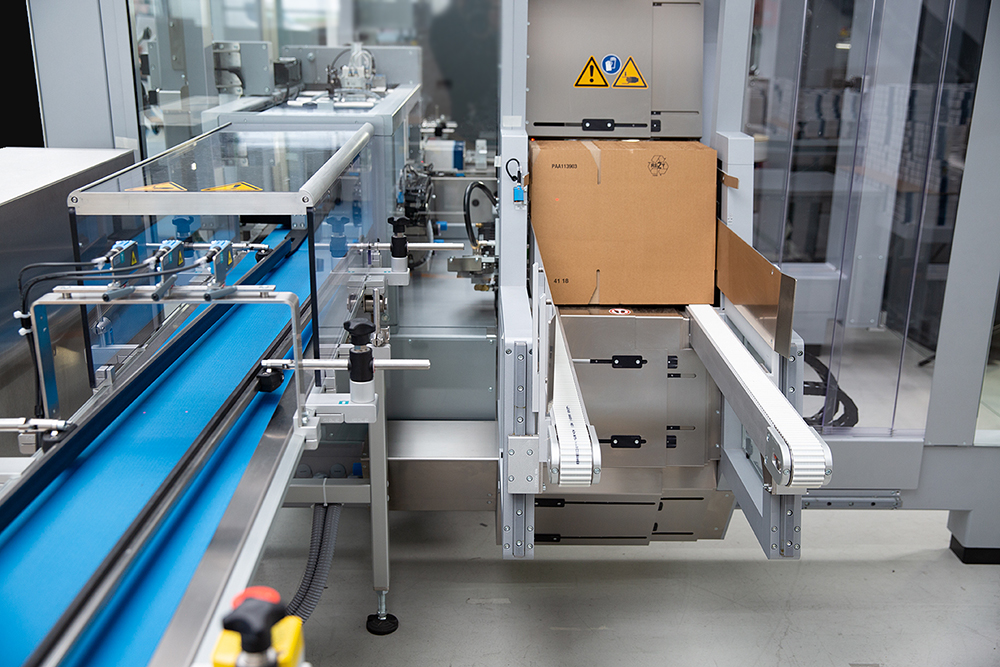

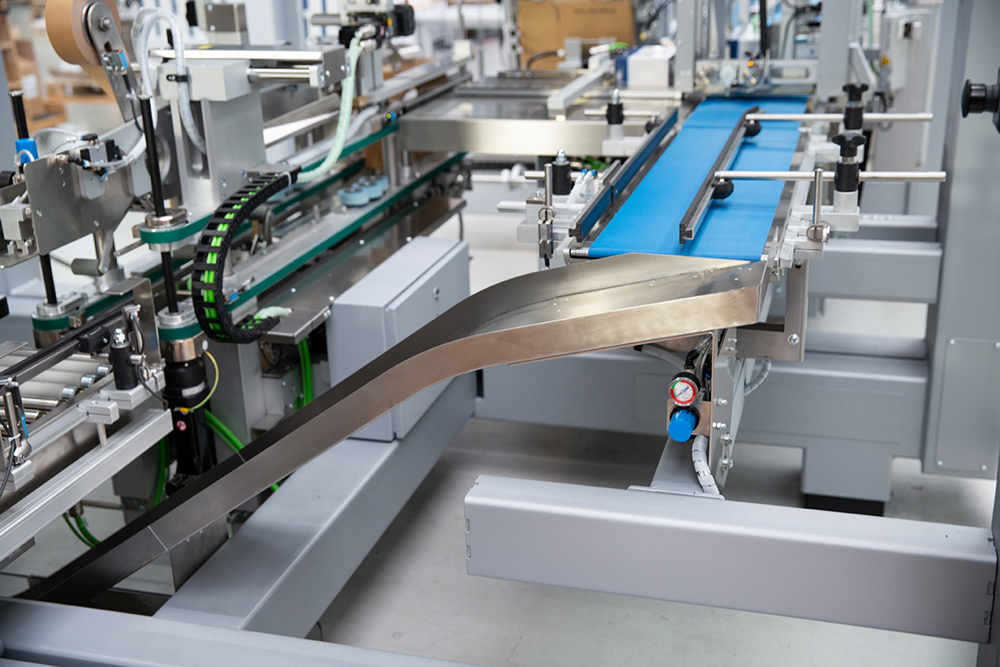

  • Reliable case handling with innovative case extraction via cascade system
  • Ergonomic and fail-safe – new case magazine with zero access standard and user-friendly hand wheel adjustment

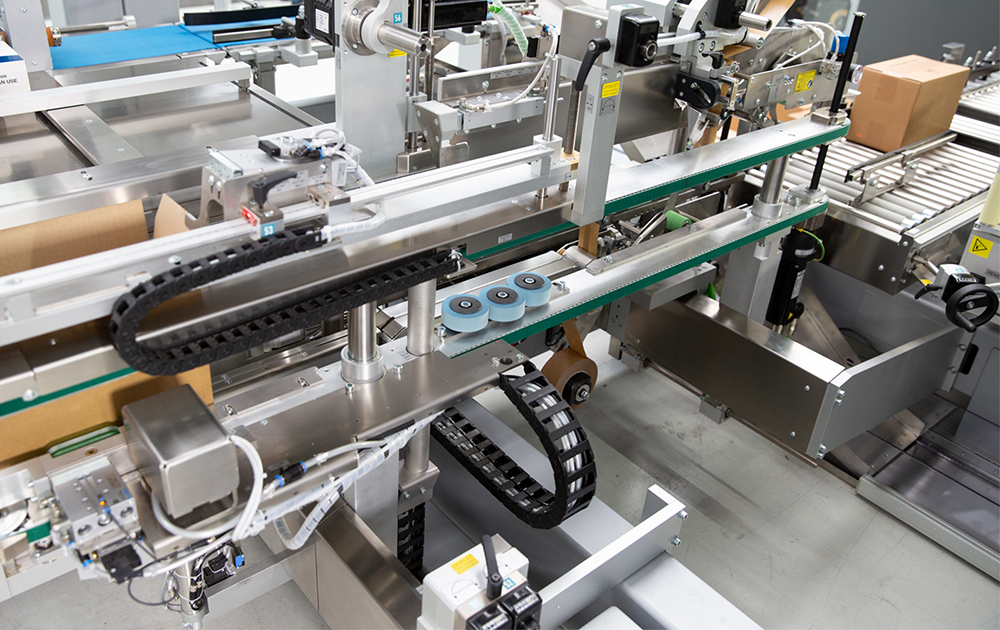

  • High-precision case transport by means of 4 servo-controlled toothed belts with lugs
  • Prepared for automatic format changeover
  • RFID format part detection on request
  • Simple, reproducible format changeover
  • New, intelligent safety concept
  • IPC (in-process control)
  • Prepared for connection to AGV systems
    • New Pharma Machine Generation

    Design & Quality

  • Clean, modern pharmaceutical design with white color scheme in RAL 9003
  • Rectilinear, large-scale and frameless design for an even higher quality appearance
    •
    Functionality

  • Noise reduction due to better shock-absorbing properties
  • IP54 conform
  • Separation of 24V / 400V circuit in the electrical cabinet
    •
    Sustainable & future-proof

  • Laminated safety glass: state-of-the-art material replaces plastic for safety guarding
  • Age-resistant materials of protective cover guarantees lifelong transparency
  • Digitalization and Design: upgrade of pester tangius 4.0 HMI operating concept
    •
    User friendly & easy to clean

  • Antistatic und easy to clean with any cleaning agent
  • case magazine – ergonomic hand wheel adjustment for format changeover – no sliding bar with scales needed anymore
    •
    Highest safety standards

  • case magazine: ultimate safety for operating personnel due to zero access guidelines
    •
    Machine dimensions6700 x 3370 x 2350 mm [L x W x H]
    Ceiling height3250 mm to allow for operating range of robot
    Case typeAmerican case
    Sealing methodtape / hotmelt glue
    Min. format rangeproduct 20 x 20 x 60 mm [L x W x H]
    case 230 x 230 x 170 mm [L x W x H]
    Max. format rangeproduct 440 x 200 x 250 mm [L x W x H]
    case 450 x 350 x 350 mm [L x W x H]
    Performanceup to 8 cases/min.
    Control systemSchneider Electric PacDrive 3 / Rockwell Automation (Allen-Bradley)
    Pallet size1200 x 800 mm - 1220 x 1016 mm (48" x 40")
    Max. palletizing height1400 mm (including pallet)
    x
    Layout
    Fact sheet

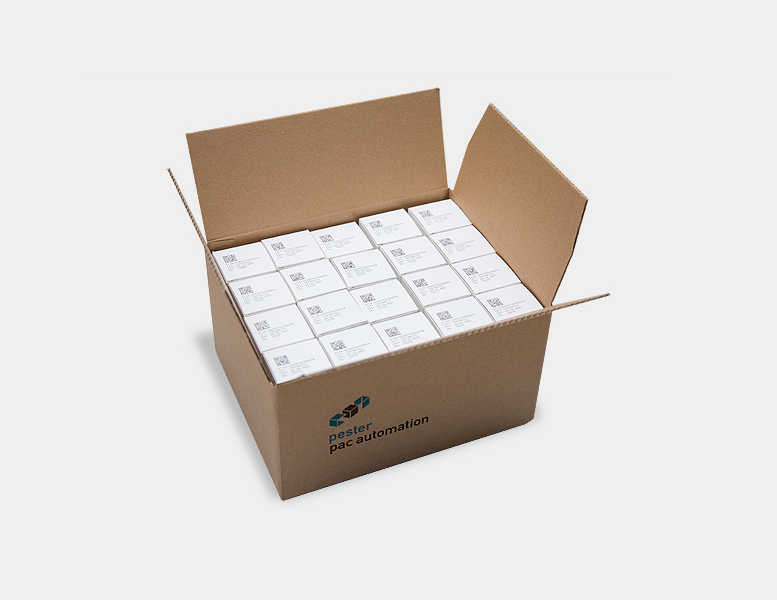

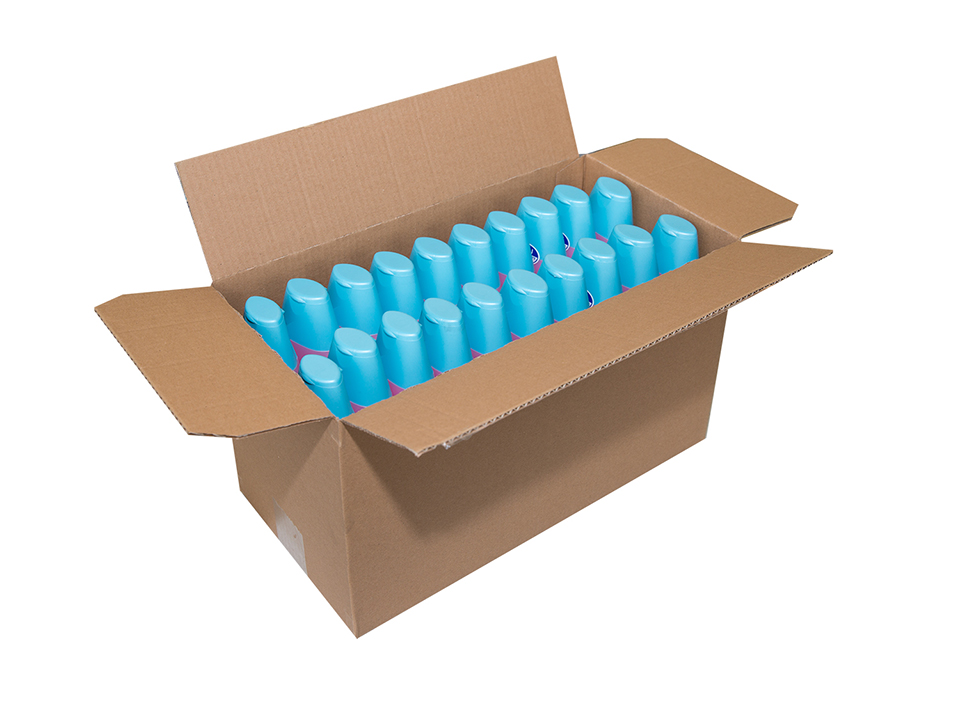

    Application
    Technology
    In Action
    Layout
    SYSTEM / DETAILS

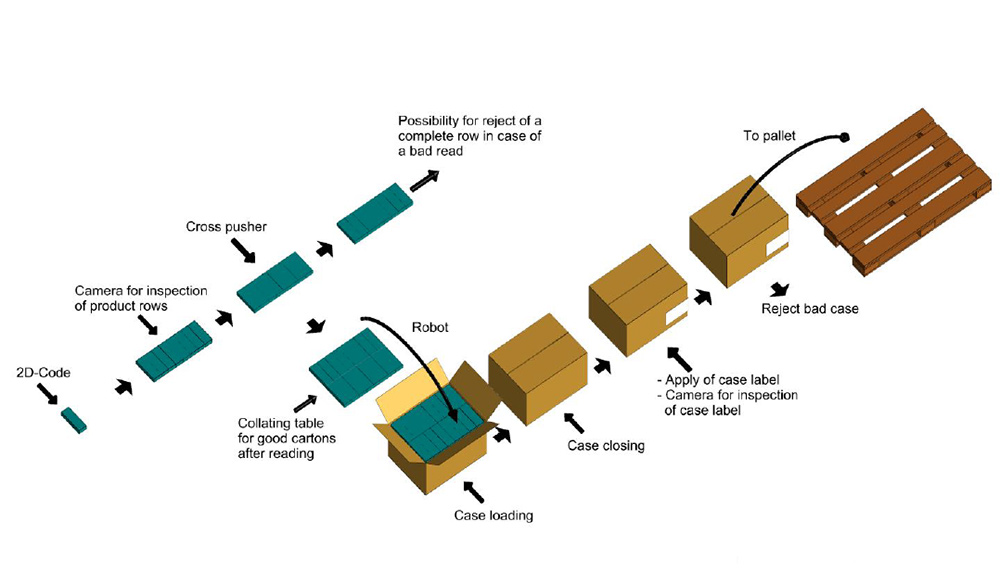

    Product flow TLP

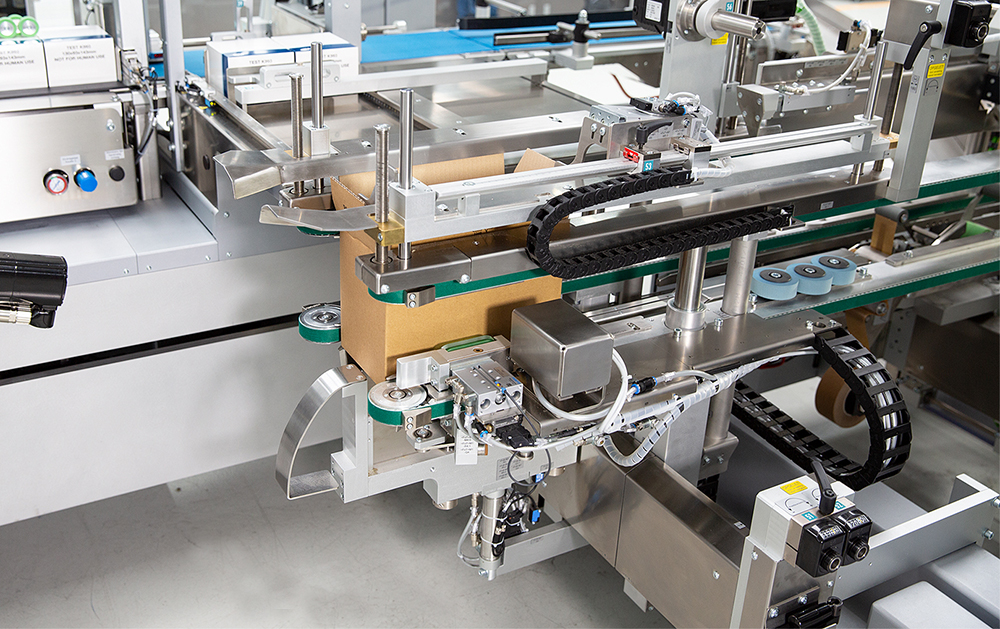

    Case errecting process

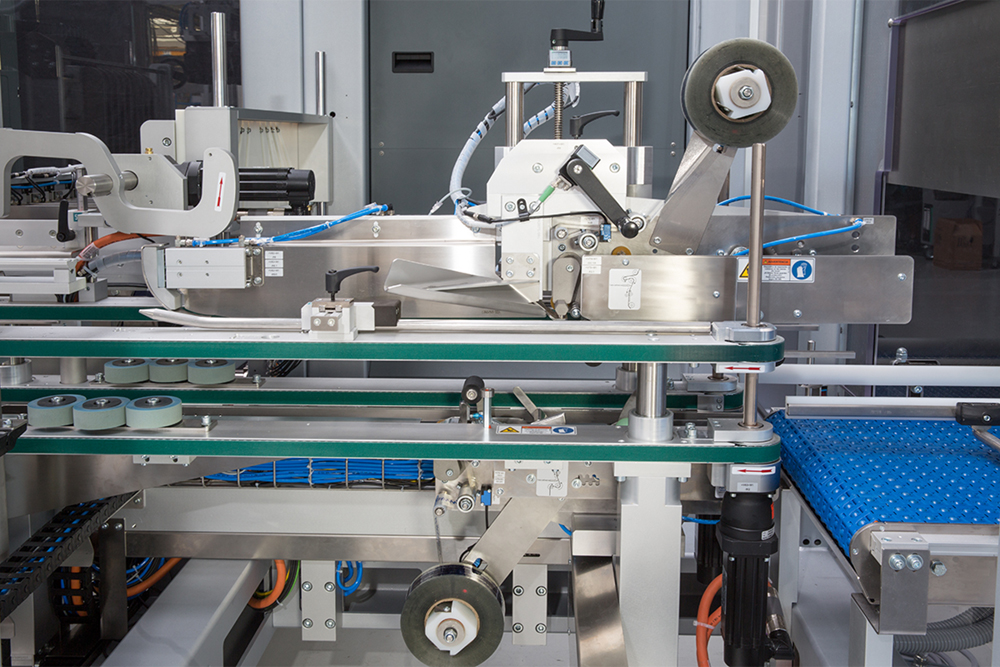

    Case closing process

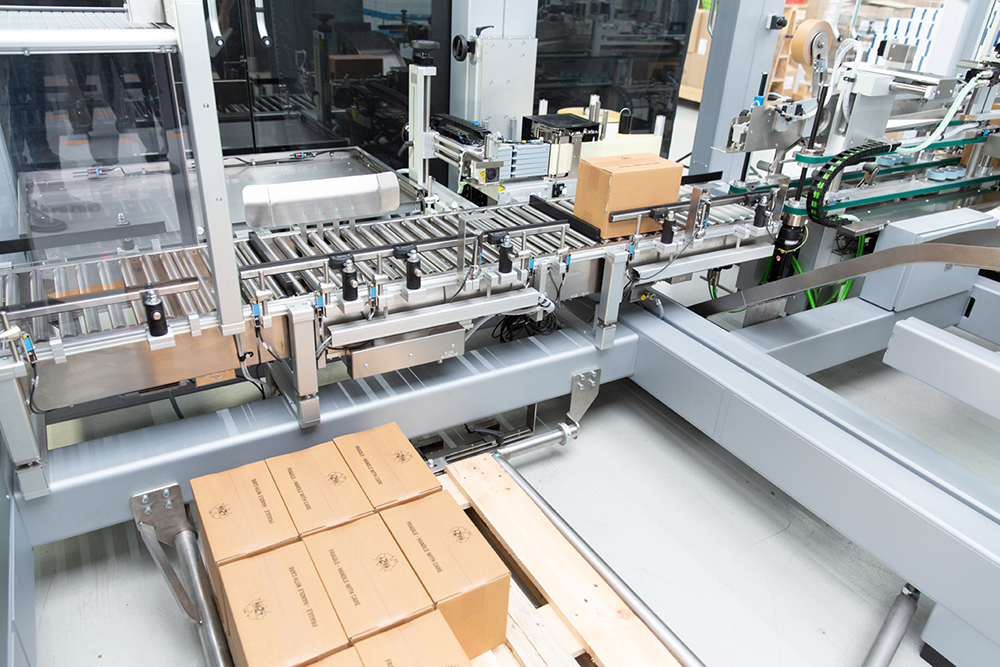

    Robot unit
    Tape Tape changing
    Multiple Track distributor 2 lane distributor 3 lane distributor 4 lane distributor
    pac robot C40 pac robot P15
    Technology Flyer Technical data
